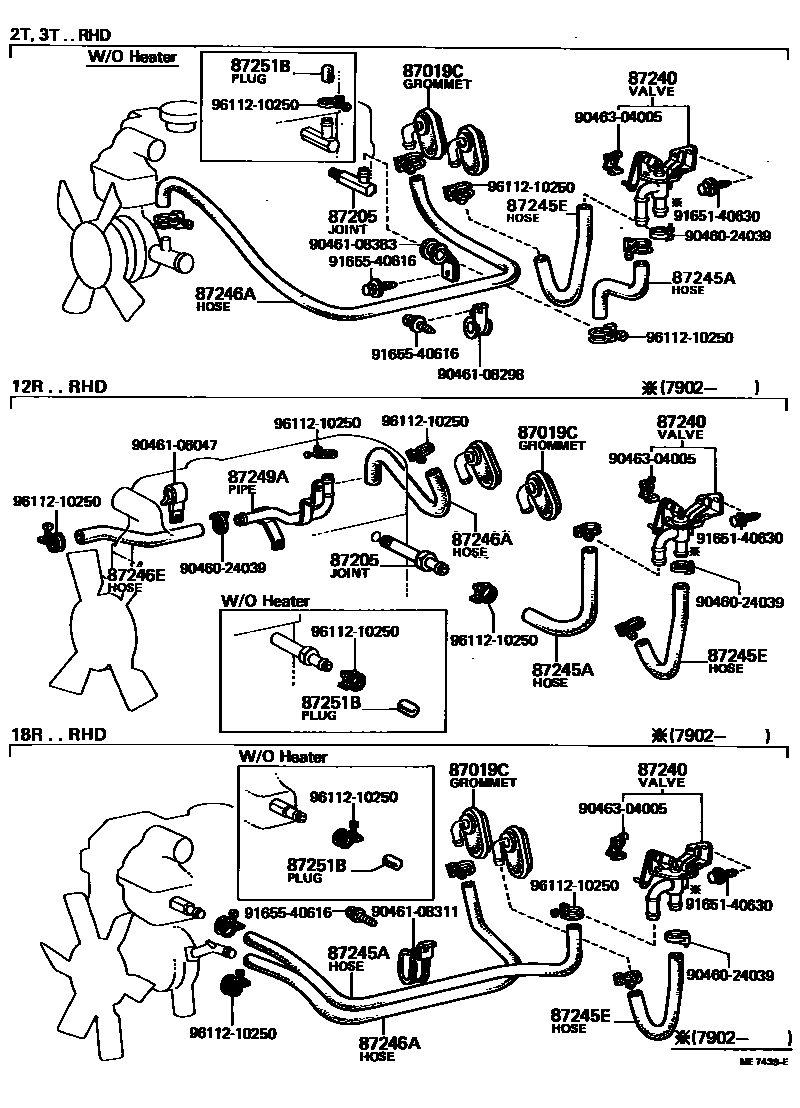

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-01015×2iRT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20090iRT130..GEN197809-197908

main87251-20100iTT13#197809-198112

87240VALVE ASSY, HEATER WATER

main87240-14070iRT13#,TT132..RHD197809-197902

main87240-20210iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

main87240-20240iRT13#,TT13#..RHD197902-198008

87245AHOSE, HEATER WATER, INLET A

main87209-20320iTT13#..LHD197809-198112

main87245-14390iTT13#..RHD197809-198112

main87245-14690iRT132..ARL197908-198108

main87245-20320iRT130..GEN197809-197908

main87245-20480iRT132..GEN198008-198205

main87245-20520iRT133198108-198301

main99552-30740iRT132..GEN197809-198008

L=740

87245EHOSE, HEATER WATER, INLET E

main87245-20400iRT13#,TT13#..RHD197809-198008

main99552-30055iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

L=55

87246AHOSE, HEATER WATER, OUTLET A

main87209-14481iRT133198108-198301

main87209-20330iRT130..RHD197809-197908

main87245-20420iTT13#..RHD197809-198112

main99552-30055iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

L=55

main99552-30700iRT132..ARL197908-198108

main99552-30940iRT132..RHD..GEN197809-198008

L=940

87246EHOSE, HEATER WATER, OUTLET E

main87245-14690iRT132..ARL197908-198108

main99552-30370iRT130..GEN197809-197908

L=370

main99552-30480iTT132..LHD197809-197905

L=480

main99552-30500iTT13#..LHD197905-198112

L=500

main99552-30660iRT132..LHD197809-198205

L=660

87249APIPE, HEATER WATER OUTLET, A

main87208-14130iRT133198108-198301

main87208-20081iRT130..LHD..GEN197809-197908

main87208-20090iRT132..LHD197809-198205

main87208-20100iTT13#..LHD197809-198112

main87208-20120iRT130..RHD197809-198008

main87248-14090iRT132..ARL197908-198108

87251BPLUG, HEATER WATER

main90339-16007×2iRT130,132,TT13#..EUR,GEN197809-198205

9046024039

main90460-24039

9046106047

main90461-06047

9046108298

main90461-08298

9046108311

main90461-08311

9046108383

main90461-08383

9046304005

main90463-04005

9165140630

main91651-40630

9165540616

main91655-40616

9611210250

main96112-10250

18 parts on this diagram · 3 diagrams in section
