WATER PUMP

Parts diagram

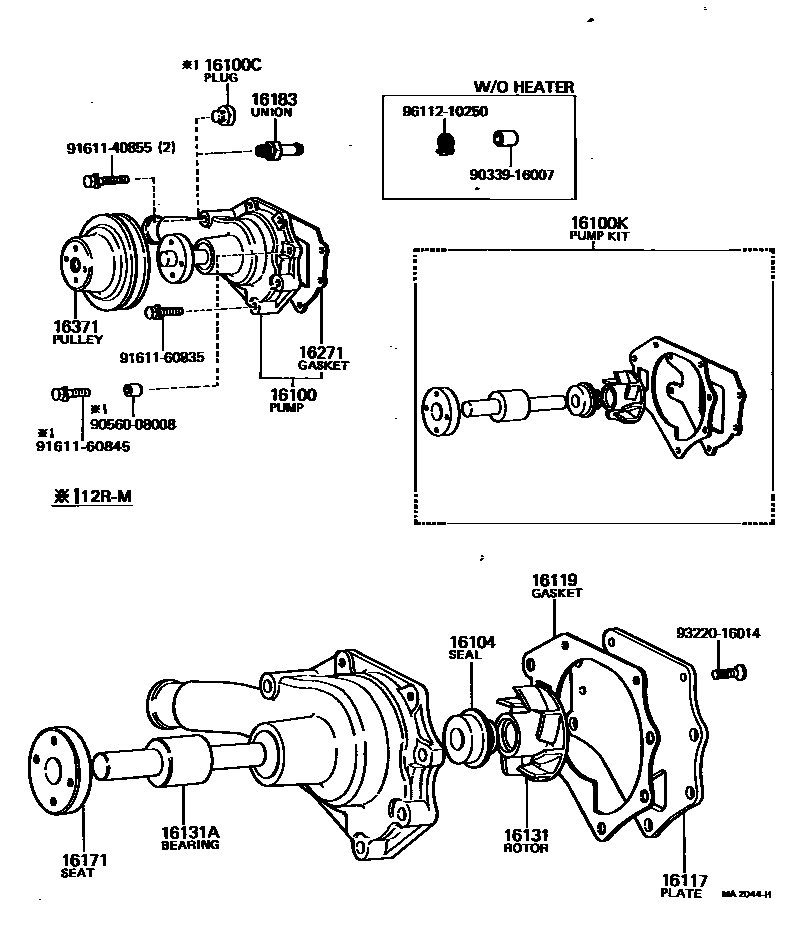

16100PUMP ASSY, ENGINE WATER

main16100-28020i197809-198112

main16100-39116i197809-198112

main16100-39236i197809-198205

16100CPLUG, W/HEAD TAPER SCREW

main90345-54002i197809-197901

main90345-54004i197901-198101

main90345-54005i198101-198112

16100KPUMP KIT, WATER

main04161-28010i197809-198112

main04161-31023i197809-198112

main04161-35020i198108-198301

16104SEAL SET, WATER PUMP

main16104-41110i197809-197911

main16104-41111i197809-198301

16117PLATE, WATER PUMP

main16117-31031i197809-198112

16119GASKET, WATER PUMP BODY

main16124-31031i197809-198112

16131ROTOR, WATER PUMP

main16131-26010i197809-198112

main16131-31031i197809-198112

main16131-35010i198108-198301

main16131-41110i197809-198205

16131ABEARING, WATER PUMP

main16140-38011i197809-198112

main90369-30003i197809-198112

WPB,16124 BR-1-R

main90369-30005i197809-198205

WPB 16112R-4RS

main90369-30011i198108-198301

16171SEAT, WATER PUMP PULLEY

main16171-24030i197809-198205

main16171-24031i197809-198112

main16171-26021i197809-198112

main16171-38022i198108-198301

16183UNION, WATER PUMP

main87251-30200i197809-197908

16271GASKET, WATER PUMP

main16129-25010i197809-197904

main16129-25011i197904-198112

main16271-31010i197809-198112

main16271-33010i197809-198205

16371PULLEY, FAN

main16173-28010i197809-198112

main16173-34100i197809-198205

main16173-38011i198108-198301

main16371-31022i197809-198112

main16371-32011i198101-198301

9033916007

main90339-16007

9056008008

main90560-08008

9161140855

main91611-40855

9161160835

main91611-60835

9161160845

main91611-60845

9322016014

main93220-16014

9611210250

main96112-10250

19 parts on this diagram · 4 diagrams in section
