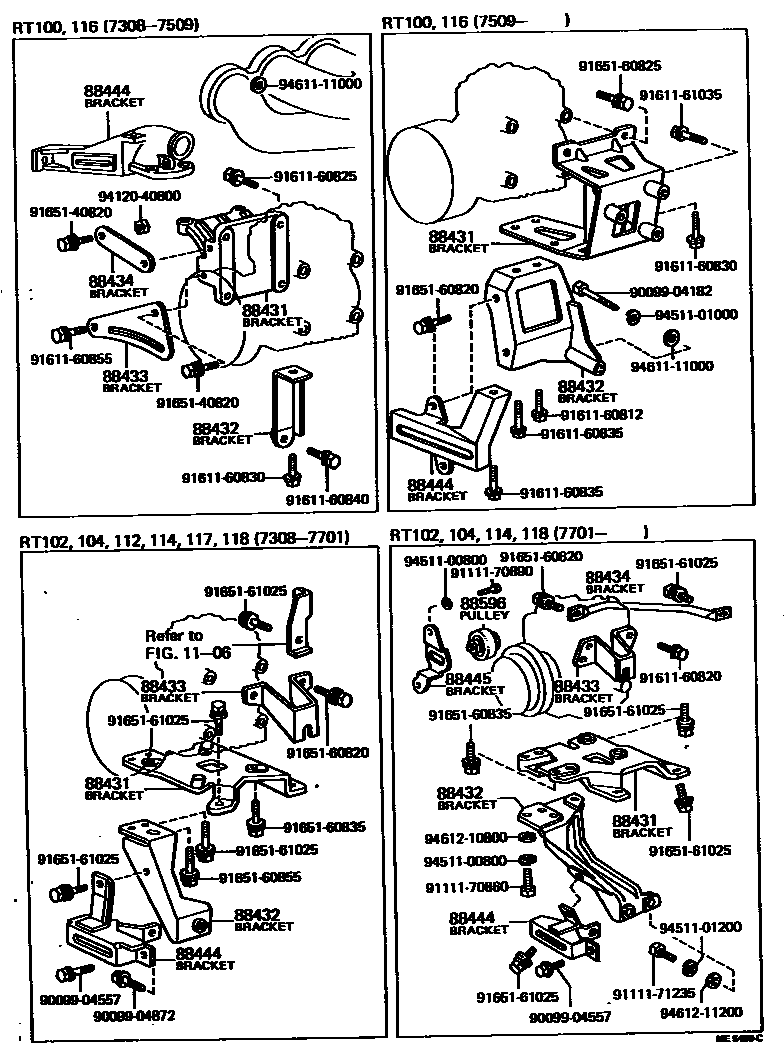

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20041iRT100,116197308-197509

main88431-20090iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197509-197701

main88431-20100iRT100,116..GEN197509-197808

main88431-20110iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

main88431-22021iRT102,104,112,114,117,118197308-197509

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88432-14010iRT102,104,112,114,117,118197308-197509

main88432-20041iRT100,116197308-197509

main88432-20060iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197509-197701

main88432-20070iRT100,116..GEN197509-197808

main88432-20080iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88433-20011iRT100,116197308-197509

main88433-20030iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197509-197701

main88433-22012iRT102,104,112,114,117,118197308-197509

main88434-20080iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-20051iRT100,116197308-197509

main88434-20090iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

88444BRACKET, IDLE PULLEY

main88444-20040iRT100,116197308-197509

main88444-20110iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197509-197701

main88444-20120iRT100,116..GEN197509-197808

main88444-22022iRT102,104,112,114,117,118197308-197509

main88444-22030iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

88445BRACKET, IDLE PULLEY

main88444-20140iRT102,104,114,118..ARL,GEN,SA197706-197905

88596PULLEY ASSY, IDLE, NO.2

main88440-20060iRT102,104,114,118..ARL,GEN,SA197706-197905

9009904182

main90099-04182

9009904557

main90099-04557

9009904872

main90099-04872

9111170860

main91111-70860

9111170890

main91111-70890

9111171235

main91111-71235

9161160812

main91611-60812

9161160820

main91611-60820

9161160825

main91611-60825

9161160830

main91611-60830

9161160835

main91611-60835

9161160840

main91611-60840

9161160855

main91611-60855

9161161035

main91611-61035

9165140820

main91651-40820

9165160820

main91651-60820

9165160825

main91651-60825

9165160835

main91651-60835

9165160855

main91651-60855

9165161025

main91651-61025

9412040800

main94120-40800

9451100800

main94511-00800

9451101000

main94511-01000

9451101200

main94511-01200

9461111000

main94611-11000

9461210800

main94612-10800

9461211200

main94612-11200
