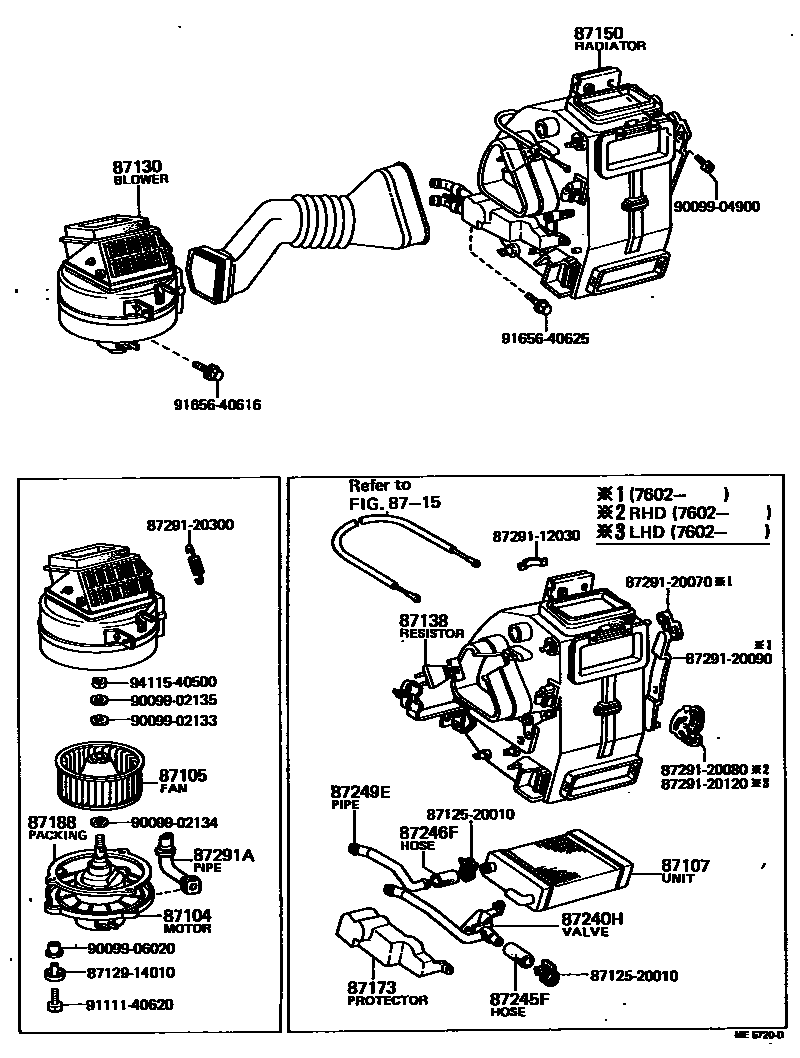

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-20100iRT10#,112,114,116,117,118..RHD197308-197701

main87104-20101iRT10#,11#..RHD197701-197905

main87104-20110iRT100,110..DLX..PHL197407-197701

BOOST VENTILATOR

main87104-20120iRT102,104,117,118..LHD..EUR197503-197808

HEAVY DUTY HEATER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20060iRT10#,112,114,116,117,118..RHD197308-197905

main87105-20070iRT100,110..DLX..PHL197407-197701

BOOST VENTILATOR

main87105-20080iRT102,104,117,118..LHD..EUR197503-197808

HEAVY DUTY HEATER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20170iRT10#,112,114,116,117,118..RHD197501-197509

main87107-20181iRT104,118..LHD..EUR197509-197701

HEAVY DUTY HEATER

main87107-20190iRT10#,112,116,117,118..LHD197501-197509

main87107-20210iRT100,104,11#..LHD197701-197905

87130BLOWER ASSY, HEATER, FRONT

main87130-20040iRT10#,112,114,116,117,118..RHD197308-197501

main87130-20041iRT10#,112,114,116,117,118..RHD197501-197509

main87130-20042iRT10#,114,116,118..RHD197509-197701

main87130-20050iRT10#,112,116,117,118..LHD197308-197501

main87130-20051iRT10#,112,116,117,118..LHD197501-197509

main87130-20052iRT100,110..DLX..PHL197407-197701

BOOST VENTILATOR

main87130-20060iRT102,104,117,118..LHD..EUR197503-197509

HEAVY DUTY HEATER

main87130-20061iRT104,118..LHD..EUR197509-197701

HEAVY DUTY HEATER

main87130-20070iRT10#,11#..RHD197701-197905

main87130-20080iRT100,104,11#..LHD197701-197905

main87130-20090iRT104,118..LHD..EUR197701-197808

HEAVY DUTY HEATER

87138RESISTOR, HEATER BLOWER

main87138-20030iRT10#,11#197308-197405

main87138-20031iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197405-197905

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-20020iRT10#,11#..RHD197308-197405

main87150-20021iRT10#,112,114,116,117,118..RHD197405-197411

main87150-20022iRT10#,112,114,116,117,118..RHD197411-197509

main87150-20050iRT100,102,112,116,117..LHD197308-197311

main87150-20051iRT10#,112,116,117,118..LHD197311-197411

main87150-20052iRT10#,112,116,117,118..LHD197411-197509

main87150-20090iRT10#,114,116,118..RHD197509-197602

main87150-20091iRT10#,114,116,118..RHD197602-197607

main87150-20100iRT100,104,114,116,118..LHD197509-197602

main87150-20101iRT100,104,114,116,118..LHD197602-197701

main87150-20120iRT104,118..LHD..EUR197509-197602

HEAVY DUTY HEATER

main87150-20121iRT104,118..LHD..EUR197512-197701

HEAVY DUTY HEATER

main87150-20130iRT10#,11#..RHD197701-197905

main87150-20170iRT100,104,11#..LHD197701-197905

main87150-20190iRT10#,114,116,118..RHD197607-197701

87173PROTECTOR, WATER VALVE, HEATER

main87114-20010iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

87188PACKING, HEATER BLOWER MOTOR

main87127-14010iRT100,104,11#..LHD197701-197905

main87127-30010iRT10#,11#..RHD197701-197905

main87291-30150iRT104,118..LHD..EUR197503-197701

HEAVY DUTY HEATER

87240HVALVE ASSY, WATER UNIT

main87240-20160iRT104,118..LHD..EUG; RT104,118..LHD..GEN197509-197510

main87240-20162iRT10#,114,116,118..ARL,EUR,GEN,SA197510-197602

main87240-20163iRT10#,11#..ARL,EUR,GEN,SA197701-197905

main87240-20190iRT104,118..LHD..EUR197509-197602

HEAVY DUTY HEATER

main87240-20191iRT104,118..LHD..EUR197602-197701

HEAVY DUTY HEATER

87245FHOSE, HEATER WATER, INLET F

main87126-20010iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

87246FHOSE, HEATER WATER, OUTLET F

main87126-20010iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87156-20060iRT10#,112,114,116,117,118197308-197509

main87248-20010iRT10#,114,116,118..ARL,EUR,GEN,SA197509-197905

87291APIPE, AIR

main87291-20130iRT10#,11#..RHD197708-197905

main87291-20140iRT100,104,114,118..LHD197708-197905

8712520010LOUVER, VENTILATION

main87125-20010

8712914010

main87129-14010

8729112030STAY, HEATER

main87291-12030

8729120070STAY, HEATER

main87291-20070

8729120080STAY, HEATER

main87291-20080

8729120090STAY, HEATER

main87291-20090

8729120120STAY, HEATER

main87291-20120

8729120300STAY, HEATER

main87291-20300

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009904900

main90099-04900

9009906020

main90099-06020

9111140620

main91111-40620

9165640616

main91656-40616

9165640625

main91656-40625

9411540500

main94115-40500
