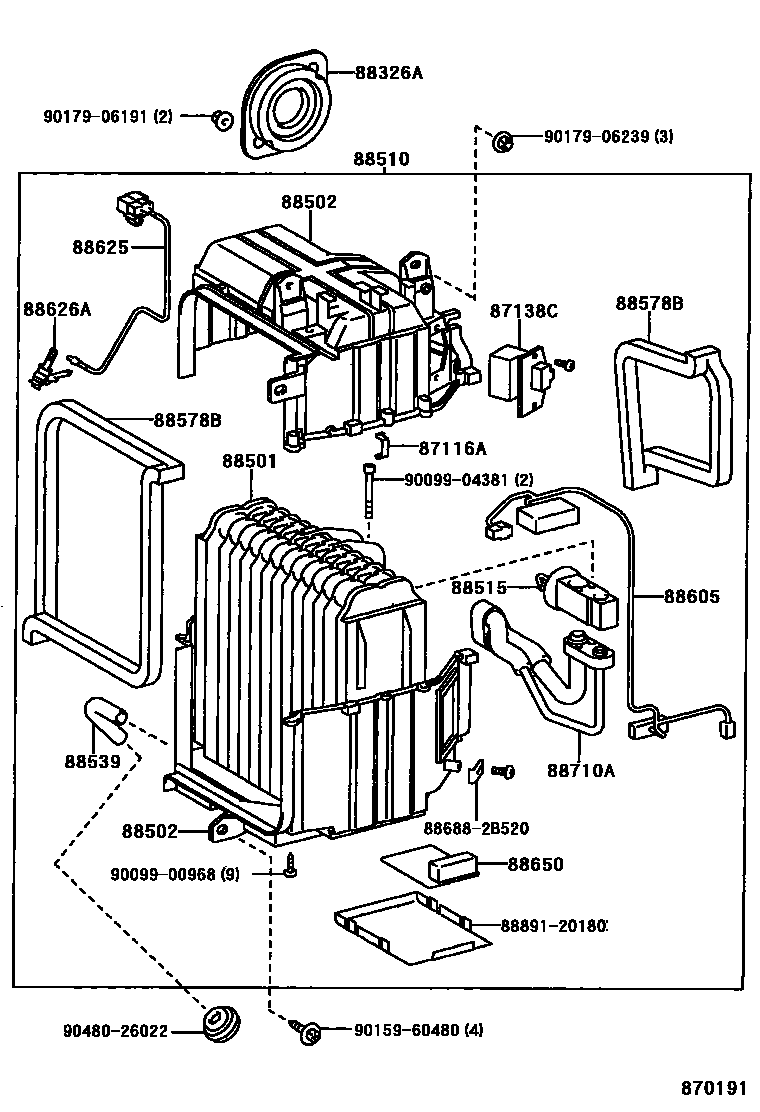

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iST20#199311

87138CRESISTOR, BLOWER

main87138-20180iST20#..RHD199311

main87138-20300iST202..LHD199311

88326APLATE, COVER

main88326-20050iST202199311

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20360iST202,204..RHD199311-199410

main88501-20361iST20#..RHD199410-199508

main88501-20380iST202..LHD199311-199410

main88501-20381iST202..LHD199410

main88501-20430iST20#..RHD199508

88502CASE SUB-ASSY, COOLING UNIT

main88502-20160iST202..RHD; ST204,205199311-199508

UPPER

main88502-20240iST202..RHD199311-199508

LOWER

main88502-20250iST202..LHD199311

UPPER

main88502-20260iST202..LHD199311

LOWER

main88502-20310iST20#..RHD199508

UPPER

main88502-20340iST20#..RHD199508

LOWER

88510UNIT ASSY, COOLER

main88510-2B380iST202..RHD199311-199508

main88510-2B390iST202..LHD199311

main88510-2B460iST204,205199311-199508

main88510-2B540iST202..RHD199508

main88510-2B600iST204199508

main88510-2B610iST205199508

88515VALVE, COOLER EXPANSION

main88515-20100iST204,205199311-199508

main88515-20120iST202199311-199508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20230iST202..RHD199311-199508

main88539-20250iST204,205199311

main88539-20260iST202..LHD199508

88578BPACKING, COOLING UNIT, NO.1

main88578-20460iST202,204199311-199410

FRONT

main88578-20470iST20#199311

REAR

main88578-20570iST205199402-199410

FRONT

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D290iST20#199311

88625THERMISTOR, COOLER, NO.1

main88625-20270iST202199311-199508

main88625-60050iST204,205199311-199508

88626AHOLDER, THERMISTOR

main88626-28010iST20#199311

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B280iST20#199311-199508

main88650-2B420iST202,204..RHD199508

88710ATUBE ASSY, AIR CONDITIONER

main88710-20490iST20#..RHD199311-199508

main88710-20510iST202..LHD199311

main88710-20580iST20#..RHD199508

886882B520BRACKET, COOLER DIAPHRAGM

main88688-2B520

8889120180PACKING (FOR COOLER)

main88891-20180

9009900968

main90099-00968

9009904381

main90099-04381

9015960480

main90159-60480

9017906191

main90179-06191

9017906239

main90179-06239

9048026022

main90480-26022

22 parts on this diagram · 3 diagrams in section
