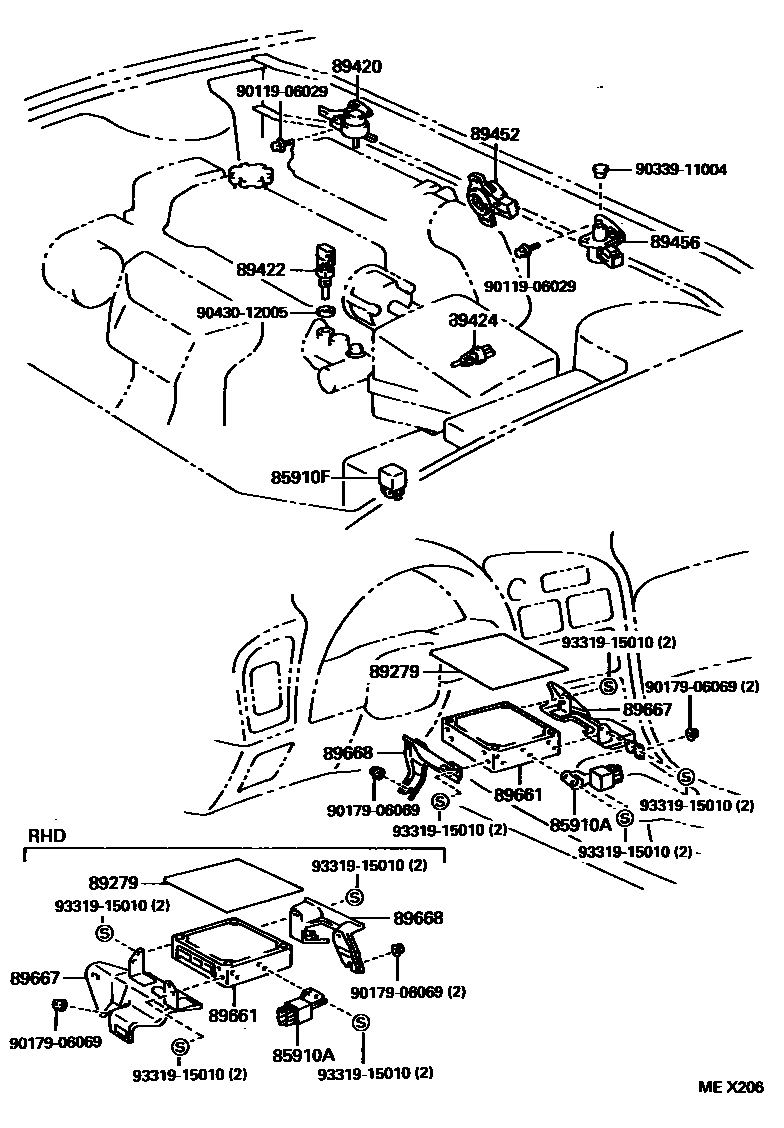

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-20040iST20#..RHD199311

main85910-20050iST202..LHD199311

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iST20#199311

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iST20#199311

89420SENSOR ASSY, VACUUM

main89420-0W040iST202,204199608

(L)

main89420-20300iST202,204199311-199608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iST20#199311-199908

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iST20#199311

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iST20#199311

89456RESISTOR, VARIABLE

main89450-20020iST202199311

89661COMPUTER, ENGINE CONTROL

main89661-2B710iST202199311-199508

main89661-2B850iST205199402

main89661-2B860iST204..MTM199311-199712

main89661-2B870iST204..ATM199311-199712

main89661-2D400iST202199508

main89661-2G050iST204..MTM199712

main89661-2G060iST204..ATM199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20320iST20#..RHD199311

main89667-20340iST202..LHD199311

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20300iST20#..RHD199311

main89668-20310iST202..LHD199311

9011906029

main90119-06029

9017906069

main90179-06069

9033911004

main90339-11004

9043012005

main90430-12005

9331915010

main93319-15010

16 parts on this diagram · 3 diagrams in section
