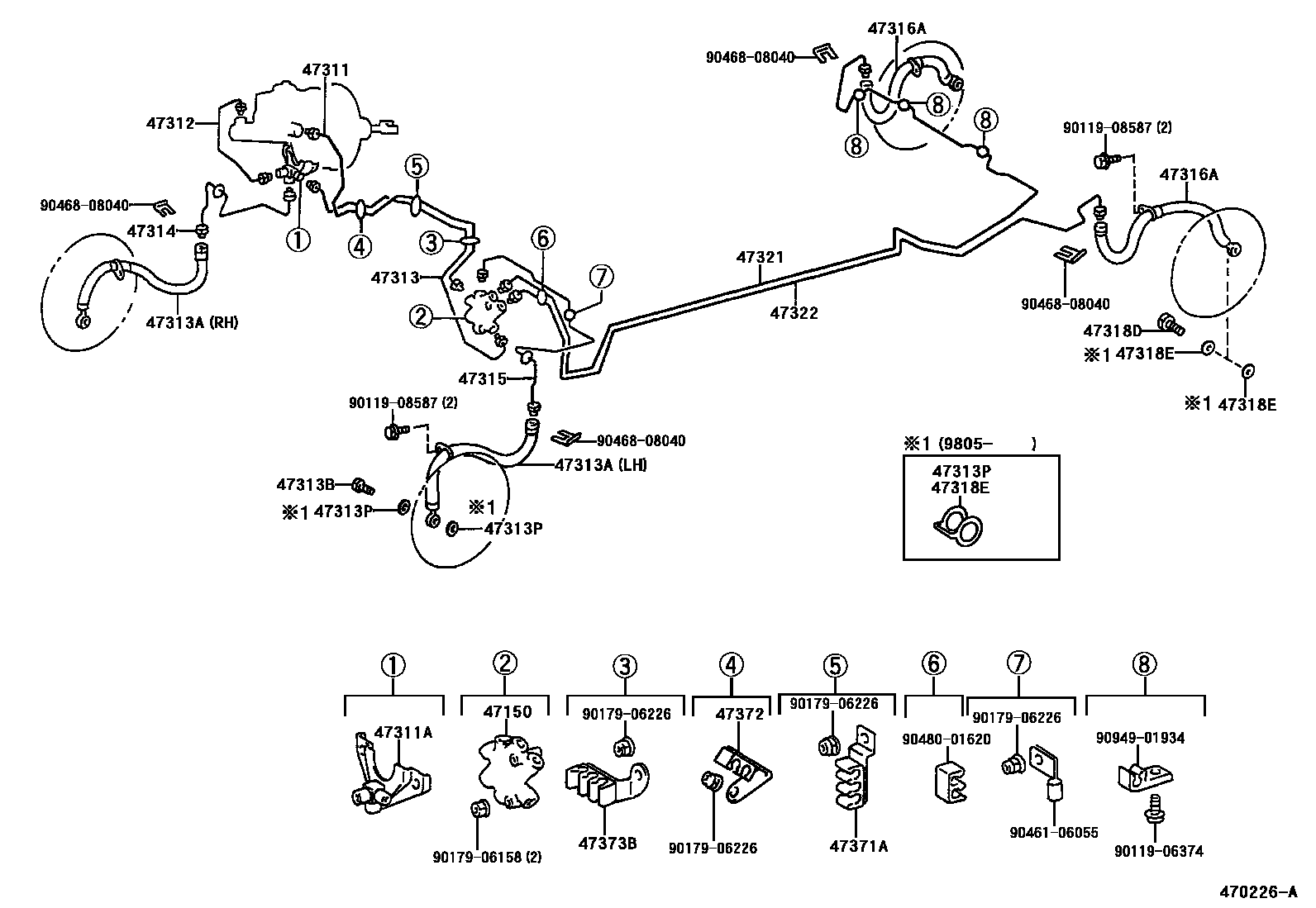

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-16050iST202,204..RHD199412

main47150-20240iST202,204..RHD199412

W(ABS)

main47150-20250iST205199412

main47150-20300iST202..LHD199311-199407

main47150-20330iST202,204..RHD199311-199412

main47150-20380iST202,204..RHD199311-199412

W(ABS)

main47150-20390iST205199402-199412

main47150-20410iST202..LHD199311-199412

W(ABS)

main47150-32100iST202..LHD199412

47311TUBE, FRONT BRAKE, NO.1

main47311-2B080iST202,204..RHD199311

main47311-2B090iST202..LHD199311

main47311-2B100iST20#..RHD199311-199606

W(ABS)

main47311-2B110iST202..LHD199311-199606

W(ABS)

main47311-2B140iST20#..RHD199606

W(ABS)

main47311-2B170iST202..LHD199606

W(ABS)

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10171iST202,204..RHD199311

47312TUBE, FRONT BRAKE, NO.2

main47311-2B120iST202..LHD199311

main47312-20320iST202,204..RHD199503

main47312-20340iST202,204..RHD199311-199503

47313TUBE, FRONT BRAKE, NO.3

main47313-20690iST202,204..RHD199311

main47313-20700iST202..LHD199311

main47313-20710iST20#..RHD199311-199606

W(ABS)

main47313-20720iST202..LHD199311-199606

W(ABS)

main47313-20740iST20#..RHD199606

W(ABS)

main47313-20770iST202..LHD199606

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02761iST202,204199311-199508

RH

main90947-02762iST202,204199311-199508

LH

main90947-02765iST205199402-199508

RH

main90947-02768iST205199402-199508

LH

main90947-02845iST205199508

RH

main90947-02846iST205199508

LH

main90947-02847iST202,204199508

RH

main90947-02848iST202,204199508

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iST202,204199311-199503

main90401-10042×2iST205199402-199503

main90401-10058×2iST20#199503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iST20#199311-199508

main47389-50020×2iST20#199508

47314TUBE, FRONT BRAKE, NO.4

main47314-20580iST202,204..RHD199311

main47314-20590iST202..LHD199311

main47314-20600iST20#..RHD199311-199606

W(ABS)

main47314-20610iST202..LHD199311-199606

W(ABS)

main47314-20630iST20#..RHD199606

W(ABS)

main47314-20650iST202..LHD199606

W(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-20630iST202,204..RHD199311

main47315-20640iST202..LHD199311

main47315-20650iST20#..RHD199311

W(ABS)

47316TUBE, FRONT BRAKE, NO.6

main47316-20550iST20#..RHD199311-199606

main47316-20560iST202..LHD199311-199606

main47316-20580iST20#..RHD199606

main47316-20590iST202..LHD199606

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02769×2iST202,204199311-199508

main90947-02852×2iST202,204199508

47318TUBE, FRONT BRAKE, NO.8

main47318-20330iST20#..RHD199311-199606

main47318-20340iST202..LHD199311-199606

W(ABS)

main47318-20350iST202..LHD199311

main47318-20370iST20#..RHD199606

main47318-20390iST202..LHD199606

W(ABS)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iST202,204199311-199503

main90401-10042×2iST205199402-199503

main90401-10058×2iST20#199503

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iST20#199311-199508

main47389-50020×2iST20#199508

47321TUBE, REAR BRAKE, NO.1

main47321-20380iST202,204199311

main47321-20390iST205199402

47322TUBE, REAR BRAKE, NO.2

main47322-20490iST202,204199311

main47322-20500iST205199402

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20440iST20#199311-199606

W(ABS)

main47371-20480iST20#..RHD199606

W(ABS)

main47371-20490iST202,204..RHD199311

main47371-20530iST202..LHD199311

47372CLAMP, BRAKE TUBE, NO.2

main47371-20450iST20#..RHD199311-199606

W(ABS)

main47371-20510iST202,204..RHD199311

main47371-20550iST202..LHD199311-199606

main47371-20560iST20#..RHD199606

W(ABS)

main47371-20630iST202..LHD199606

47373BCLAMP, BRAKE TUBE, NO.3

main47371-20480iST20#..RHD199311-199606

W(ABS)

main47371-20520iST202,204..RHD199311

main47371-20540iST202..LHD199311

main47371-20570iST20#..RHD199606

W(ABS)

9011906374

main90119-06374

9011908587

main90119-08587

9017906158

main90179-06158

9017906226

main90179-06226

9046106055

main90461-06055

9046808040

main90468-08040

9048001620

main90480-01620

9094901934

main90949-01934
