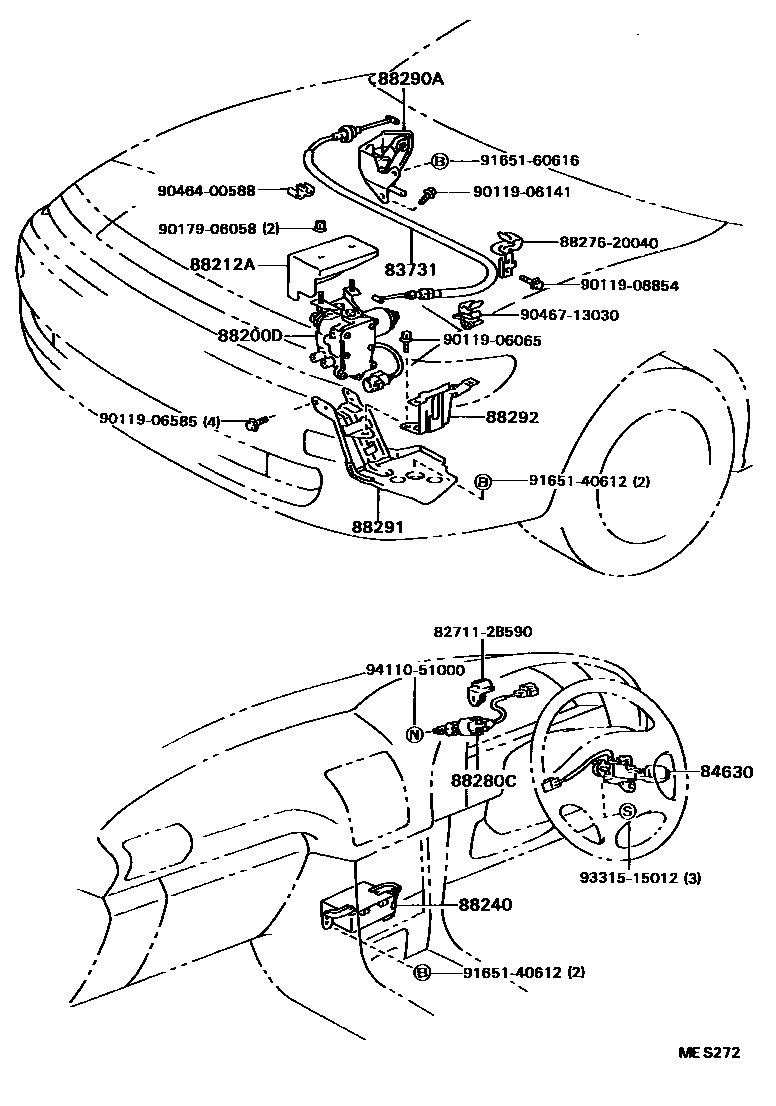

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-20100iST185199202-199311

main83731-20110iST184199108-199311

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20110iST184;ST185..TBO4W199108-199311

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20120iST184199108-199311

main88200-20130iST185199202-199311

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-20040iST184;ST185..TBO4W199108-199311

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20410iST184199108-199311

main88240-20420iST185199202-199311

88280CSWITCH ASSY, CLUTCH

main88280-20021iST185199008-199108

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-20030iST184;ST185..TBO4W199108-199311

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-20080iST185199202-199311

main88291-20090iST184199108-199311

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-20040iST184199108-199311

827112B590WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B590

8827620040

main88276-20040

9011906065

main90119-06065

9011906141

main90119-06141

9011906585

main90119-06585

9011908854

main90119-08854

9017906058

main90179-06058

9046400588

main90464-00588

9046713030

main90467-13030

9165140612

main91651-40612

9165160616

main91651-60616

9331515012

main93315-15012

9411051000

main94110-51000

22 parts on this diagram · 2 diagrams in section
