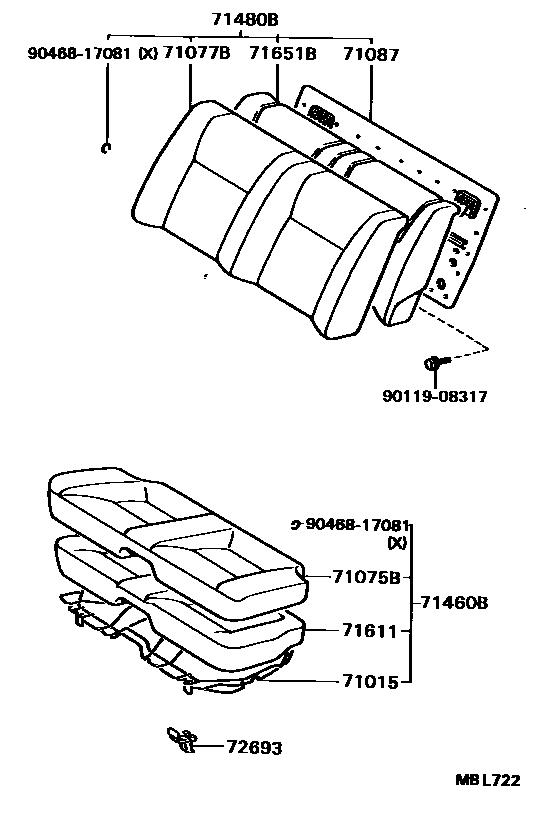

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iAT160,ST162198708-198908

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20491-04iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71065-20491-05iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#

main71065-20491-13iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#

main71065-20541-01iAT160..CBR198708-198908

BLACK,TRIM2#

main71065-20541-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

main71065-20541-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

main71065-20551-04iAT160..TWC198708-198908

DEEP BLUE,TRIM8#

main71065-20551-05iAT160..TWC198708-198908

DARK BEIGE,TRIM4#

main71065-20551-13iAT160..TWC198708-198908

GRAY,TRIM2#

main71065-20671-01iST162..ST198708-198908

BLACK,TRIM2#

main71065-20671-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

main71065-20671-05iST162..ST198708-198908

DARK BEIGE,TRIM4#

main71065-20680-04iST162..SX198708-198908

DEEP BLUE,TRIM8#

main71065-20680-05iST162..SX198708-198908

DARK BEIGE,TRIM4#

main71065-20680-13iST162..SX198708-198908

GRAY,TRIM2#

main71065-20690-04iST162..SX198708-198908

W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71065-20690-05iST162..SX198708-198908

W(SPORTS SEAT),DARK BEIGE,TRIM4#

main71065-20690-13iST162..SX198708-198908

W(SPORTS SEAT),GRAY,TRIM2#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-2B721-01iAT160,ST162..CP..ST198708-198908

BLACK,TRIM2#

main71077-2B721-04iAT160,ST162..CP..ST198708-198908

DEEP BLUE,TRIM8#

main71077-2B721-05iAT160,ST162..CP..ST198708-198908

DARK BEIGE,TRIM4#

71087BOARD SUB-ASSY, REAR SEATBACK

main71087-20010iAT160,ST162..CP..ST198708-198908

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20381-01iAT160..CBR198708-198908

BLACK,TRIM2#

main71560-20381-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

main71560-20381-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

main71560-20471-04iAT160..TWC198708-198908

DEEP BLUE,TRIM8#

main71560-20471-05iAT160..TWC198708-198908

DARK BEIGE,TRIM4#

main71560-20471-13iAT160..TWC198708-198908

GRAY,TRIM2#

main71560-20481-04iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71560-20481-05iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#

main71560-20481-13iAT160..LHD..TWC; AT160..RHD; ST162..ME198708-198908

GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#

main71560-20631-01iST162..ST198708-198908

BLACK,TRIM2#

main71560-20631-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

main71560-20631-05iST162..ST198708-198908

DARK BEIGE,TRIM4#

main71560-20640-04iST162..SX198708-198908

DEEP BLUE,TRIM8#

main71560-20640-05iST162..SX198708-198908

DARK BEIGE,TRIM4#

main71560-20640-13iST162..SX198708-198908

GRAY,TRIM2#

main71560-20650-04iST162..SX198708-198908

W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71560-20650-05iST162..SX198708-198908

W(SPORTS SEAT),DARK BEIGE,TRIM4#

main71560-20650-13iST162..SX198708-198908

W(SPORTS SEAT),GRAY,TRIM2#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-2B611-01iAT160,ST162..CP..ST198708-198908

BLACK,TRIM2#

main71480-2B611-04iAT160,ST162..CP..ST198708-198908

DEEP BLUE,TRIM8#

main71480-2B611-05iAT160,ST162..CP..ST198708-198908

DARK BEIGE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71611-20340iAT160,ST162198708-198908

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-20370iAT160,ST162..CP..ST198708-198908

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iAT160,ST162198708-198908

9011908317

main90119-08317

9046817081

main90468-17081

11 parts on this diagram · 3 diagrams in section
