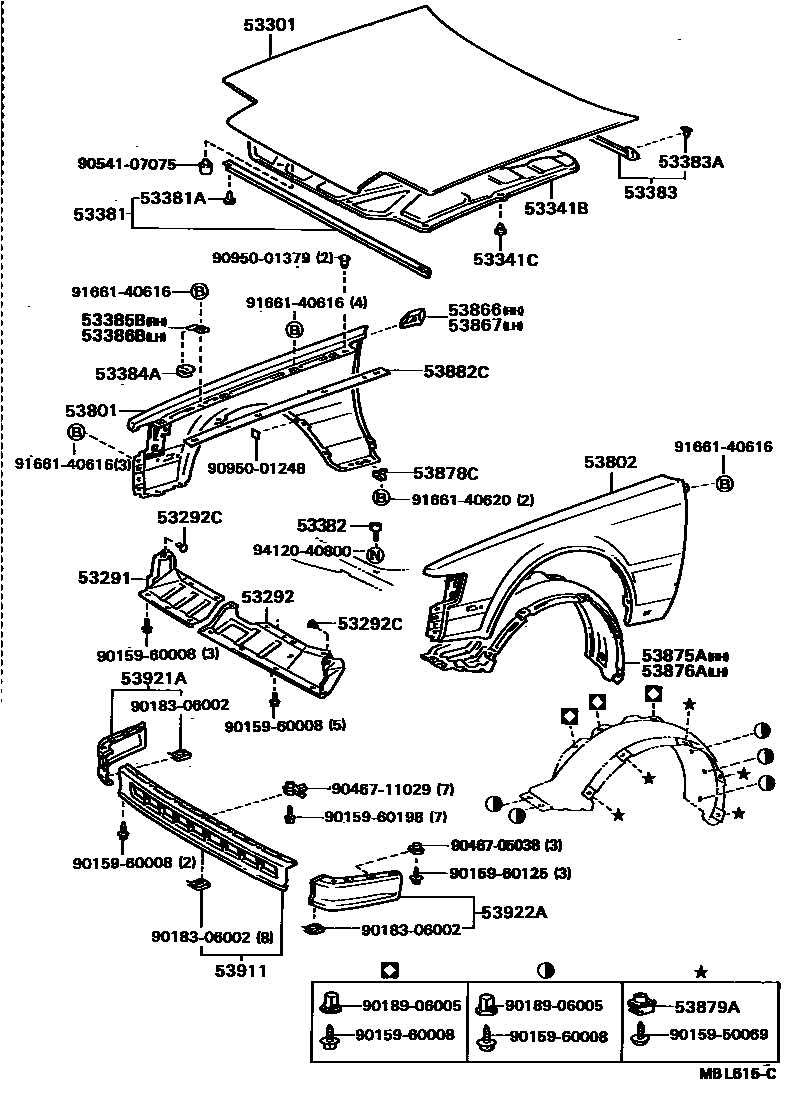

HOOD & FRONT FENDER
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
53292CCLIP, RADIATOR SUPPORT TO FRAME
BLACK,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920; BLACK,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
BLACK,TRIM2#,4#,8#
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382BUMPER, HOOD, FRONT
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882CSEAL, FRONT FENDER MAIN
53911PANEL, FRONT VALANCE
53921APANEL, FRONT VALANCE, RH
53922APANEL, FRONT VALANCE, LH
9015950069
main90159-50069
9015960008
main90159-60008
9015960125
main90159-60125
9015960198
main90159-60198
9018306002
main90183-06002
9018906005
main90189-06005
9046705038
main90467-05038
9046711029
main90467-11029
9054107075
main90541-07075
9095001248
main90950-01248
9095001379
main90950-01379
9166140616
main91661-40616
9166140620
main91661-40620
9412040800
main94120-40800
40 parts on this diagram · 1 diagram in section
