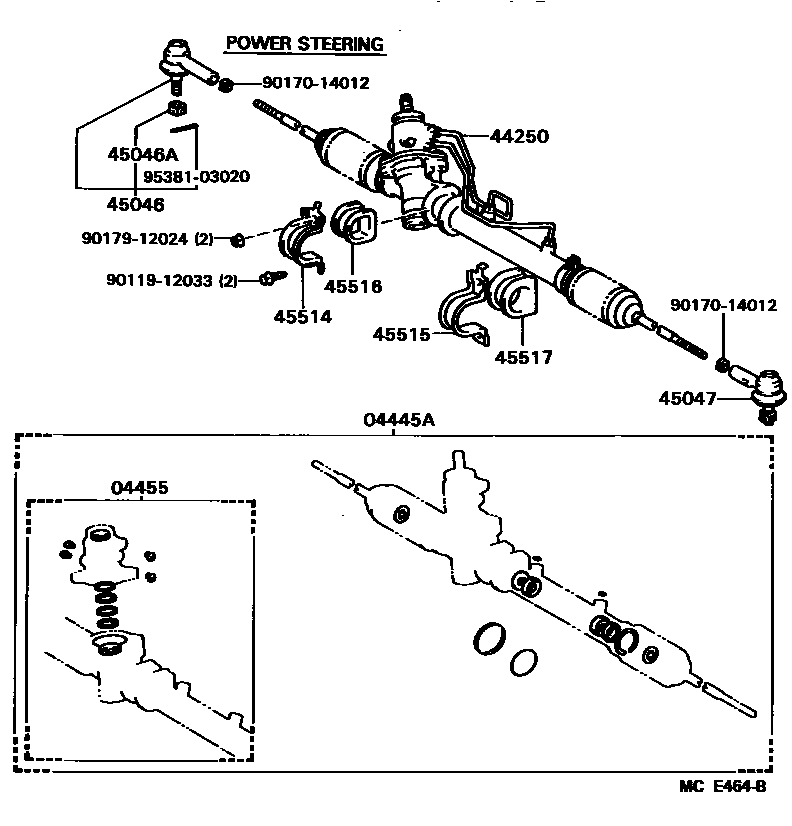

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iAT160,ST162198708-198908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iAT160,ST162198708-198908

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20090iST162..ARL198708-198908

main44250-20100iAT160..CBR; ST162..ME198708-198908

main44250-20110iAT160..RHD198708-198908

main44250-20120iAT160..LHD..TWC198708-198908

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAT160,ST162198708-198908

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT160,ST162198708-198908

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAT160,ST162198708-198908

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-20010iAT160,ST162198805-198908

45515BRACKET, STEERING RACK HOUSING, NO.2

main45506-12010iAT160..CBR198708-198908

main45515-20030iAT160,ST162..TWC198708-198908

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iAT160,ST162198708-198908

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12050iAT160..CBR198708-198908

main45517-12060iAT160,ST162..TWC; AT160..CBR198708-198908

W(POWER STEERING)

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 3 diagrams in section
