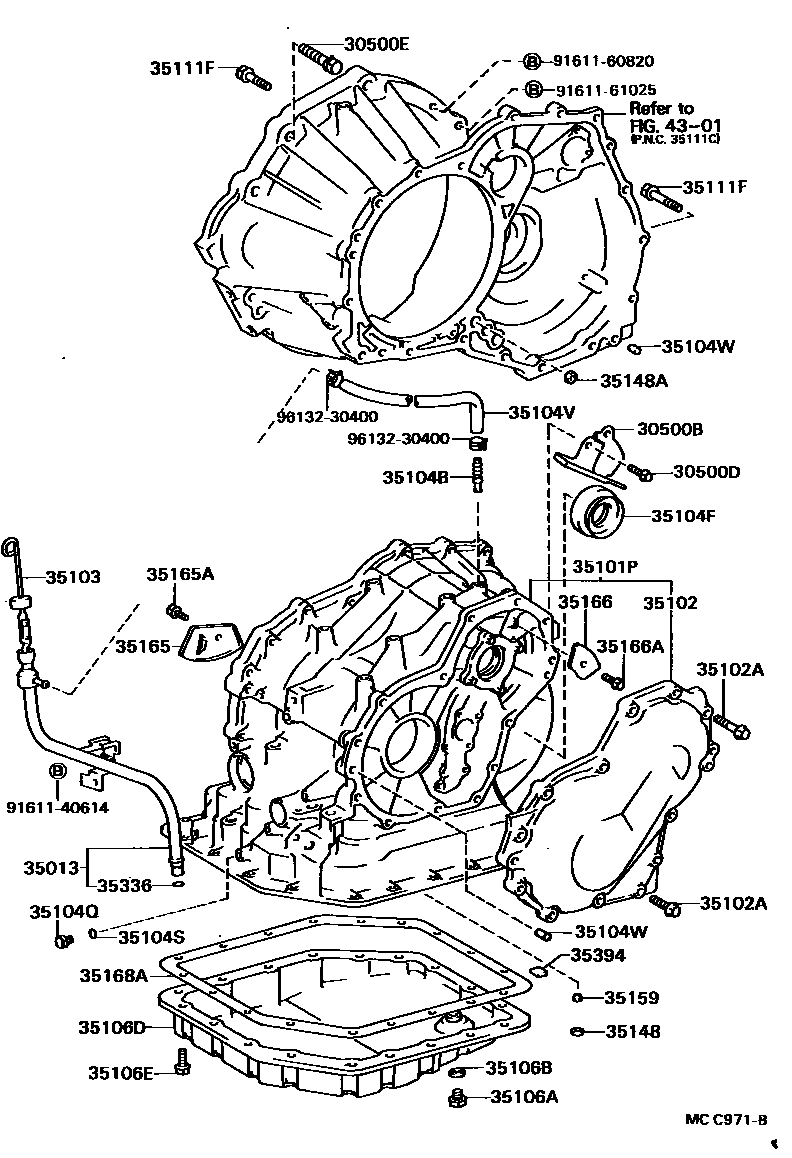

TRANSMISSION CASE & OIL PAN (ATM)
30500BPROTECTOR, TRANSAXLE CASE
30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)
*8-1.25PX18-15
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*8-1.25PX18-15,*8-1.25PX18-15
*10-1.25PX43-26,*10-1.25PX43-26
*12-1.25PX55-30,*12-1.25PX55-30
*12-1.25PX45-30,*12-1.25PX45-30
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35101PCASE & COVER SUB-ASSY, TRANSAXLE
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX45-35
*8-1.25PX35-30
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
W/OIL COOLER
35104BPLUG, BREATHER, NO.1 (ATM)
35104FSEAL, OIL (FOR TRANSAXLE CASE)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104VHOSE (FOR BREATHER PLUG)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-35,*8-1.25PX45-30
*8-1.25PX72-30,*8-1.25PX30-25
*8-1.25PX35-30,*8-1.25PX38-30
*8-1.25PX30-25,*8-1.25PX72-30
35148GASKET, GOVERNOR APPLY, NO.1
35148AGASKET, GOVERNOR APPLY, NO.2
35159GASKET, BRAKE DRUM
35165PLATE, TRANSMISSION CASE, NO.1
35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)
35166PLATE, TRANSMISSION CASE, NO.3
35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301FRONT AXLE HOUSING & DIFFERENTIAL
9161140614
main91611-40614
9161160820
main91611-60820
9161161025
main91611-61025
9613230400
main96132-30400
34 parts on this diagram · 2 diagrams in section
