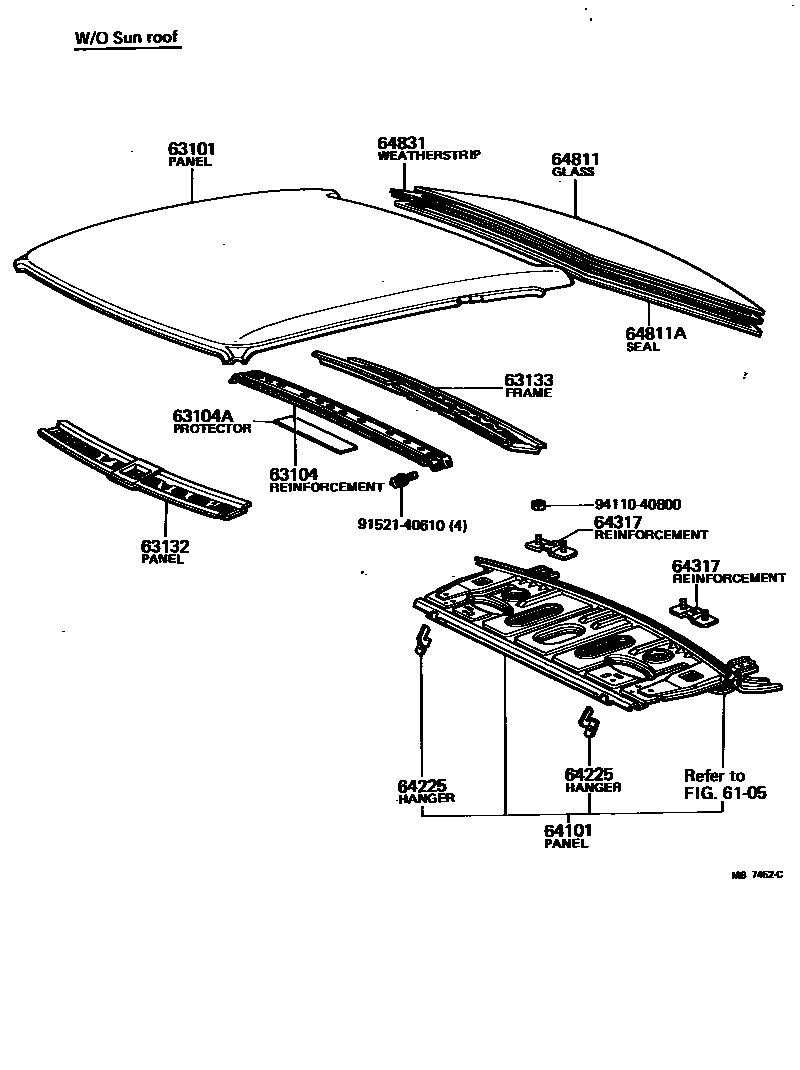

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63101PANEL SUB-ASSY, ROOF

main63111-14060iRA40,TA40..CP197708-198107

main63111-14070iRA40,TA40..LB197708-198107

main63111-14080iRA40,TA40..LB197711-198107

W/SUN ROOF

main63111-14100iRA40,TA40..CP197711-198107

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-14050iRA40,TA40197708-198107

main63142-14010iRA40,TA40197711-198107

W/SUN ROOF

63104APROTECTOR, ROOF REINFORCEMENT

main63331-14010iTA40..CP..LHD..(LT,ST)..EUG197708-198107

WEST GERMANY SPEC

63132PANEL, WINDSHIELD HEADER, INNER

main63132-14050iRA40,TA40197708-198107

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-14020iRA40,TA40..LB197708-198107

main63133-14060iRA40,TA40..CP197708-198107

64101PANEL SUB-ASSY, UPPER BACK

main64101-14100iRA40,TA40..CP197708-198107

64225HANGER, REAR SEAT CUSHION SUPPORT

main64225-14010iRA40,TA40..CP197708-198107

RH

main64226-14020iRA40,TA40..CP197708-198107

LH

64317REINFORCEMENT, SEAT BELT ANCHORAGE TO PACKAGE TRAY

main64317-14010×2iRA40..CP..SDN197708-197908

64811GLASS, BACK WINDOW

main64801-14160iRA40,TA40..CP..EUG; RA40,TA40..CP..GEN197808-197908

*TT,T=4.0,W/*DEF

main64801-14170iRA40,TA40..EUG; RA40,TA40..GEN197708-197808

*TT,T=4.0,W/*DEF,RADIO

main64801-14180iRA40..LT197708-197811

*TEM,T=4.0,W/*DEF,RADIO

main64801-14200iRA40,TA40..CP..LHD..EUR197708-197808

*TT,T=4.0,W/HEAVY *DEF,RADIO

main64801-14320iRA40,TA40..CP..LHD..(LT,ST)197808-198107

*TT,T=4.0,W/HEAVY *DEF

main64801-14380iRA40..LT197811-197908

*TEM,T=4.0,W/*DEF,RADIO

main64811-14290iTA40..(LT,ST)..EUG; TA40..CP..(LT,ST); TA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN197908-198107

*TT,T=4.0,W/O *DEF,RADIO

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14010iRA40,TA40..CP197808-198107

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14030iRA40,TA40..CP..(LT,ST)197708-198107

HANGING CLOTH LINING

main64812-14040iRA40,TA40..CP197708-198107

9152140610

main91521-40610

9411040800

main94110-40800

14 parts on this diagram · 4 diagrams in section
