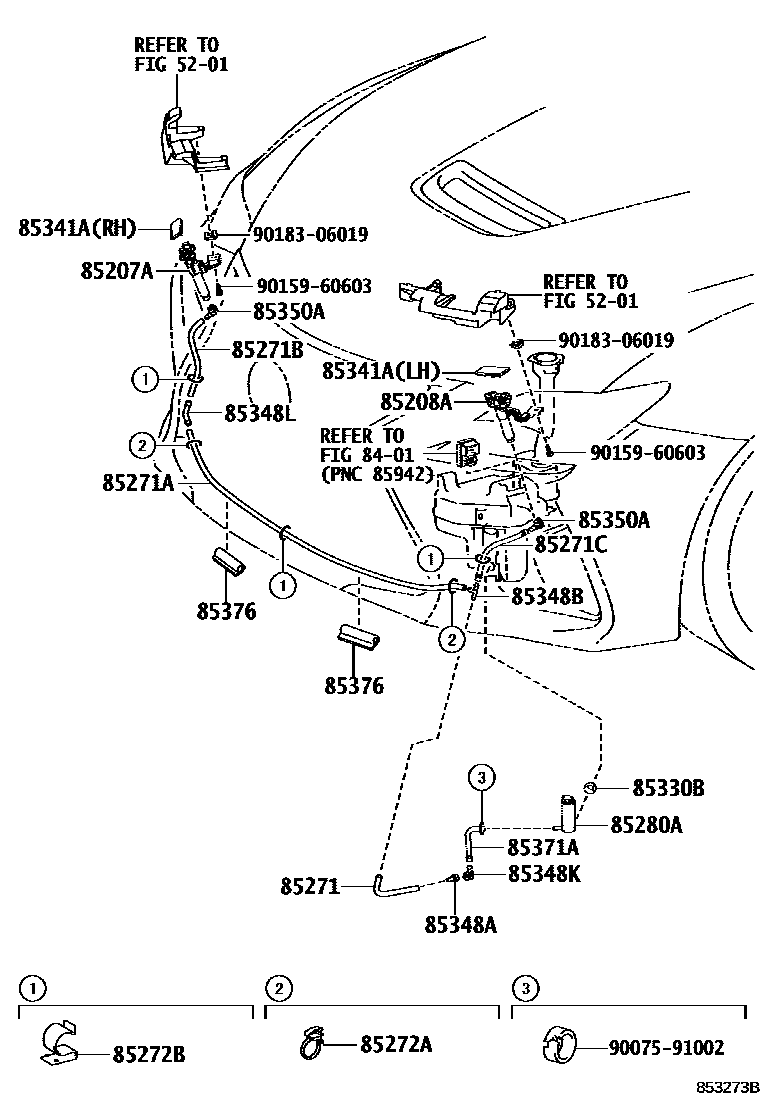

HEADLAMP CLEANER
5201FRONT BUMPER & BUMPER STAY
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=140
L=180
85271AHOSE, HEADLAMP CLEANER, NO.2
L=450
L=1200
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1600
L=260
85271CHOSE, HEADLAMP CLEANER, NO.4
L=260
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE NOVA GF.,083,RH
MERCURY GRAY MC.,1H9,RH
SONIC SILVER,1J2,RH
SONIC TITANIUM,1J7,RH
MARCURY GRAY MC.MATT,1K7,RH
BLACK,212,RH
STARLIGHT BLACK GF.,217,RH
GRAPHITE BLACK GF.,223,RH
RED,3T5,RH
ORANGE,4W7,RH
NAPLES YELLOW,5C1,RH
BLUE,8X1,RH
WHITE NOVA GF.,083,RH
HAKUJI,091,RH
SONIC TITANIUM,1J7,RH
SONIC CHROME,1L1,RH
TITANIUM CARBIDE GRAY,1L8,RH
SONIC IRIDIUM,1L2,RH
GRAPHITE BLACK GF.,223,RH
RADIANT RED CONTRAST LAYE,3T5,RH
NAPLES YELLOW CONTRAST LA,5C1,RH
HEAT BLUE CONTRAST LAYERI,8X1,RH
RH
WHITE NOVA GF.,083,LH
MERCURY GRAY MC.,1H9,LH
SONIC SILVER,1J2,LH
SONIC TITANIUM,1J7,LH
MARCURY GRAY MC.MATT,1K7,LH
BLACK,212,LH
STARLIGHT BLACK GF.,217,LH
GRAPHITE BLACK GF.,223,LH
RED,3T5,LH
ORANGE,4W7,LH
NAPLES YELLOW,5C1,LH
BLUE,8X1,LH
WHITE NOVA GF.,083,LH
HAKUJI,091,LH
SONIC TITANIUM,1J7,LH
SONIC CHROME,1L1,LH
TITANIUM CARBIDE GRAY,1L8,LH
SONIC IRIDIUM,1L2,LH
GRAPHITE BLACK GF.,223,LH
RADIANT RED CONTRAST LAYE,3T5,LH
NAPLES YELLOW CONTRAST LA,5C1,LH
HEAT BLUE CONTRAST LAYERI,8X1,LH
LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=120
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019
23 parts on this diagram · 2 diagrams in section
