ENGINE OIL PUMP

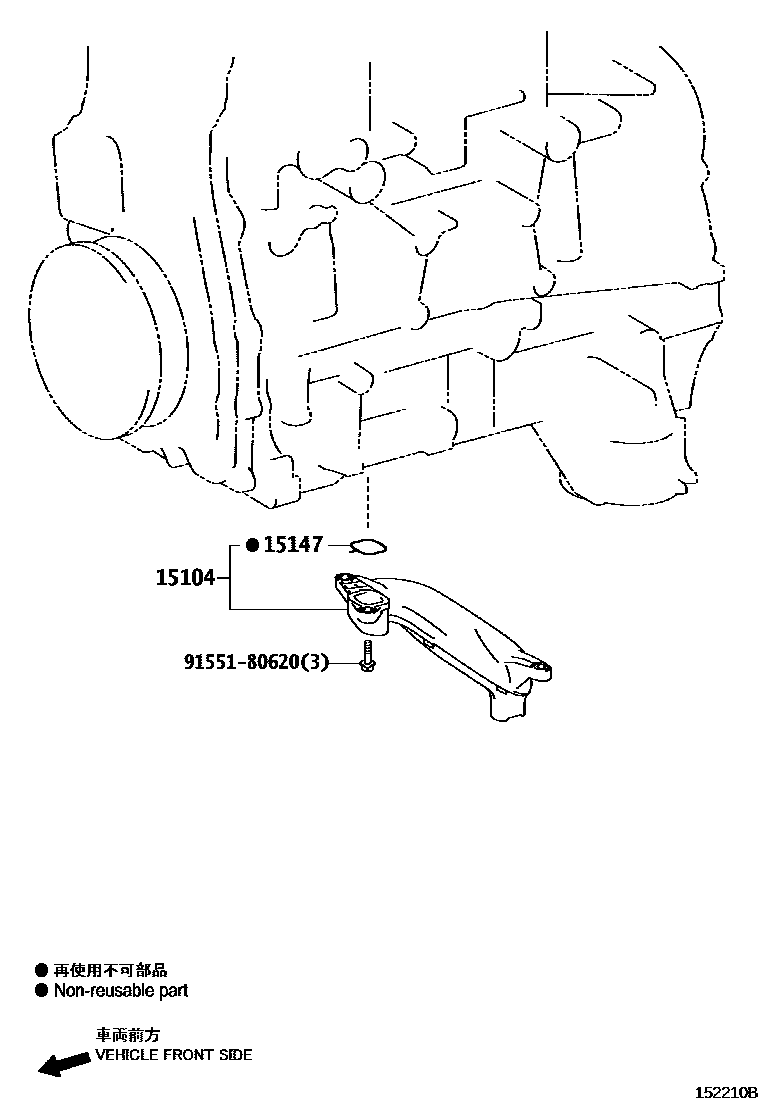

Parts diagram

15104STRAINER SUB-ASSY, OIL

main15104-31080i201510-201810

main15104-36040i201810-202209

15147GASKET, OIL STRAINER

main15147-31060i201510-201810

main15147-36020i201810-202209

9155180620

main91551-80620

3 parts on this diagram · 3 diagrams in section
