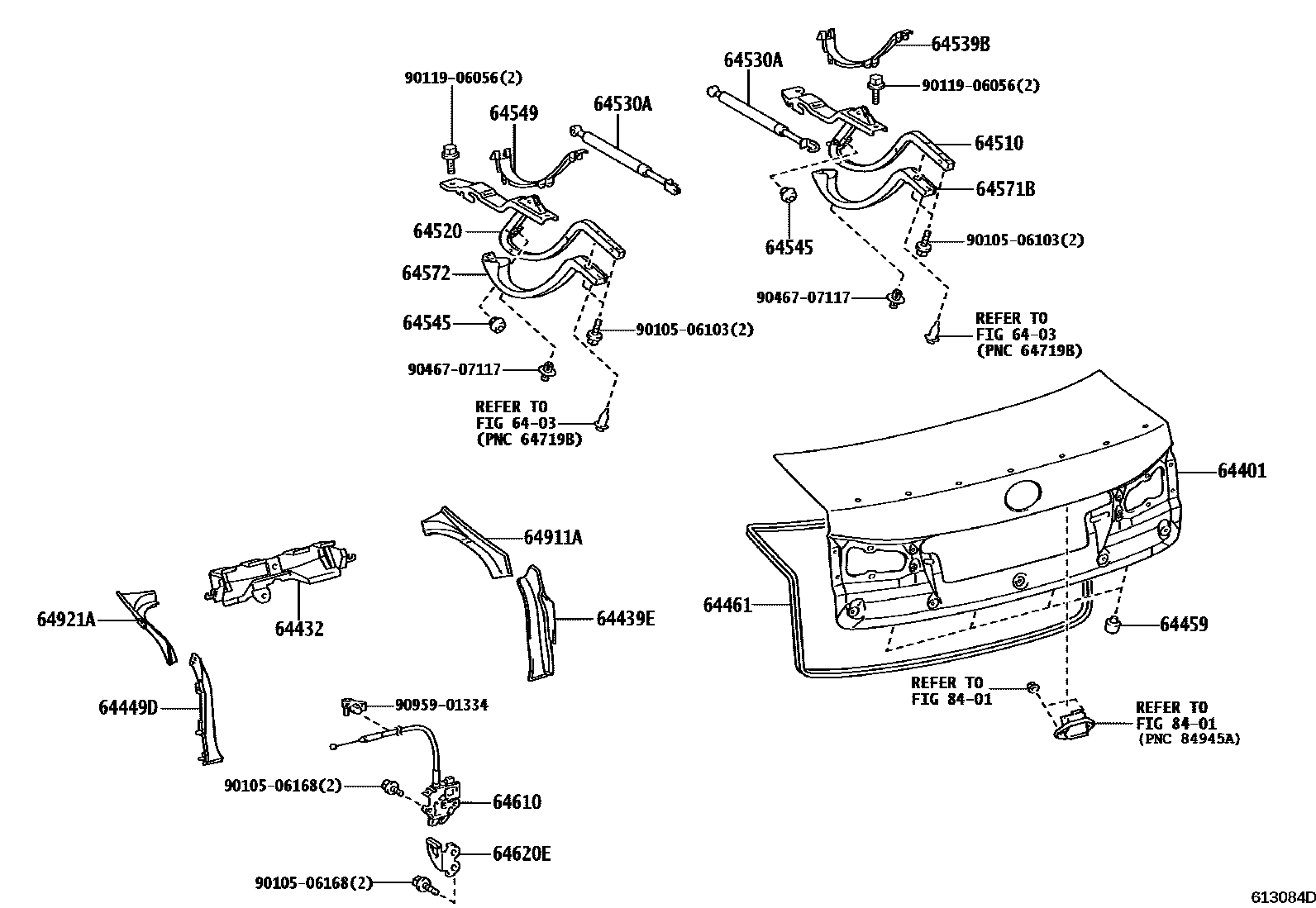

LUGGAGE COMPARTMENT DOOR & LOCK

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-53182iUSE20201008-201408

64432REINFORCEMENT, LUGGAGE COMPARTMENT DOOR

main64432-53030iUSE20201008

64439ECOVER, LUGGAGE ROOM BOX SIDE, RH

main64439-53010iUSE20201008

64449DCOVER, LUGGAGE ROOM BOX SIDE, LH

main64449-53010iUSE20201008

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×4iUSE20201008

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-53020iUSE20201008

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-53020iUSE20201008

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-53010iUSE20201008

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-53012×2iUSE20201008-201101

main64530-53013×2iUSE20201102-201204

main64530-53014×2iUSE20201205

64539BPLATE, LUGGAGE DOOR HINGE ARM, RH

main64539-53010-C0iUSE20201008-201408

BLACK,TRIM2#

64545CUSHION, LUGGAGE DOOR HINGE

main90541-11010×2iUSE20201008

64549PLATE, LUGGAGE DOOR HINGE ARM, LH

main64549-53010-C0iUSE20201008-201408

BLACK,TRIM2#

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-53020-C1iUSE20201008-201408

BLACK,TRIM2#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-53020-C1iUSE20201008-201408

BLACK,TRIM2#

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-53040iUSE20201008

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-53010iUSE20201008

64911ACOVER, SIDE OPENING, RH

main64911-53020iUSE20201008

64921ACOVER, SIDE OPENING, LH

main64921-53010iUSE20201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506103

main90105-06103

9010506168

main90105-06168

9011906056

main90119-06056

9046707117

main90467-07117

9095901334

main90959-01334

25 parts on this diagram · 1 diagram in section
