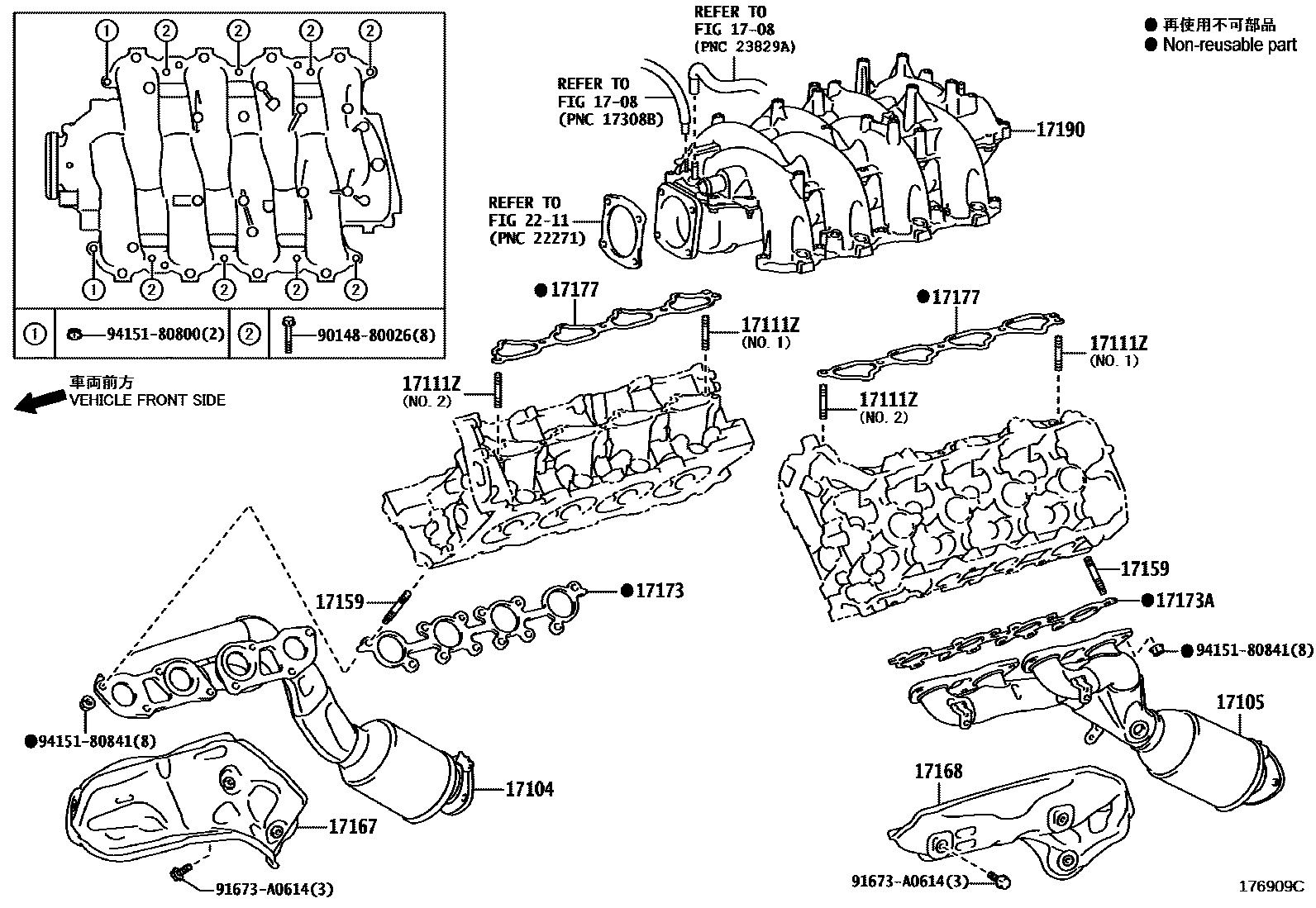

MANIFOLD
1708VACUUM PIPING
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*114=TOYOTA/R38060/Y
17105MANIFOLD SUB-ASSY, EXHAUST, LH
*114=TOYOTA/L38060/Y
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17190TANK ASSY, INTAKE AIR SURGE
2211FUEL INJECTION SYSTEM
9014880026
main90148-80026
91673A0614
main91673-A0614
9415180800
main94151-80800
9415180841
main94151-80841
16 parts on this diagram · 1 diagram in section
