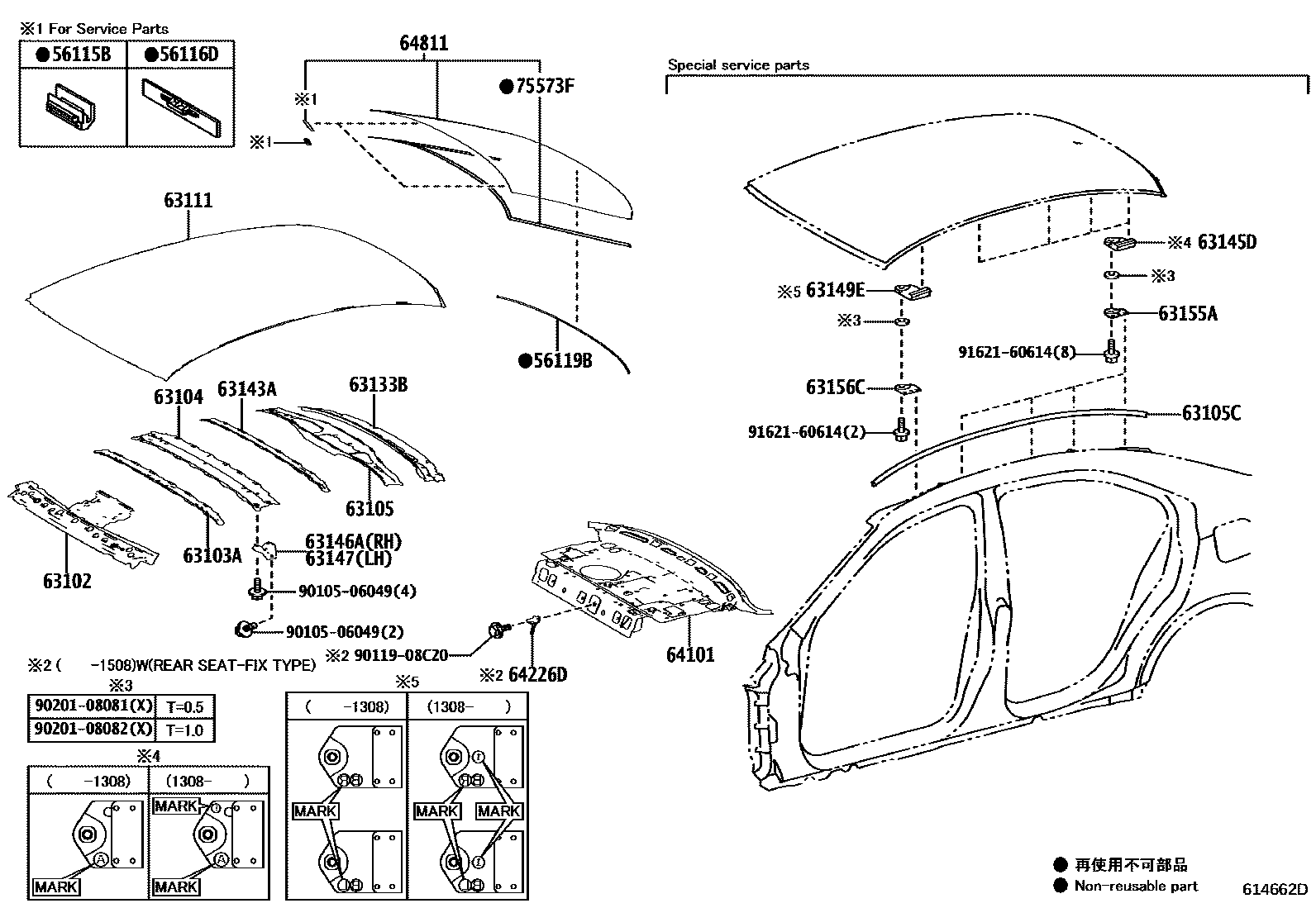

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
56119BDAM, BACK WINDOW GLASS ADHESIVE
63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63105CMOULDING SUB-ASSY, ROOF DRIP
L=1550
63111PANEL, ROOF
MAYDAY SYSTEM-WITH(TELEMATICS),REFER TO PNC 63145D
REFER TO PNC 63145D
TAIWAN SPEC,REFER TO PNC 63145D
THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
REFER TO PNC 63145D
SOUTH AFRICA SPEC,REFER TO PNC 63145D
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
REFER TO PNC 63145D
TAIWAN SPEC,REFER TO PNC 63145D
MAYDAY SYSTEM-WITH(TELEMATICS),REFER TO PNC 63145D
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION)
MAYDAY SYSTEM-WITH(TELEMATICS)
ANTENNA-GLASS & DIGITAL TV & SHARK(LESS CABLE)
ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)
TAIWAN SPEC
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
REFER TO PNC 63145D
SOUTH AFRICA SPEC,REFER TO PNC 63145D
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),REFER TO PNC 63145D
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS),REFER TO PNC 63145D
SOUTH AFRICA SPEC
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS)
ANTENNA-GLASS
ANTENNA-GLASS & DAB
TAIWAN SPEC
SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT
SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT
MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
SOUTH AFRICA SPEC
SINGAPORE SPEC
63133BFRAME, BACK WINDOW
63143AREINFORCEMENT, ROOF PANEL
63145DBRACKET, ROOF REINFORCEMENT
MARK A
MARK A1
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63147BRACKET, ROOF PANEL REINFORCEMENT
63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2
RH,MARK BR
RH,MARK BR1
LH,MARK BL
LH,MARK BL1
63155APLATE, ROOF PANEL REINFORCEMENT
63156CPLATE, ROOF PANEL REINFORCEMENT, NO.2
64101PANEL SUB-ASSY, UPPER BACK
64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2
64811GLASS, BACK WINDOW
MALAYSIA SPEC&ANTENNA-GLASS
HONG KONG SPEC
SOUTH AFRICA SPEC
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
BRUNEI SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS)
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS)
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS)
THAILAND SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
THAILAND SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS)
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION)
MALAYSIA SPEC&EMV & NAVIGATION SYSTEM-DISPLAY AUDIO & WITH(GPS)
NEW ZEALAND SPEC
HONGKONG SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)
SOUTH AFRICA SPEC&ANTENNA-GLASS & DAB
BRUNEI SPEC&ANTENNA-GLASS
SINGAPORE SPEC&ANTENNA-GLASS
THAILAND SPEC&ANTENNA-GLASS
THAILAND SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)
MACAU SPEC&ANTENNA-GLASS & SHARK ANTENNA(LESS CABLE)
HONGKONG SPEC
INDONESIA SPEC&ANTENNA-GLASS
INDONESIA SPEC&EMV & NAVIGATION SYSTEM-*DA & WITH(GPS)
MACAU SPEC
SINGAPORE SPEC&DATA COMMUNICATION MODULE-WITHOUT
THAILAND SPEC&DATA COMMUNICATION MODULE-WITHOUT
MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT
SINGAPORE SPEC
THAILAND SPEC
75573FMOULDING, BACK WINDOW, OUTSIDE
9010506049
main90105-06049
9011908C20
main90119-08C20
9020108081
main90201-08081
9020108082
main90201-08082
9162160614
main91621-60614
26 parts on this diagram · 3 diagrams in section
