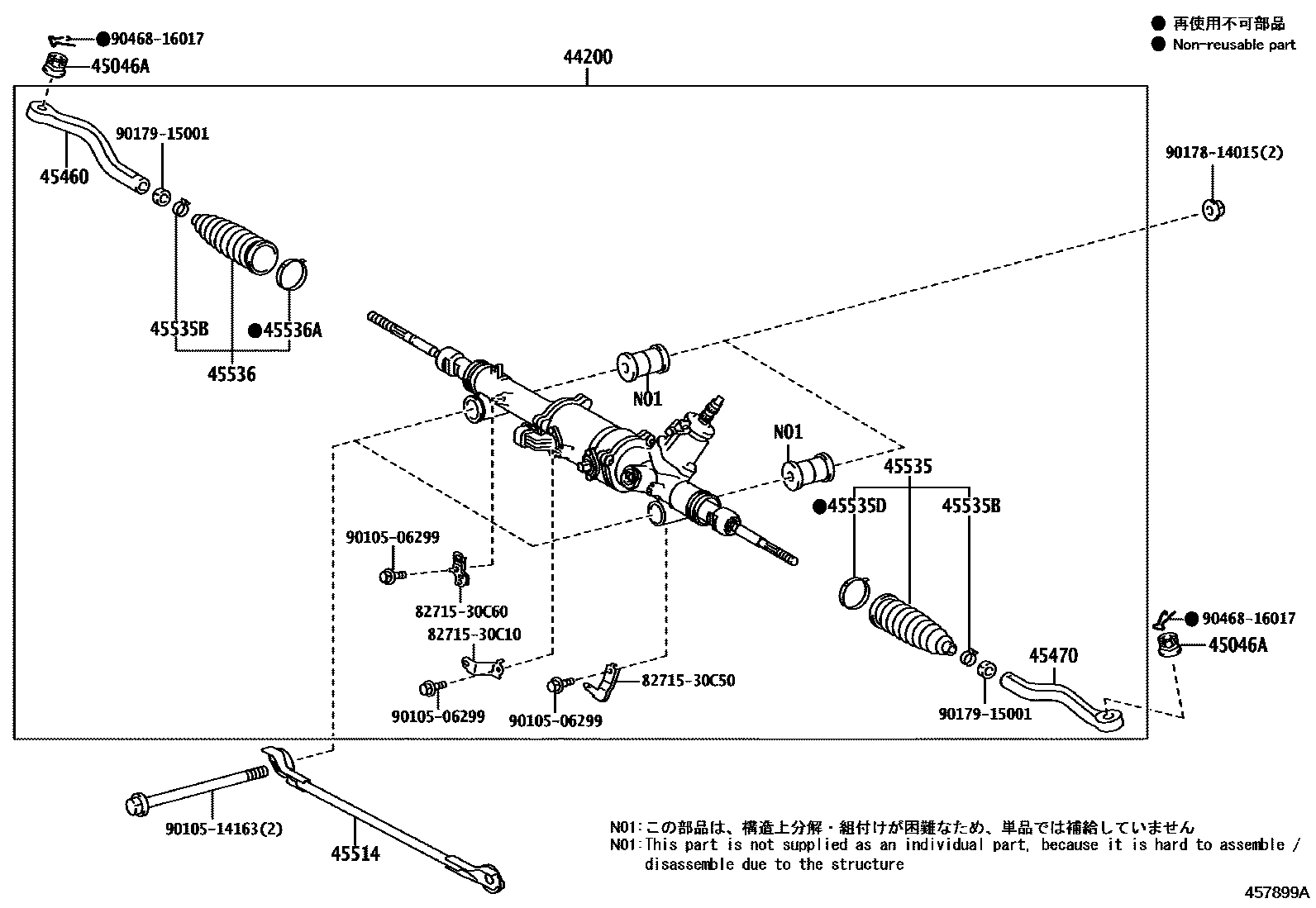

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-30730iGSE31..ARL202009-202309

main44200-30740iASE30,AVE30,GSE31..LHD202009-202110

main44200-53230iAVE30,GSE3#..ARL201304-202009

main44200-53240iASE30,AVE30,GSE31..LHD201304-202009

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iAVE30,GSE3#201304-202309

45460ROD ASSY, TIE, RH

main45463-30130iAVE30,GSE3#201304-202009

main45463-30190iASE30,AVE30,GSE31202009-202309

45470ROD ASSY, TIE, LH

main45464-30060iAVE30,GSE3#201304-202009

main45464-30090iASE30,AVE30,GSE31202009-202309

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-30020iASE30,AVE30,GSE31202009-202309

45535BOOT, STEERING RACK, NO.1

main45535-59045iAVE30,GSE3#201304-201312

main45535-59065iAVE30,GSE3#201401-202309

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iAVE30,GSE3#201304-202309

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iAVE30,GSE3#201304-202309

45536BOOT, STEERING RACK, NO.2

main45535-59045iAVE30,GSE3#201304-201312

main45535-59065iAVE30,GSE3#201401-202309

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iAVE30,GSE3#201304-202309

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530C60BRACKET,WIRING HARNESS CLAMP

main82715-30C60

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9046816017

main90468-16017

18 parts on this diagram · 4 diagrams in section
