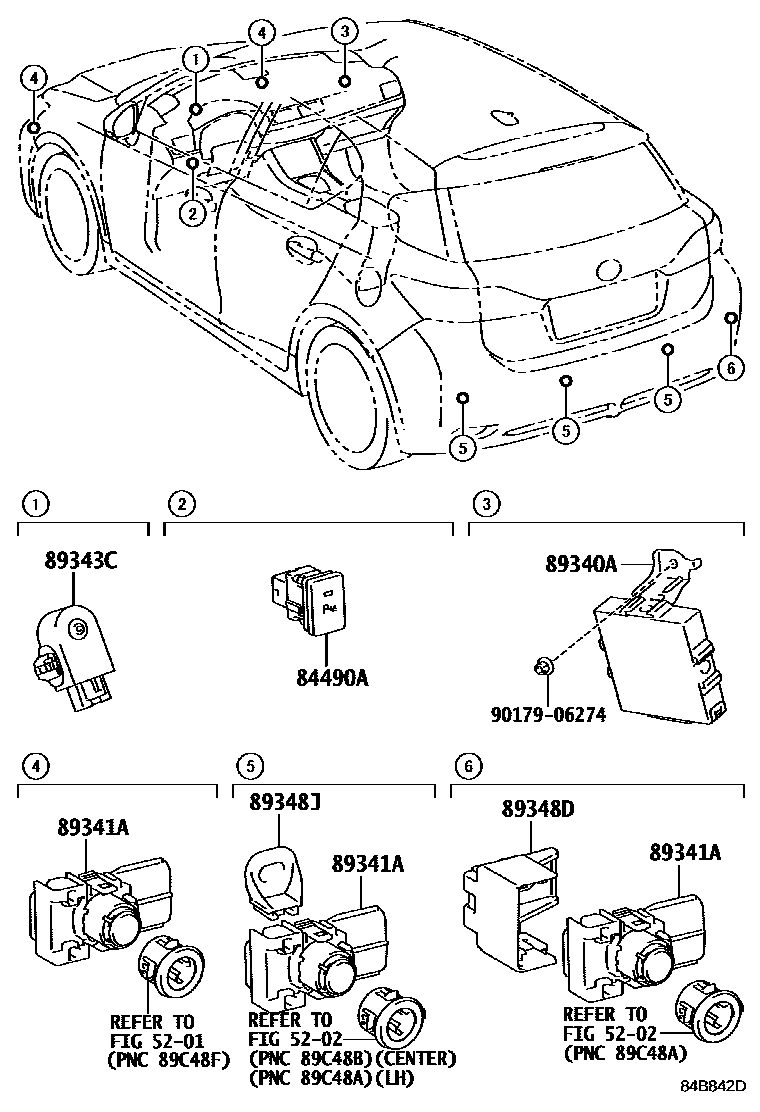

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1 0005 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341ASENSOR, ULTRASONIC, NO.1

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

89348JCLIP, ULTRASONIC SENSOR

9017906274

main90179-06274

9 parts on this diagram · 5 diagrams in section
