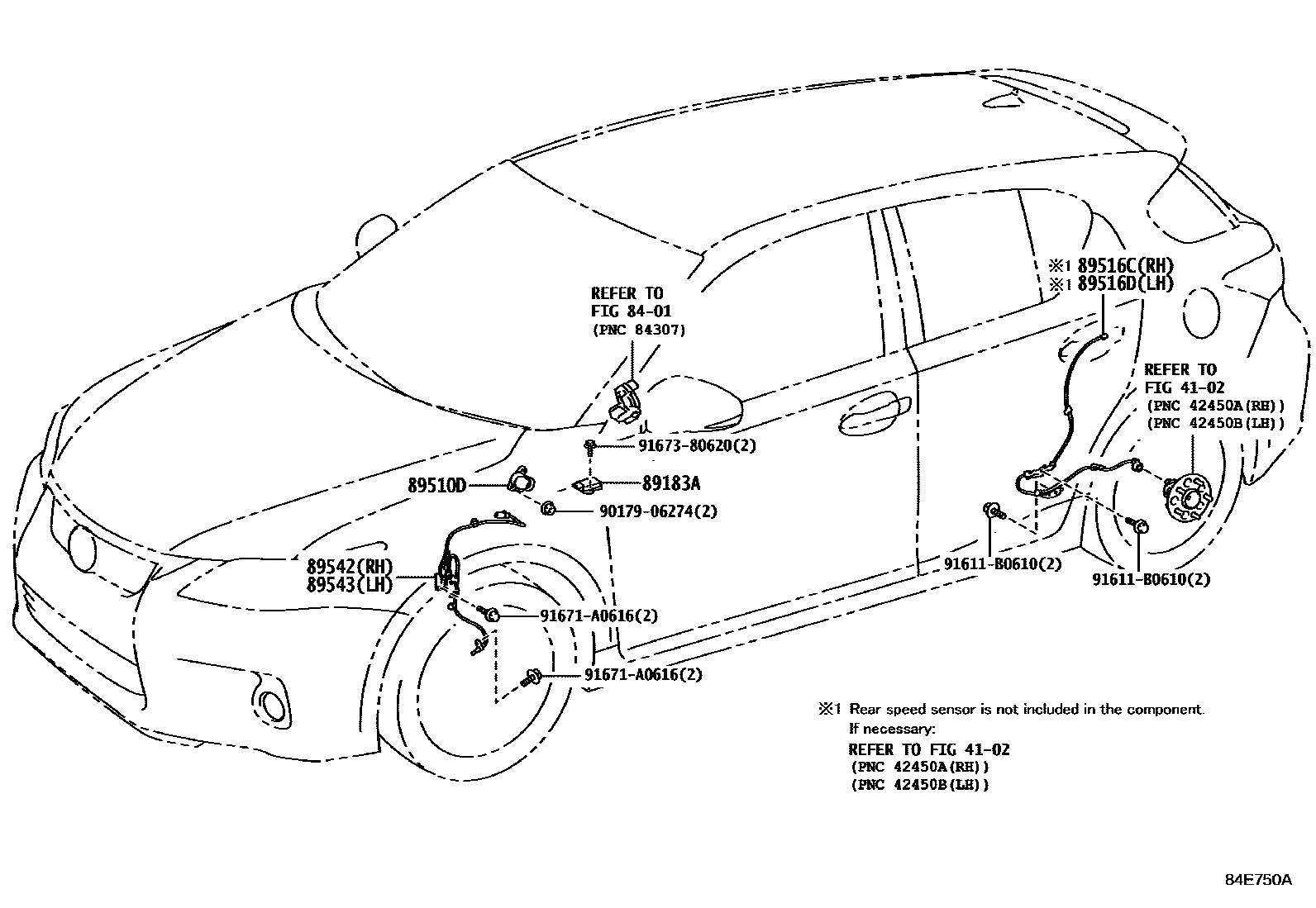

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89183-48030201012-202108

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041201312-202108

main89510-47050201012-202105

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12160201012-202108

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12170201012-202108

89542SENSOR, SPEED, FRONT RH

main89542-47030201012-202108

89543SENSOR, SPEED, FRONT LH

main89543-47030201012-202108

9017906274

main90179-06274

91611B0610

main91611-B0610

91671A0616

main91671-A0616

9167380620

main91673-80620

12 parts on this diagram · 2 diagrams in section
