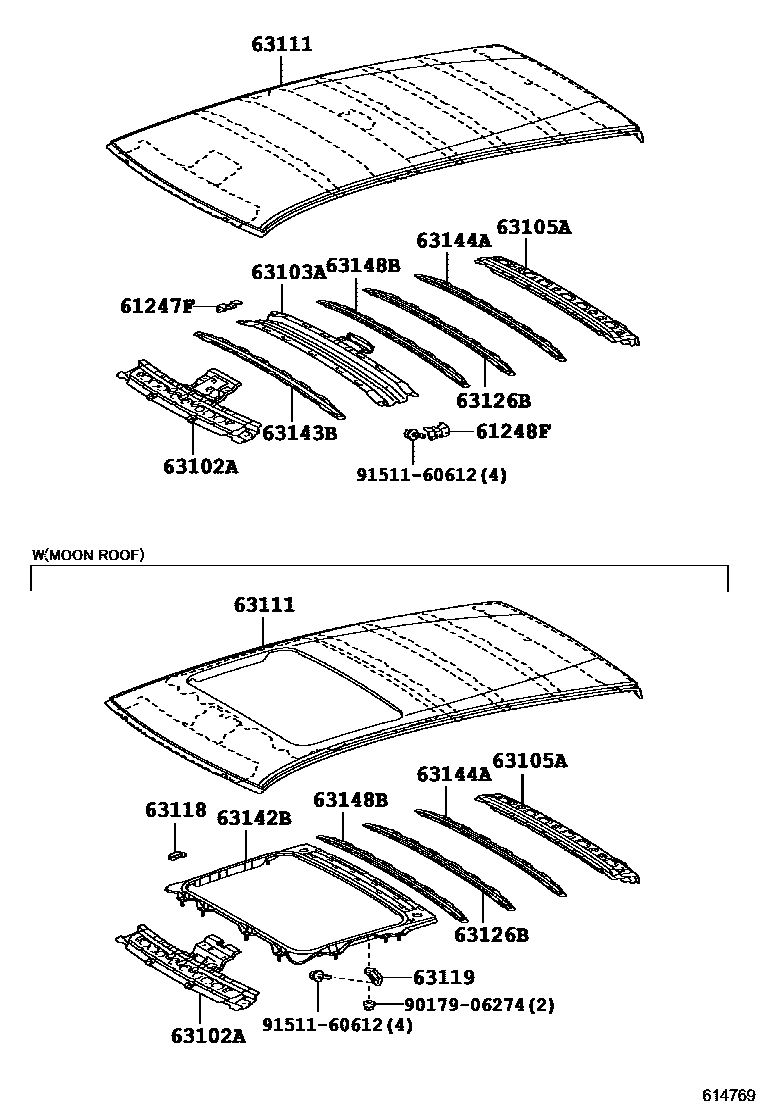

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-76010iZWA10201012-201312

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-76010iZWA10..B..CHI201312-202105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76901supersedes 63102-76902iZWA10201012-201312

MOON ROOF-WITH(TILT & OUTER SLIDE)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76010iZWA10201012-201312

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76010iZWA10201012-201312

63111PANEL, ROOF

main63111-76020supersedes 63111-76010iZWA10201012-201312

MOON ROOF-WITH(TILT & OUTER SLIDE)

main63111-76021supersedes 63111-76011iZWA10..E;ZWA10..ARL,GCC201312-202108

MOON ROOF-WITH(TILT & OUTER SLIDE)

63118SUPPORT, ROOF PANEL, RH

main63118-76010iZWA10201012-201312

MOON ROOF-WITH(TILT & OUTER SLIDE)

63119SUPPORT, ROOF PANEL, LH

main63118-76010iZWA10201012-201312

MOON ROOF-WITH(TILT & OUTER SLIDE)

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-76010iZWA10201012-201312

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-76010iZWA10201012-201312

MOON ROOF-WITH(TILT & OUTER SLIDE)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76010iZWA10..B..CHI201312-202105

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76010iZWA10201012-201312

9017906274

main90179-06274

9151160612

main91511-60612

15 parts on this diagram · 2 diagrams in section
