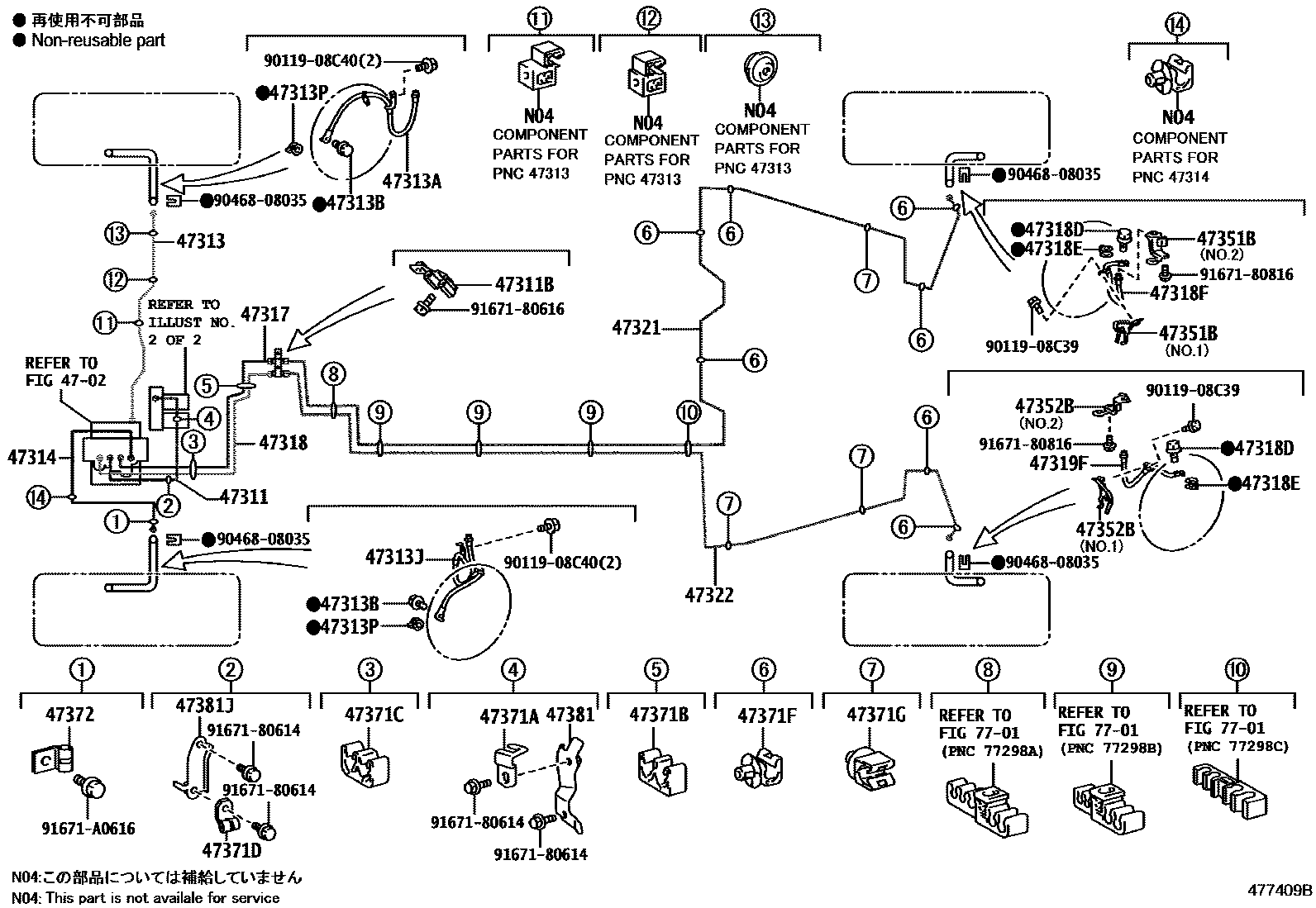

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47351BBRACKET, FLEXIBLE HOSE, NO.1
NO.1
NO.2
47352BBRACKET, FLEXIBLE HOSE, NO.2
NO.1
NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371FCLAMP, BRAKE TUBE, NO.10
47371GCLAMP, BRAKE TUBE, NO.11
47372CLAMP, BRAKE TUBE, NO.2
47381BRACKET, BRAKE TUBE CLAMP NO.1
47381JBRACKET, BRAKE TUBE CLAMP, NO.2
7701FUEL TANK & TUBE
9011908C39
main90119-08C39
9011908C40
main90119-08C40
9046808035
main90468-08035
9167180614
main91671-80614
9167180616
main91671-80616
9167180816
main91671-80816
91671A0616
main91671-A0616
36 parts on this diagram · 3 diagrams in section
