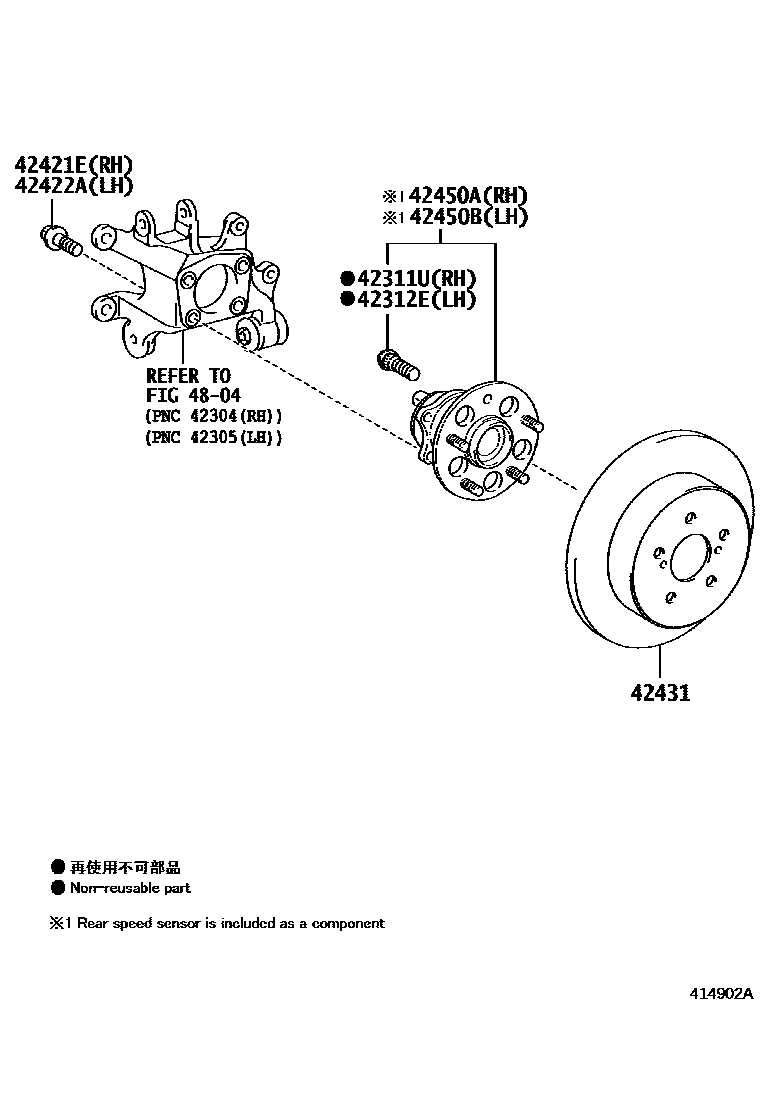

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZWA10201012-201312

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZWA10201012-201312

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iZWA10201012-201312

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iZWA10201012-201312

42431DISC, REAR

main42431-12310×2iZWA10..E201312-201903

main42431-52160×2iZWA10201012-201312

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-76010iZWA10201012-201103

main42450-76020iZWA10201103-201312

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-76010iZWA10201012-201103

main42450-76020iZWA10201103-201312

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
