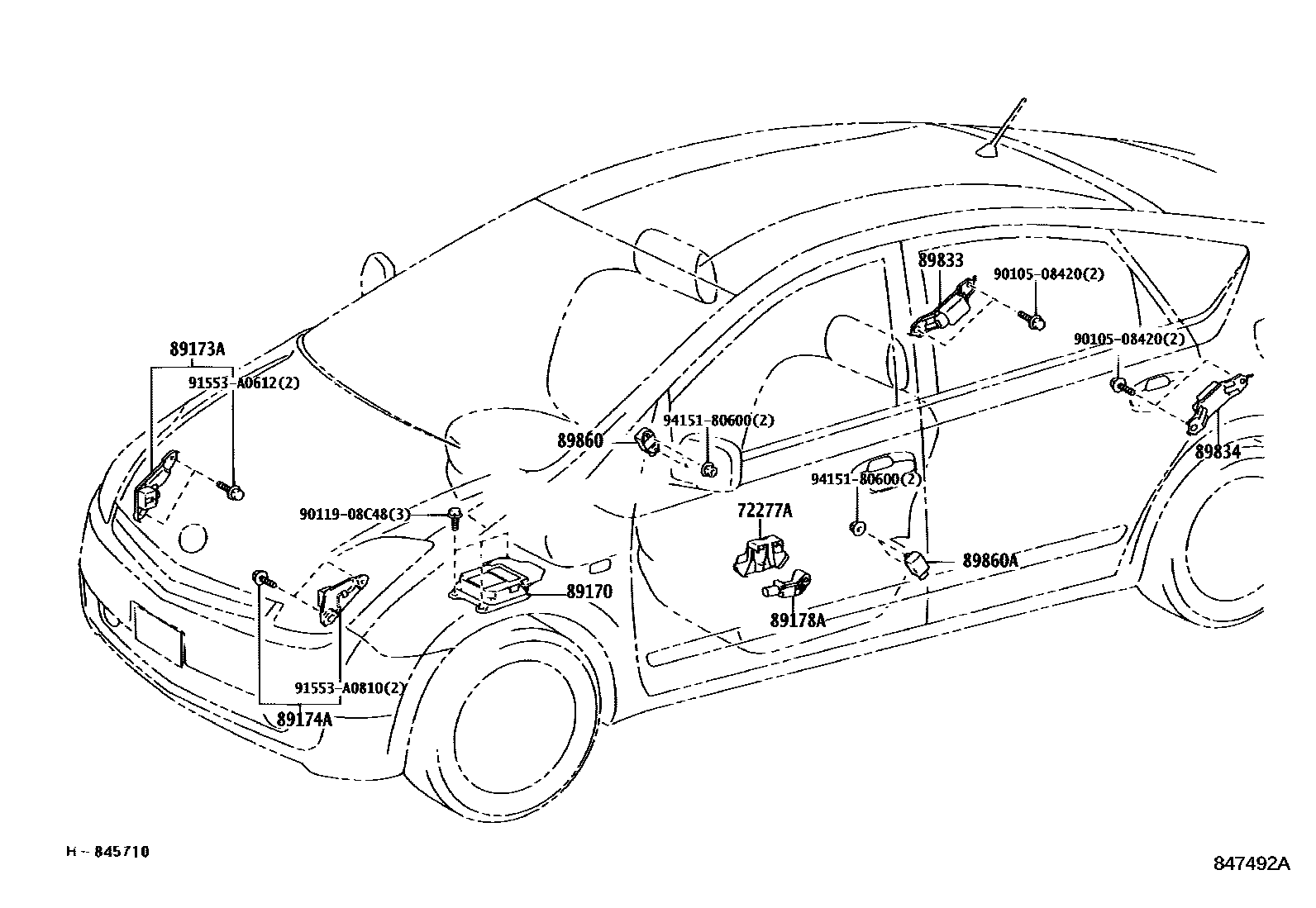

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iNHW20200511

89170SENSOR ASSY, AIRBAG

main89170-47390iNHW20200511-200904

89173ASENSOR, AIRBAG, FRONT RH

main89173-49315iNHW20200511

89174ASENSOR, AIRBAG, FRONT LH

main89174-49125iNHW20200511

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040iNHW20200511

89833SENSOR, AIRBAG, REAR RH

main89833-47030iNHW20200511

89834SENSOR, AIRBAG, REAR LH

main89834-47020iNHW20200511

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-47040iNHW20200511

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-47040iNHW20200511

9010508420

main90105-08420

9011908C48

main90119-08C48

91553A0612

main91553-A0612

91553A0810

main91553-A0810

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
