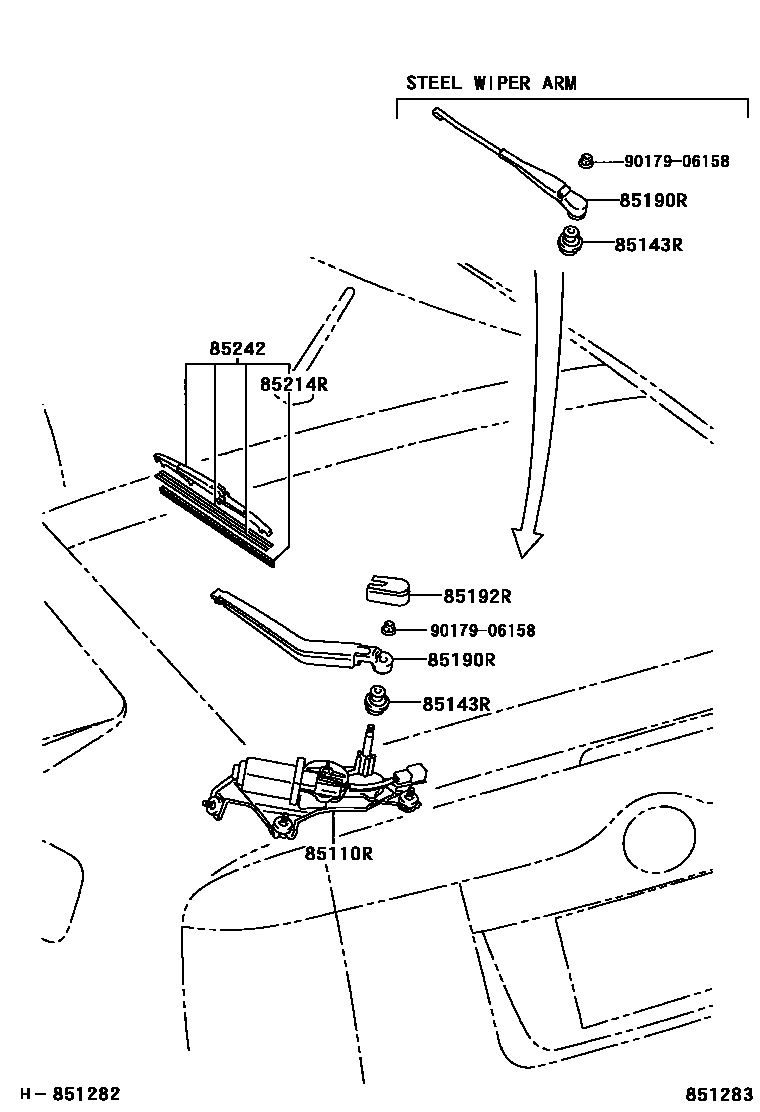

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47010i200308-200511

WITH(INTERMITTENT REAR WIPER)

85143RGROMMET, REAR WIPER MOTOR

main85143-42030i200308-200511

WITH(INTERMITTENT REAR WIPER)

85190RARM ASSY, REAR WIPER

main85241-47020i200308-200511

main85241-47010i200308-200511

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

85192RCOVER, REAR WIPER ARM

main85292-35010i200511-200903

HONG KONG SPEC; SINGAPORE SPEC; TAIWAN SPEC

85214RRUBBER, REAR WIPER

main85214-47010i200308-200511

WITH(INTERMITTENT REAR WIPER)

85242BLADE, RR WIPER

main85242-47020i200308-200511

main85242-47010i200308-200511

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

9017906158

7 parts on this diagram · 1 diagram in section
