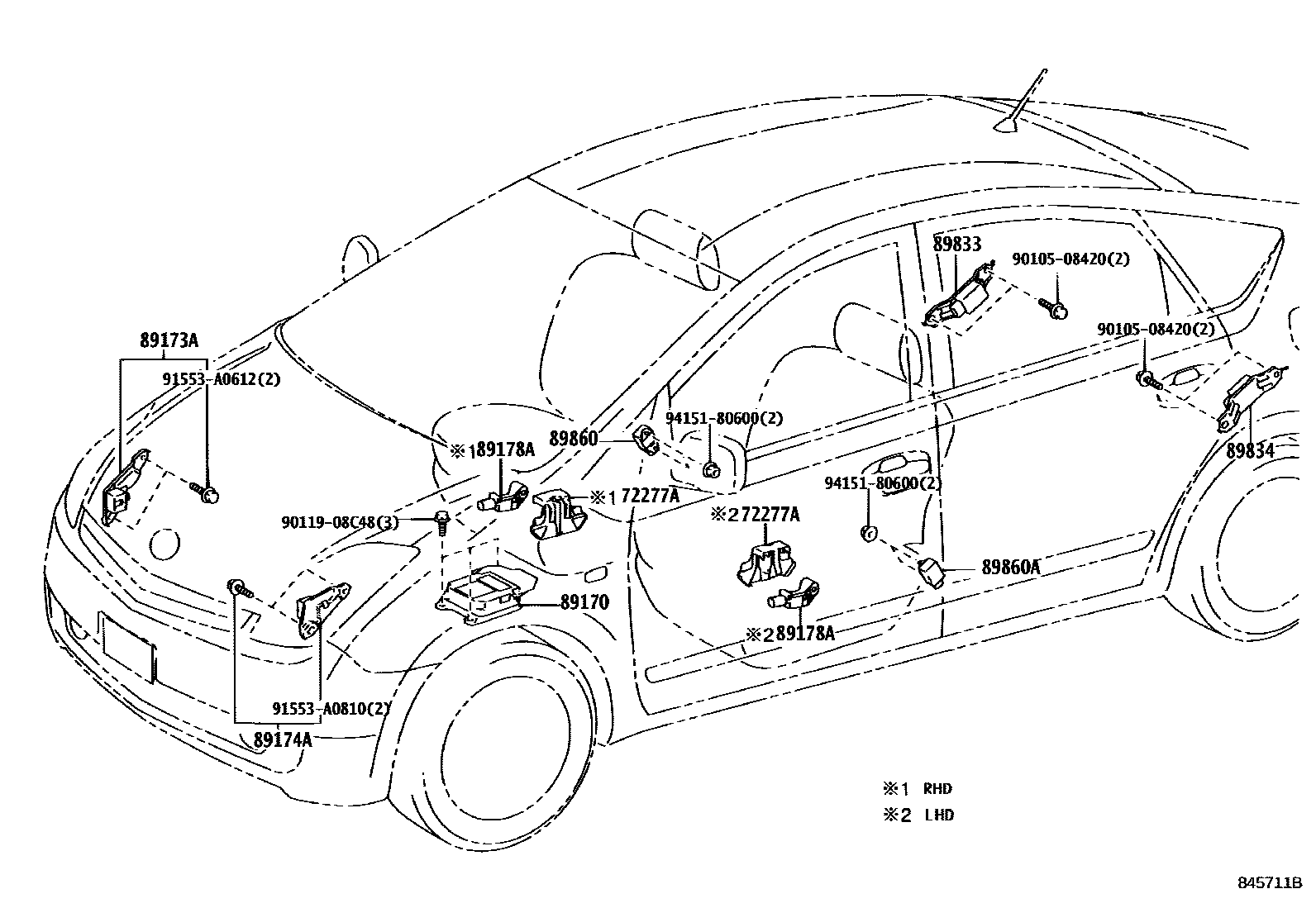

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170SENSOR ASSY, AIRBAG
SRS AIR BAG-DRIVER & PASSENGER
W(VSC)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-W(DRIVER&PASSENGER)& W/O(SIDE & CURTAIN); WITH(VSC)
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-DRIVER & PASSENGER; W(VSC)
89860SENSOR ASSY, SIDE AIRBAG, RH
SRS AIR BAG-DRIVER & PASSENGER; W(VSC)
89860ASENSOR ASSY, SIDE AIRBAG, LH
SRS AIR BAG-DRIVER & PASSENGER; W(VSC)
9010508420
main90105-08420
9011908C48
main90119-08C48
91553A0612
main91553-A0612
91553A0810
main91553-A0810
9415180600
main94151-80600
14 parts on this diagram · 1 diagram in section
