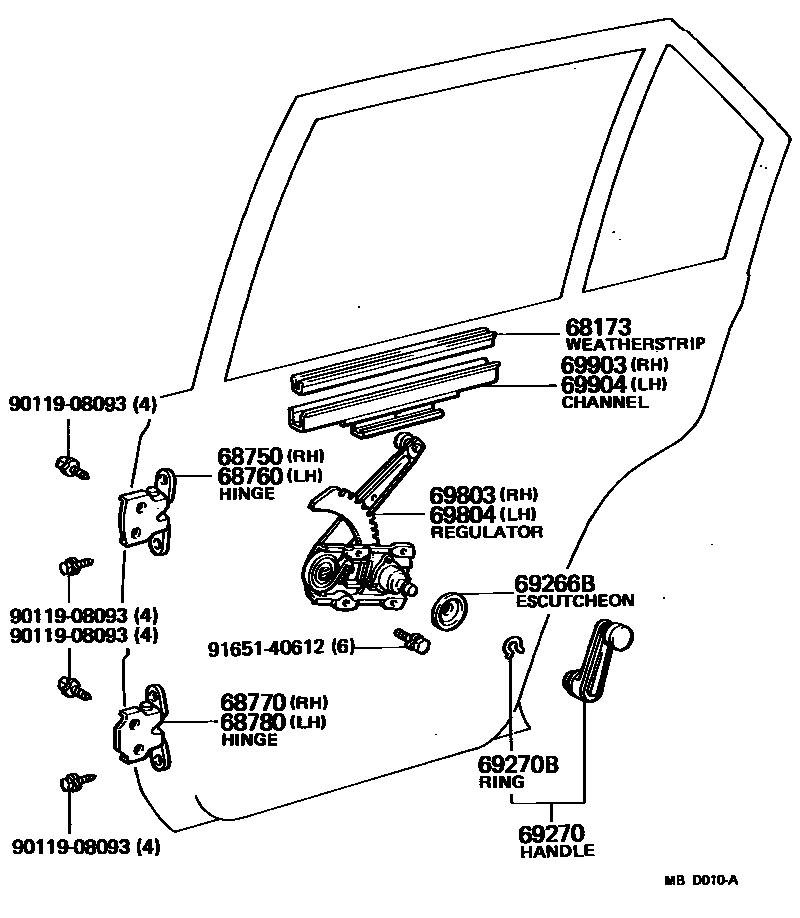

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69975-22020×2iCA60,TA6#..SED,WG198108-198309

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-14020iCA60,TA6#..SED,WG198108-198309

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-14020iCA60,TA6#..SED,WG198108-198309

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-14020iCA60,TA6#..SED,WG198108-198309

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-14020iCA60,TA6#..SED,WG198108-198309

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69285-22010×2iCA60,TA6#..SED,WG198108-198309

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14020-01×2iTA60..DLX..GEN;TA62..(DLX,GL)..(SDN,SDZ)198108-198309

BLACK,BLACK,TRIM2#

main69260-14020-04×2iTA60..SED..GEN;TA62..SED..(SDN,SDZ)198108-198309

BLUE,BLUE,TRIM8#

main69260-14020-06×2iTA60..DLX..GEN;TA62..(DLX,GL)..(SDN,SDZ)198108-198309

DARK BROWN,BROWN,TRIM4#

main69260-14030-01×2iCA60,TA6#..(SED,WG)..EUG198108-198309

BLACK,BLACK,TRIM2#

main69260-14030-04×2iCA60,TA6#..SED..EUG198108-198309

BLUE,BLUE,TRIM8#

main69260-14030-06×2iCA60,TA6#..(SED,WG)..EUG198108-198309

DARK BROWN,BROWN,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iCA60,TA6#..SED,WG198108-198309

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-14060iCA60,TA6#..SED,WG198108-198309

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-14060iCA60,TA6#..SED,WG198108-198309

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-14030iCA60,TA6#..SED,WG198108-198309

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-14030iCA60,TA6#..SED,WG198108-198309

9011908093

main90119-08093

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
