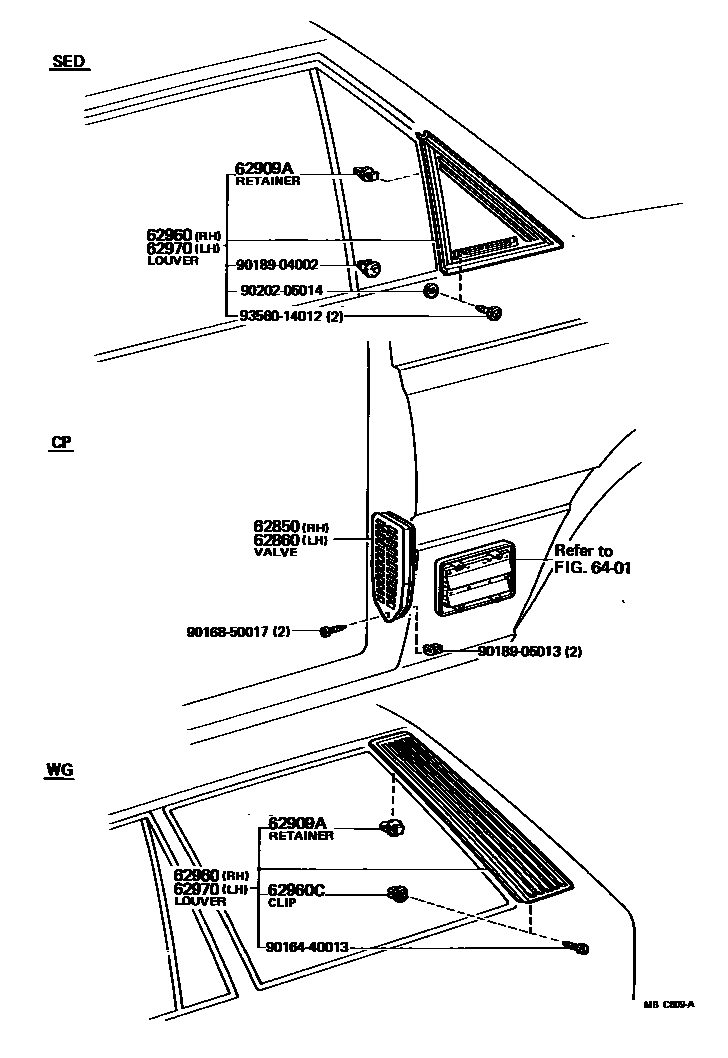

ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-14050iTA6#..CP198108-198309

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-14050iTA6#..CP198108-198309

62909ARETAINER SUB-ASSY, QUARTER VENTILATION LOUVER

main62955-20020×4iCA60,TA6#..SED,WG198108-198309

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-19255iTA6#..SED198108-198201

main62905-19256iCA60,TA6#..SED198201-198309

main62905-19275iCA60,TA6#..WG198108-198309

62960CCLIP, ROOF SIDE VENT LOUVER

main62908-91C01×2iCA60,TA6#..WG198108-198309

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-19235iTA6#..SED198108-198201

main62906-19236iCA60,TA6#..SED198201-198309

main62906-19255iCA60,TA6#..WG198108-198309

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

9016440013

main90164-40013

9016850017

main90168-50017

9018904002

main90189-04002

9018905013

main90189-05013

9020205014

main90202-05014

9356014012

main93560-14012

13 parts on this diagram · 1 diagram in section
