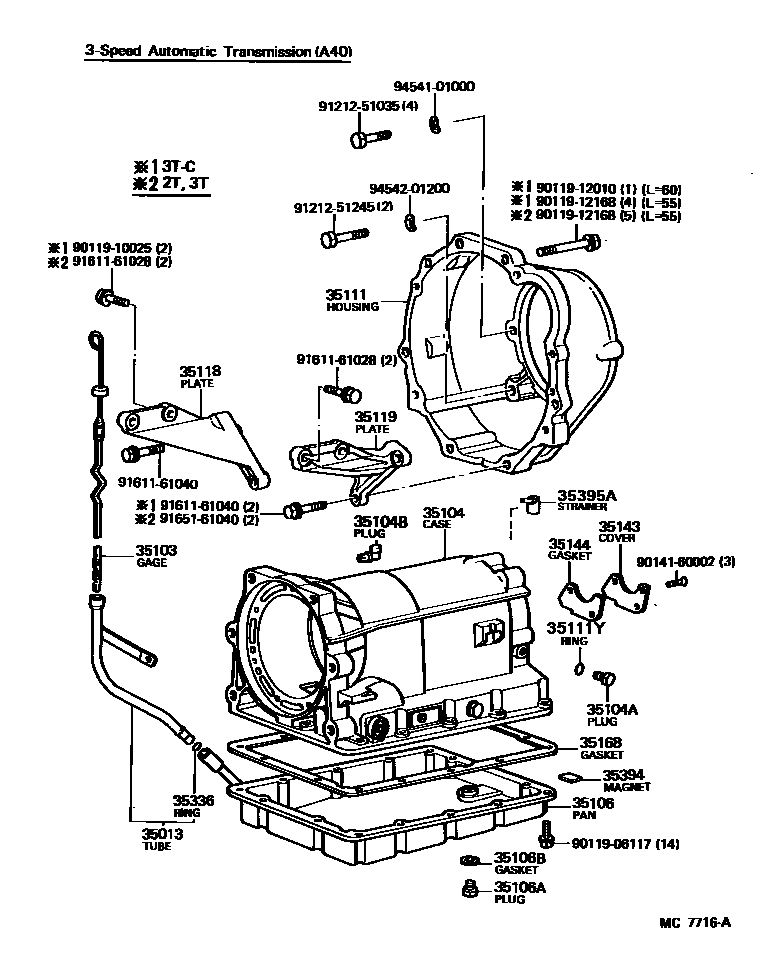

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28010iTA6#..3FC198108-198309

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iTA6#..3FC198108-198309

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22025iTA6#..3FC198108-198309

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iTA6#..3FC198108-198309

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iTA6#..3FC198108-198309

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iTA6#..3FC198108-198309

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iTA6#..3FC198108-198307

main90341-10006iTA6#..3FC198307-198309

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iTA6#..3FC198108-198309

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14050iTA6#..3FC198108-198309

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iTA6#..3FC198108-198309

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTA6#..3FC198108-198309

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTA6#..3FC198108-198309

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iTA6#..3FC198108-198309

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iTA6#..3FC198108-198309

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iTA6#..3FC198108-198309

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iTA6#..3FC198108-198309

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iTA6#..3FC198108-198309

35395ASTRAINER, GOVERNOR OIL

main35395-40010iTA6#..3FC198305-198309

9011906117

main90119-06117

9011910025

main90119-10025

9011912010

main90119-12010

9011912168

main90119-12168

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161161028

main91611-61028

9161161040

main91611-61040

9165161040

main91651-61040

9454101000

main94541-01000

9454201200

main94542-01200

30 parts on this diagram · 1 diagram in section
