FLOOR MAT

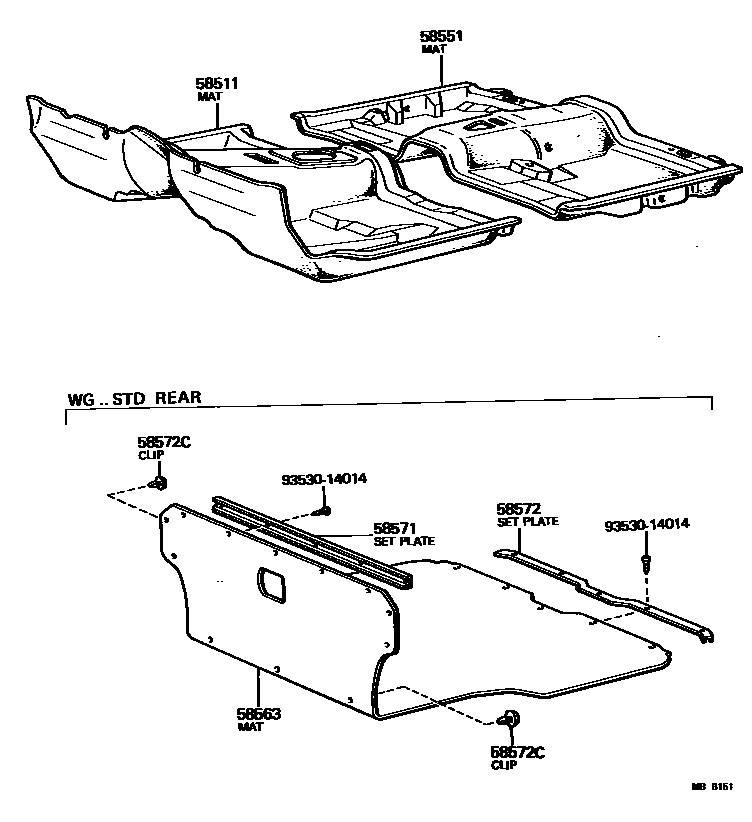

Parts diagram

58511MAT, FLOOR, FRONT

main58510-14330i197708-197908

main58510-14340i197708-197908

main58510-14350i197708-197908

W/CONSOLE

main58510-14360i197708-197908

W/CONSOLE

main58510-14580i197908-198107

main58510-14590i197908-198107

main58510-14600i197908-198107

W/CONSOLE

main58510-14610i197908-198107

W/CONSOLE

main58514-14310i197708-197908

58551MAT, FLOOR, REAR

main58514-14300i197708-197908

main58514-14310i197708-197908

main58514-14340i197908-198107

main58514-14350i197908-198107

main58540-15030i197708-197908

main58540-15031i197908-198107

58563MAT, REAR FLOOR

main58581-15020-01i197708-197908

BLACK,BLACK,TRIM2#

main58581-15020-05i197908-198107

BEIGE,BEIGE,TRIM4#

main58581-15020-06i197708-197908

LIGHT BROWN,BROWN,TRIM4#

main58581-15020-11i197908-198107

BLACK,BLACK,TRIM2#

58571SET PLATE, REAR FLOOR MAT, FRONT

main71882-13010i197708-198107

58572SET PLATE, REAR FLOOR MAT, REAR

main58573-15010i197708-198107

58572CCLIP, REAR FLOOR MAT SET

main90467-06161-11×4i197708-198107

OD=14,BLACK,BLACK,TRIM2#

main90467-06161-16×4i197708-198107

OD=14,LIGHT BROWN,BROWN,TRIM4#

main90467-07162-11×3i197708-198107

OD=26,BLACK,BLACK,TRIM2#

main90467-07162-16×3i197708-198107

OD=26,LIGHT BROWN,BROWN,TRIM4#

9353014010

main93530-14010

9353014014

main93530-14014

8 parts on this diagram · 1 diagram in section
