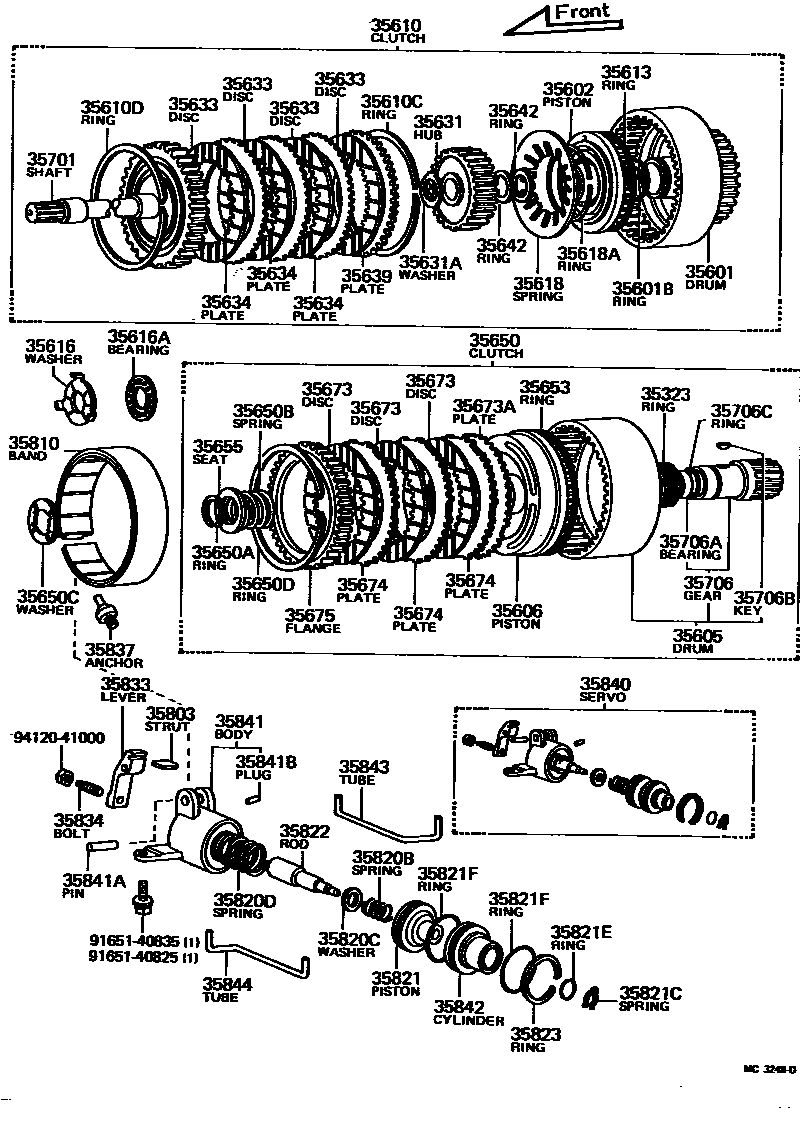

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35323RING (FOR OIL SEAL)
35601DRUM SUB-ASSY, CLUTCH
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
T=1.15-1.25
T=1.3-1.4
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35616WASHER, CLUTCH DRUM THRUST
T=1.2-1.3
T=0.8-0.9
T=1.0-1.2
35616ABEARING, FRONT CLUTCH THRUST
TP 0605SB-G
35618SPRING, FRONT CLUTCH PISTON RETURN
35618ARING, PISTON RETURN SPRING SET
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631AWASHER(FOR TOYOGLIDE CLUTCH HUB THRUST)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
T=2.25-2.35
NSK-WARNER
AISIN CHEMICAL
35634PLATE, FRONT CLUTCH
T=1.8,NSK-WARNER
T=1.8,ASCO
T=1.50-1.65
T=1.70-1.85
T=1.90-2.05
35639PLATE, FRONT CLUTCH PRESSURE
35642RING, CLUTCH HUB OIL SEAL
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
WD=5.5,CW=4.3
WD=6.0,CW=3.0
35650CWASHER, CLAW (FOR REAR MULTIPLE DISC CLUTCH)
35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35673DISC, REAR CLUTCH
T=2.25-2.35
NSK-WARNER
AISIN CHEMICAL
35673APLATE, REAR CLUTCH CUSHION
35674PLATE, REAR CLUTCH
NSK-WARNER
ASCO
35675FLANGE, REAR CLUTCH
T=4.0
35701SHAFT SUB-ASSY, INPUT
35706GEAR SUB-ASSY, PLANETARY SUN
35706ABEARING, NEEDLE ROLLER (FOR 2ND SUN GEAR)
20BTM2616
35706BKEY, WOODRUFF (FOR 2ND SUN GEAR)
35706CRING, O (FOR 2ND SUN GEAR)
35803STRUT SUB-ASSY, LOW BRAKE BAND APPLY
L=32
L=33
35810BAND ASSY, TRANSMISSION BRAKE (FOR FRONT)
35820BSPRING, COMPRESSION (FOR LOW SERVO PISTON INNER)
WD=3.2,CW=5
35820CWASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING)
35820DSPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN)
WD=2.6,CW=5.5
35821PISTON, LOW SERVO
35821CSPRING, LOW SERVO PISTON SPRING LOCK RETAINER
35821ERING, O (FOR SERVO PISTON TO SERVO PISTON CYLINDER)
35821FRING, O (FOR SERVO PISTON TO SERVO BODY)
35822ROD, LOW SERVO PISTON
35823RING, SERVO PISTON
35833LEVER, FRONT BRAKE BAND APPLY
35834BOLT, FRONT BRAKE BAND APPLY
35837ANCHOR, FRONT BRAKE BAND
35840SERVO ASSY, FRONT
35841BODY, FRONT SERVO
35841APIN (FOR FRONT SERVO BODY)
35841BPLUG, STRAIGHT (FOR FRONT SERVO BODY)
35842CYLINDER, FRONT SERVO PISTON
35843TUBE, FRONT SERVO APPLY
35844TUBE, FRONT SERVO RELEASE
9165140825
main91651-40825
9165140835
main91651-40835
9412041000
main94120-41000
60 parts on this diagram · 2 diagrams in section
