ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0005 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

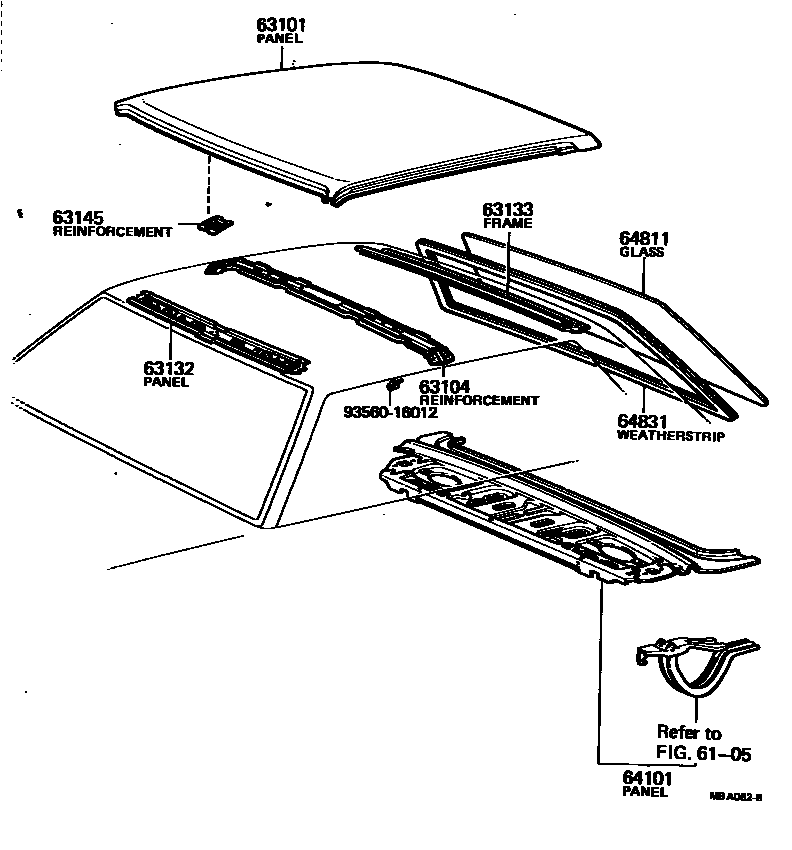

63101PANEL SUB-ASSY, ROOF

main63111-12120iAE71,CE70,KE70,TE7#..SED197908-198502

main63111-12150iKE70,TE71..CP197908-198305

main63111-12160iKE70,TE7#..LB197908-198406

main63111-12170iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)197908-198305

W/REMOVABLE ROOF

main63111-12180iKE70,TE71..CP198108-198305

W/REMOVABLE ROOF

main63111-13050iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA)198309-198707

main63111-13060iAE71,KE70..(DV,WG)..ARL198309-198410

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-13010iAE71,KE70..(DV,WG)..ARL198309-198410

main63141-12060iAE71,CE70,KE70,TE7#..SED197908-198502

main63141-12070iKE70,TE71..CP197908-198305

main63141-12080iKE70,TE7#..LB197908-198406

main63141-13030iCE70,KE70,TE71..DV,WG197908-198309

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12080iCE70,KE70,TE7#..DV,SED,WG197908-198309

main63132-12090iKE70,TE7#..CP,LB197908-198406

main63132-13010iAE71,KE70..(DV,WG)..ARL198309-198410

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-12010iKE70,TE71..CP..GEN197908-198305

main63105-12020iKE70,TE71..CP197908-198305

W/WIPER,DEFOGGER

main63105-12030iKE70,TE71..CP197908-198305

W/O WIPER,W/DEFOGGER

main63105-12050iKE70,TE71..LB..(GEN,SAA)197908-198406

main63105-12060iKE70,TE7#..LB..(EUR,GEN,SA)197908-198406

W/O WIPER,W/DEFOGGER

main63105-12070iKE70,TE7#..LB..(EUR,GEN,SA)197908-198406

W/WIPER,DEFOGGER

main63105-12080iTE72..ARL197908-198305

main63105-13010iAE71,KE70..2D..ARL198108-198410

main63105-13040iAE71,KE70..WG..ARL198108-198410

main63105-13050iAE71,CE70,KE70198506-198707

main63133-12100iAE71,CE70,KE70,TE7#..SED197908-198502

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-12020iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA)198309-198707

main63145-12030iKE70,TE7#..CP,LB197908-198406

main63145-13010iAE71,KE70..(DV,WG)..ARL198309-198410

64101PANEL SUB-ASSY, UPPER BACK

main64101-12160iKE70,TE7#..SED197908-198108

main64101-12220iCE70,KE70,TE7#..SED..(EUR,GEN,SA,SAA)198108-198502

64811GLASS, BACK WINDOW

main64801-12210iKE70..SED..STD..(ARL,EUR,SAA)197908-198410

*TEM,T=4.0,W/DEFOGGER

main64801-12220iKE70..SED..LHD..4F..4D;KE70..SED..4F..2D..EUG;KE70..SED..LHD..(3FC,5F);KE70..SED..RHD..(EUR,GEN);CE70,TE71..SED..(EUR,GEN)198210-198406

*TT,T=4.0,W/DEFOGGER

main64801-12270iKE70..SED..STD..EUG197908-198305

*TEM,T=4.0,W/HEAVY DEFOGGER

main64801-12280iCE70,KE70,TE71..SED..LHD..(DX,GL)..EUR197908-198305

*TT,T=4.0,W/HEAVY DEFOGGER

main64811-12450iKE70,TE71..SED..GEN197908-198406

*TEM,T=4.0

main64811-12460iKE70,TE71..SED..(DX,GL)..(GEN,SAA)197908-198210

*TT,T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12210iKE70,TE71..SED..STD197908-198502

main64812-12220iKE70,TE7#..SED..(GEN,SA)197908-198502

W/MOULDING

9356016012

main93560-16012

10 parts on this diagram · 4 diagrams in section
