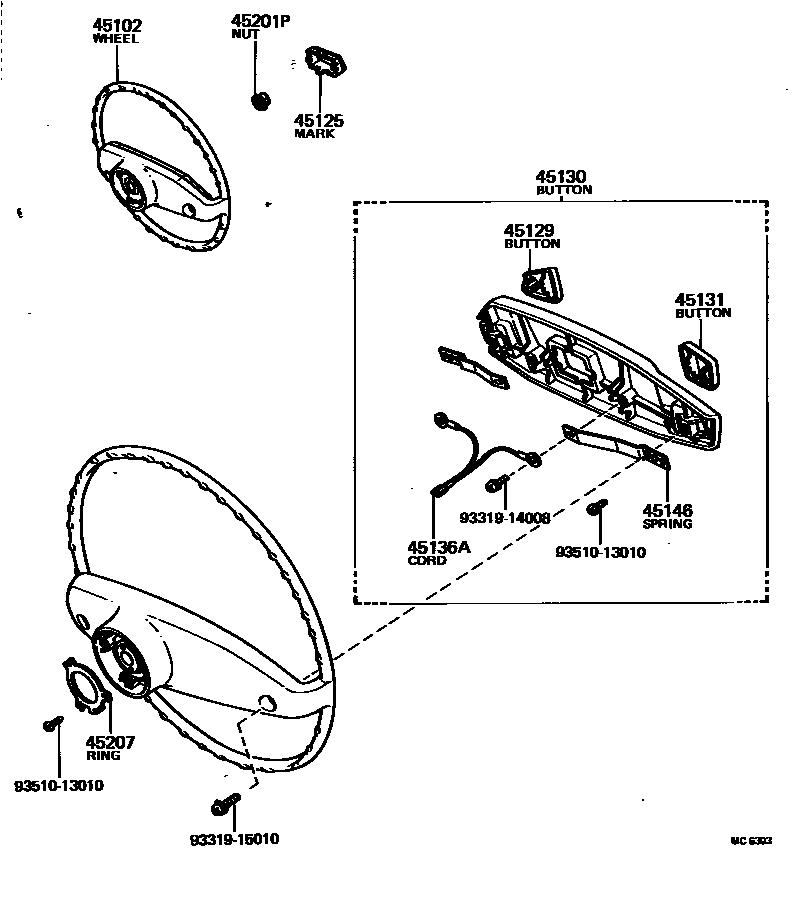

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
BLACK,W/RIGID STRG
BLACK,W/COLLAPSIBLE STRG
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#,4#,8#
BLUE,W/RIGID STRG,BLUE,TRIM8#
BEIGE,W/RIGID STRG,BEIGE,TRIM4#
main45100-12250-01iTE71..4F..4D..DX..GEN; TE72..RHD;TE71..GL,XE;TE71..LHD..(SE,SR);TE71..RHD..SR..GEN;TE71..RHD..2D..(EUR,SA)197908-198108
URETHANE,BLACK,BLACK,TRIM0#,2#,4#,8#
URETHANE,BLUE,BLUE,TRIM8#
URETHANE,BEIGE,BEIGE,TRIM4#
URETHANE,DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
main45100-12280-01iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..DX..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..DX..(GEN,SA)197908-198108
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#
main45100-12280-04iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..DX..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..DX..(GEN,SA)197908-198108
BLUE,W/COLLAPSIBLE STRG,BLUE,TRIM8#
BEIGE,W/COLLAPSIBLE STRG,BEIGE,TRIM4#
DARK BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,W/RIGID STRG
MAROON,W/RIGID STRG,RED/MAROON,TRIM3#
GRAY,W/RIGID STRG,GRAY,TRIM1#
BROWN,W/RIGID STRG,BROWN,TRIM4#
BLACK,W/COLLAPSIBLE STRG
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#,4#,8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#
BLUE,W/RIGID STRG,BLUE,TRIM8#
DARK BROWN,W/RIGID STRG,BROWN,TRIM4#
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#
MAROON,W/RIGID STRG,RED/MAROON,TRIM3#
GRAY,W/RIGID STRG,GRAY,TRIM1#
BROWN,W/RIGID STRG,BROWN,TRIM4#
BLACK,BLACK,TRIM0#,2#,4#,8#
BLUE,W/COLLAPSIBLE STRG,BLUE,TRIM8#
DARK BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,BLACK,TRIM0#,2#,4#,8#
MAROON,RED/MAROON,TRIM3#; MAROON,W/COLLAPSIBLE STRG,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#; GRAY,W/COLLAPSIBLE STRG,GRAY,TRIM1#
DARK BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#; BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
main45100-12350-01iTE7#..(GL,SE)..(ARL,SA); TE71..(DX,GL,SR,XE)..(EUR,GEN,SAA);CE70,KE70,TE72..(DX,GL,XL)..(EUR,GEN,SAA)198108-198305
URETHANE,BLACK,BLACK,TRIM0#,2#,4#,8#
URETHANE,BLUE,BLUE,TRIM8#
main45100-12350-06iTE7#..(GL,SE)..(ARL,SA); TE71..(DX,GL,SR,XE)..(EUR,GEN,SAA);CE70,KE70,TE72..(DX,GL,XL)..(EUR,GEN,SAA)198108-198305
URETHANE,DARK BROWN,BROWN,TRIM4#
URETHANE,BLACK,BLACK,TRIM0#,2#,4#,8#
URETHANE,MAROON,RED/MAROON,TRIM3#
URETHANE,GRAY,GRAY,TRIM1#
URETHANE,DARK BROWN,BROWN,TRIM4#
URETHANE,BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
45125MARK, STEERING WHEEL PAD
BLACK
main45125-12190-01iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
BLACK,BLACK,TRIM0#,2#; BLACK,BLACK,TRIM0#,2#,4#,8#
main45125-12190-04iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
main45125-12190-06iKE70,TE72..(CP,LB)..DX;TE71..2D..(DX,GT)..GEN;TE71..LHD..(DX,GT)..EUG197908-198108
DARK BROWN,BROWN,TRIM4#
main45125-12210-01iTE71..4F..4D..DX..GEN; TE72..RHD;TE71..GL,XE;TE71..LHD..(SE,SR);TE71..RHD..SR..GEN;TE71..RHD..2D..(EUR,SA)197908-198108
URETHANE WHEEL,BLACK,BLACK,TRIM0#,2#,4#,8#
URETHANE WHEEL,BLUE,BLUE,TRIM8#
URETHANE WHEEL,BEIGE,BEIGE,TRIM4#
URETHANE WHEEL,DARK BROWN,BROWN,TRIM4#
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#,4#,8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM0#,2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM0#,2#; BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#,4#,8#
DARK BROWN,BROWN,TRIM4#
URETHANE WHEEL,BLACK,BLACK,TRIM0#,2#
main45125-12320-04iTE71..(DX,GL,SR,XE)..(EUR,GEN,SAA);CE70,KE70,TE72..(DX,GL,XL)..(EUR,GEN,SAA); TE72..ARL198108-198305
URETHANE WHEEL,BLUE,BLUE,TRIM8#
URETHANE WHEEL,DARK BROWN,BROWN,TRIM4#
URETHANE WHEEL,BLACK,BLACK,TRIM0#,2#
DARK BROWN,BROWN,TRIM4#
BLACK,W/COLLAPSIBLE STRG
45129BUTTON, HORN, NO.2
W/RIGID STRG
W/COLLAPSIBLE STRG
main45131-12140iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
main45131-12150iTE71..4F..4D..DX..GEN; TE72..RHD;TE71..GL,XE;TE71..LHD..(SE,SR);TE71..RHD..SR..GEN;TE71..RHD..2D..(EUR,SA)197908-198108
URETHANE STRG WHEEL
main45131-12210iCE70,KE70..STD..EUG; KE70..5F..STD..SA;AE71,KE70,TE71..(DX,XL)..(GEN,SA)198305-198707
URETHANE STRG WHEEL
45130BUTTON ASSY, HORN
BLACK,W/RIGID STRG
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#,4#,8#; BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM2#
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#,4#,8#
BLUE,W/RIGID STRG,BLUE,TRIM8#
DARK BROWN,W/RIGID STRG,BROWN,TRIM4#
BEIGE,W/RIGID STRG,BEIGE,TRIM4#
BLACK,W/RIGID STRG,BLACK,TRIM0#,2#
MAROON,W/RIGID STRG,RED/MAROON,TRIM3#
GRAY,W/RIGID STRG,GRAY,TRIM1#
DARK BROWN,W/RIGID STRG,BROWN,TRIM4#
BROWN,W/RIGID STRG,BROWN,TRIM4#
main45130-12210-01iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#; BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM2#
main45130-12210-04iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
BLUE,W/COLLAPSIBLE STRG,BLUE,TRIM8#
BEIGE,W/COLLAPSIBLE STRG,BEIGE,TRIM4#
main45130-12210-06iKE70,TE72..(CP,LB)..DX;TE71..2D..(DX,GT)..GEN;TE71..LHD..(DX,GT)..EUG197908-198108
DARK BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#; BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM2#
BLUE,W/COLLAPSIBLE STRG,BLUE,TRIM8#
BEIGE,W/COLLAPSIBLE STRG,BEIGE,TRIM4#
DARK BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#
MAROON,RED/MAROON,TRIM3#; MAROON,W/COLLAPSIBLE STRG,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#; GRAY,W/COLLAPSIBLE STRG,GRAY,TRIM1#
DARK BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BROWN,BROWN,TRIM4#; BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
BLACK,W/RIGID STRG
MAROON,W/RIGID STRG,RED/MAROON,TRIM3#
GRAY,W/RIGID STRG,GRAY,TRIM1#
BROWN,W/RIGID STRG,BROWN,TRIM4#
BLACK
BLACK,W/COLLAPSIBLE STRG,BLACK,TRIM0#,2#,4#,8#
MAROON,RED/MAROON,TRIM3#
GRAY,W/COLLAPSIBLE STRG,GRAY,TRIM1#
BROWN,W/COLLAPSIBLE STRG,BROWN,TRIM4#
45131BUTTON, HORN, NO.1
W/RIGID STRG
W/COLLAPSIBLE STRG
main45129-12050iTE71..(DX,GL,SR,XE)..(EUR,GEN,SAA);CE70,KE70,TE72..(DX,GL,XL)..(EUR,GEN,SAA); TE71..LHD..XE;TE7#..(GL,SE,XE)..(ARL,GEN,SA)198108-198305
URETHANE STRG WHEEL
W/COLLAPSIBLE STRG
main45129-12110iCE70,KE70..STD..EUG; KE70..5F..STD..SA;AE71,KE70,TE71..(DX,XL)..(GEN,SA)198305-198707
URETHANE STRG WHEEL
45136PLATE, HORN BUTTON CONTACT
main45136-12090×2iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
main45136-12100×2iTE71..4F..4D..DX..GEN; TE72..RHD;TE71..GL,XE;TE71..LHD..(SE,SR);TE71..RHD..SR..GEN;TE71..RHD..2D..(EUR,SA)197908-198108
URETHANE STRG WHEEL
45136ACORD(FOR HORN CONTACT RING)
main90945-02042iKE70..4F..XL;TE71..(DX,GL,SR,XE)..(EUR,GEN,SAA);AE71,CE70,KE70,TE72..(DX,GL)..(EUR,GEN,SAA)198108-198707
URETHANE STRG WHEEL
45146SPRING, HORN BUTTON CONTACT
main45146-12060×2iKE70,TE71..WG..(DX,XL)..GEN; TE71..LHD..(DX,GT)..EUG;KE70,TE72..(CP,LB,SED)..DX;TE71..(CP,LB,SED)..(DX,GT)..(GEN,SA)197908-198108
main45146-12070×2iTE71..4F..4D..DX..GEN; TE72..RHD;TE71..GL,XE;TE71..LHD..(SE,SR);TE71..RHD..SR..GEN;TE71..RHD..2D..(EUR,SA)197908-198108
URETHANE STRG WHEEL
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
URETHANE STRG WHEEL
main45176-20030iAE71,KE70,TE71..(DX,XL)..(GEN,SA,SAA); CE70,KE70,TE71..STD..(EUR,GEN,SA,SAA)198108-198707
9331914008
main93319-14008
9331915010
main93319-15010
9351013010
main93510-13010
13 parts on this diagram · 7 diagrams in section
