Toyota 182310 — WINDSHIELD WASHER

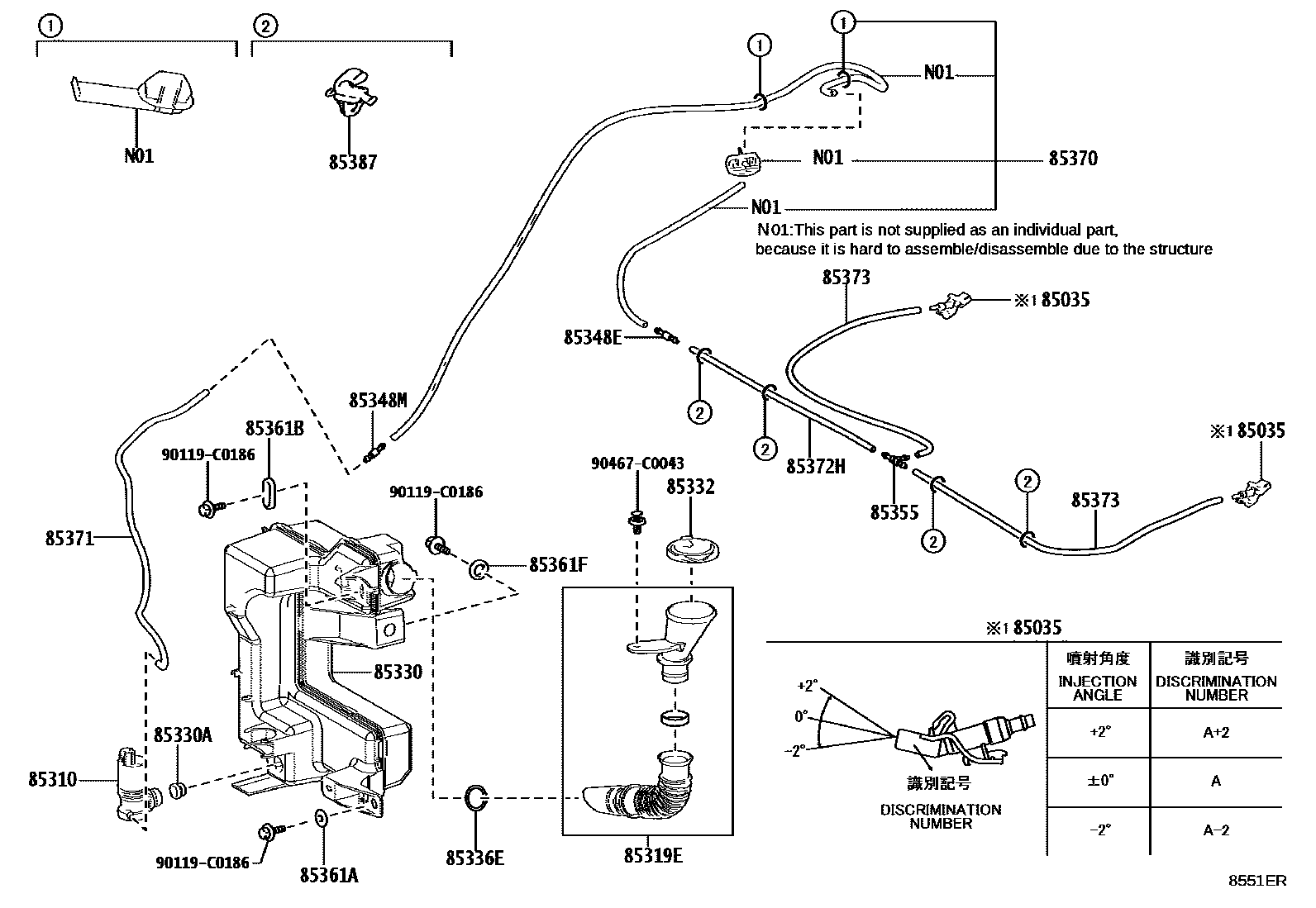

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85319EINLET WASHER

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

85336EPACKING, WINDSHIELD WASHER INLET HOSE

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

85355VALVE, WINDSHIELD WASHER HOSE

85361ABRACKET, WINDSHIELD WASHER, NO.1

85361BBRACKET, WINDSHIELD WASHER, NO.2

85361FBRACKET, WINDSHIELD WASHER, NO.3

85370HOSE ASSY, WINDSHIELD WASHER

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

90119C0186

90467C0043

20 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota 182310

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota 182310. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
