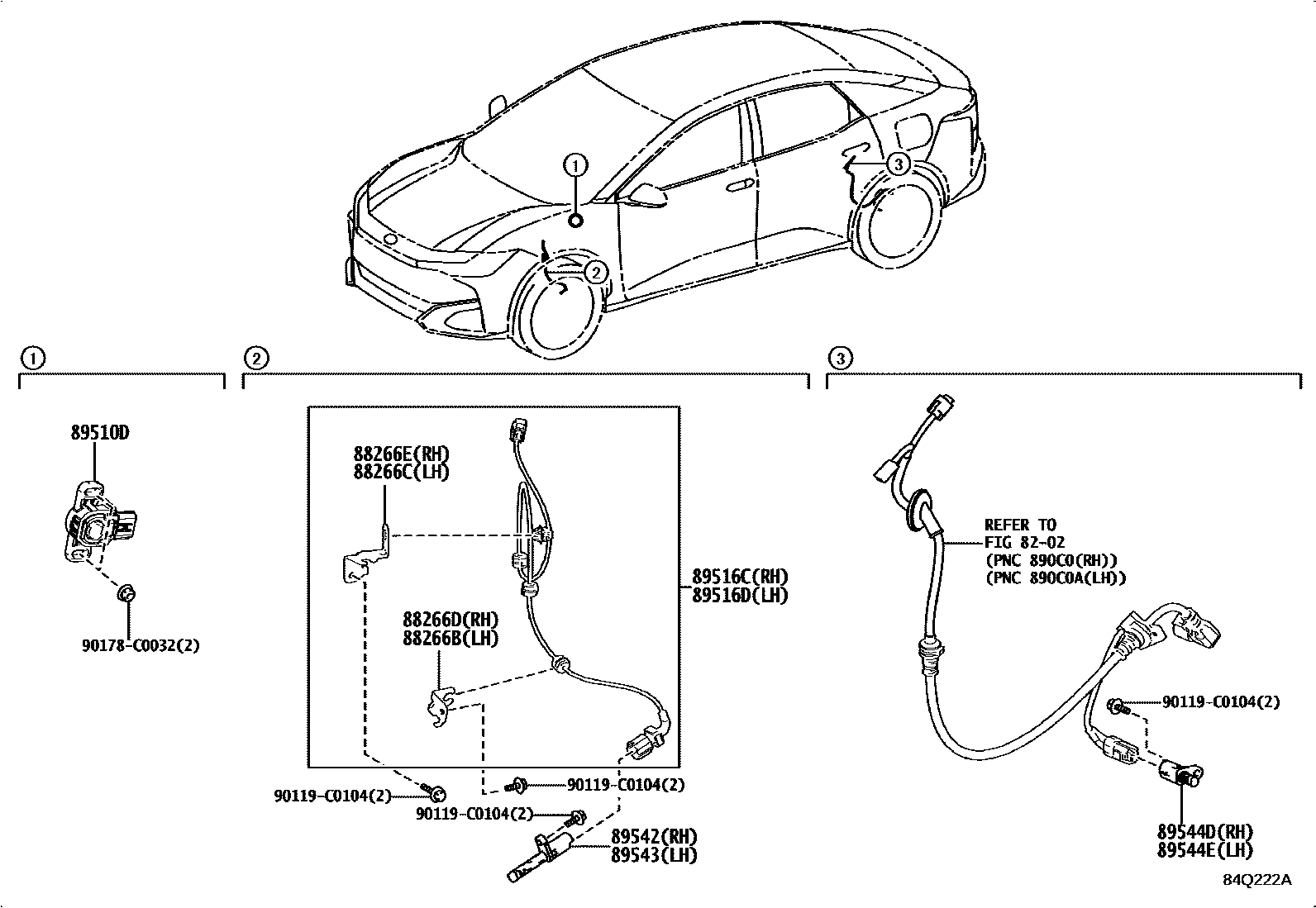

ABS & VSC

8202WIRING & CLAMP

→ Go to FIG 82-02

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-03010iBEJG10202407

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-03020iBEJG10202407

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-03030iBEJG10202407

88266ECLAMP, SKID CONTROL SENSOR, NO.4

main88266-03040iBEJG10202407

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-0R040iBEJG10202407

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-03020iBEJG10202407

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-03010iBEJG10202407

89542SENSOR, SPEED, FRONT RH

main8954B-03020iBEJG10202407

89543SENSOR, SPEED, FRONT LH

main8954B-03020iBEJG10202407

89544DSENSOR, SKID CONTROL, REAR RH

main89544-03010iBEJG10202407

89544ESENSOR, SKID CONTROL, REAR LH

main89544-03010iBEJG10202407

90119C0104

main90119-C0104

90178C0032

main90178-C0032

14 parts on this diagram · 1 diagram in section
