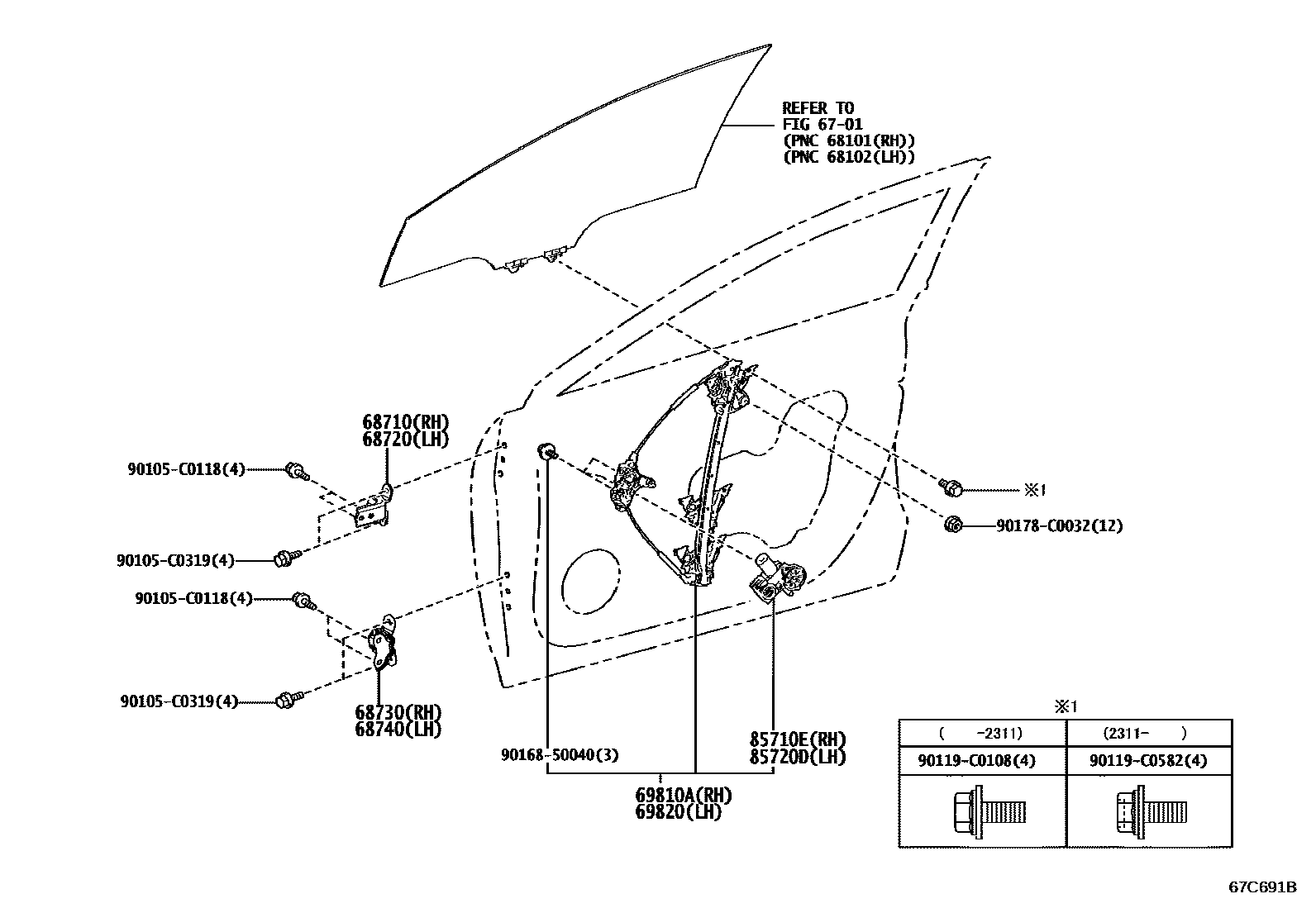

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iBEJG10202301

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iBEJG10202301

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iBEJG10202301

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iBEJG10202301

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-03030iBEJG10202301

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-03030iBEJG10202301

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-03030iBEJG10202301

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-03030iBEJG10202301

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90119C0108

main90119-C0108

90119C0582

main90119-C0582

9016850040

main90168-50040

90178C0032

main90178-C0032

15 parts on this diagram · 1 diagram in section
