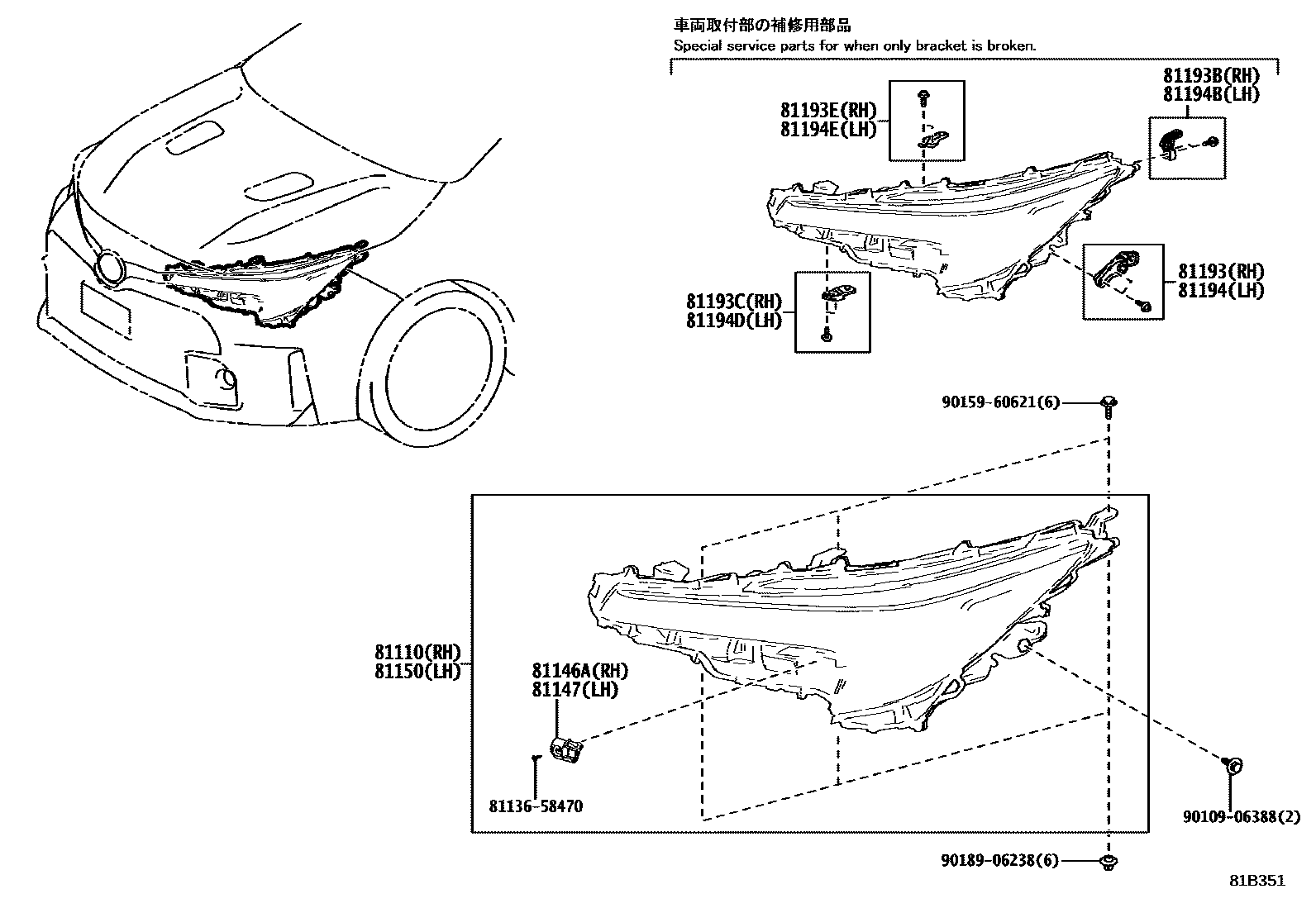

HEADLAMP

0001 1 0003 1

81110HEADLAMP ASSY, RH

main81110-12N20iGZEA14..GEN202210-202409

81146AFITTING, HEADLAMP, RH

main81146-12L00iGZEA14..GEN202210-202409

81147FITTING, HEADLAMP, LH

main81186-12L00iGZEA14..GEN202210-202409

81150HEADLAMP ASSY, LH

main81150-12N20iGZEA14..GEN202210-202409

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12250iGZEA14..05S202210-202409

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-12260iGZEA14202210-202409

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-12270iGZEA14202210-202409

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-12280iGZEA14202210-202409

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12250iGZEA14..05S202210-202409

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-12260iGZEA14202210-202409

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-12270iGZEA14202210-202409

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-12280iGZEA14202210-202409

8113658470PROTECTOR, HEADLAMP, NO.1 RH

main81136-58470

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

16 parts on this diagram · 2 diagrams in section
