5701HOLE PLUG

→ Go to FIG 57-01

6101SIDE MEMBER

→ Go to FIG 61-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D080i202304

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02G50supersedes 64401-02G40i201906-202007

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

main64401-02G51supersedes 64401-02G41i202007-202303

WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)

main64401-02J61i202304

main64401-02K80i202304

main64401-02G41i202304

VFM PACKAGE

main64401-02J60i201906-202007

AUDIO(OVERSEAS MARKET)-*DA(ACCESSORY) & 4SPEAKER; AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2i201906-202002

main90541-C0009×2i202304

(L)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02280i202304

main64461-02360i202304

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02280i202304

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02280i201906

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02440i202304

main64531-02660i201906

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02440i202304

main64532-02660i201906-202303

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2i202304

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02560i201906-202303

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02111i201906-202303

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06070i201906-202303

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64606-02170i201906-202303

main64606-02180supersedes 64606-02170i202304

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-0F010i201906

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506120

main90105-06120

9010506168

main90105-06168

90148C0006

main90148-C0006

9015960602

main90159-60602

90159C0028

main90159-C0028

90469C0006

main90469-C0006

9095901369

main90959-01369

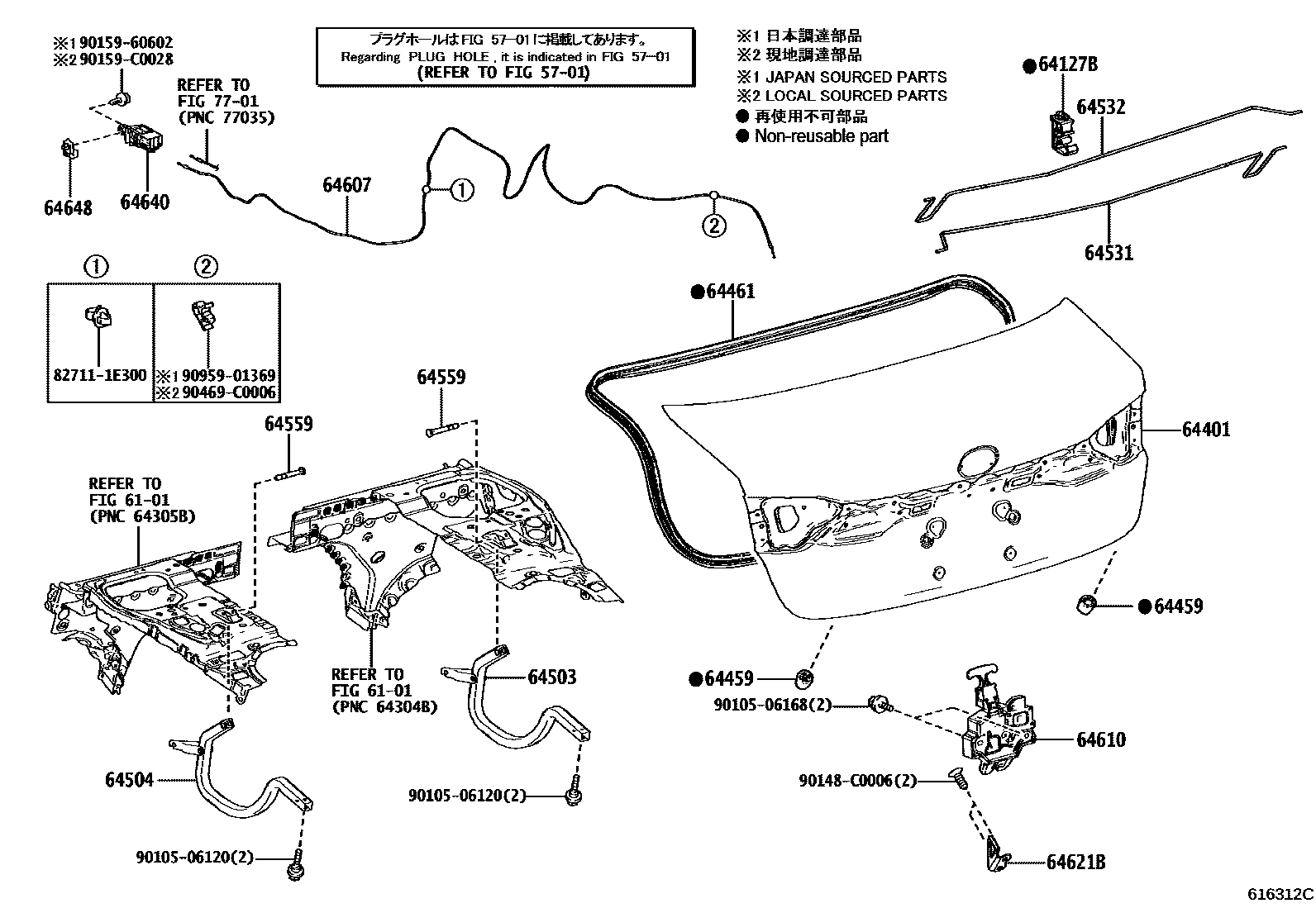

LUGGAGE COMPARTMENT DOOR & LOCK
