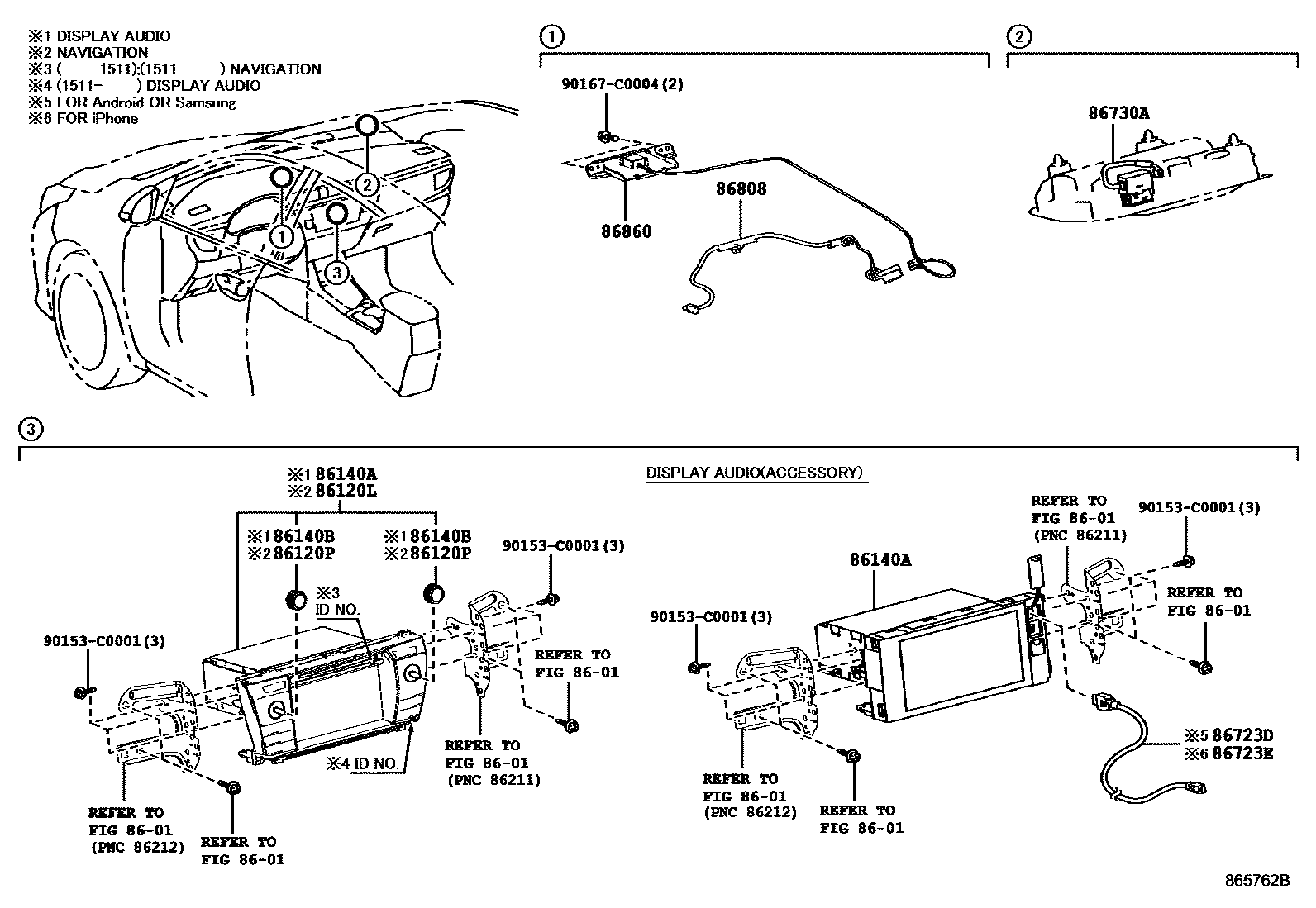

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

86120LRECEIVER ASSY, NAVIGATION

main86100-02180i201408-201509

PIONEER,ID=P10516

main86100-02181i201510-201609

PIONEER,ID=P10516

main86100-02182i201610-201706

PIONEER,ID=P10516

main86100-02200i201512-201609

PIONEER,ID=P11100

main86100-02201i201610-201706

PIONEER,ID=P11100

FUJITSU TEN,AUDIO-AVN(ACCESSORY) & 4SPEAKER; FUJITSU TEN,AUDIO-AVN(ACCESSORY) & 6SPEAKER

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90011-25250×2i201408-201706

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-02420i201512-201706

FUJITSU TEN,ID100588

main86140-YY010i201612-201706

FUJITSU TEN,R&D SEAT(FOR ACCESSORY)

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25240×2i201408-201706

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

86723DWIRE, MOBILEPHONE, NO.1

main86723-YY110i201511-201611

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

86723EWIRE, MOBILEPHONE, NO.2

main86723-YY130i201511-201706

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-06020i201408-201706

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

AUDIO-AVN(ACCESSORY) & 4SPEAKER; AUDIO-AVN(ACCESSORY) & 6SPEAKER

86860ANTENNA ASSY, NAVIGATION

AUDIO-AVN(ACCESSORY) & 4SPEAKER; AUDIO-AVN(ACCESSORY) & 6SPEAKER

90153C0001

90167C0004

12 parts on this diagram · 2 diagrams in section
