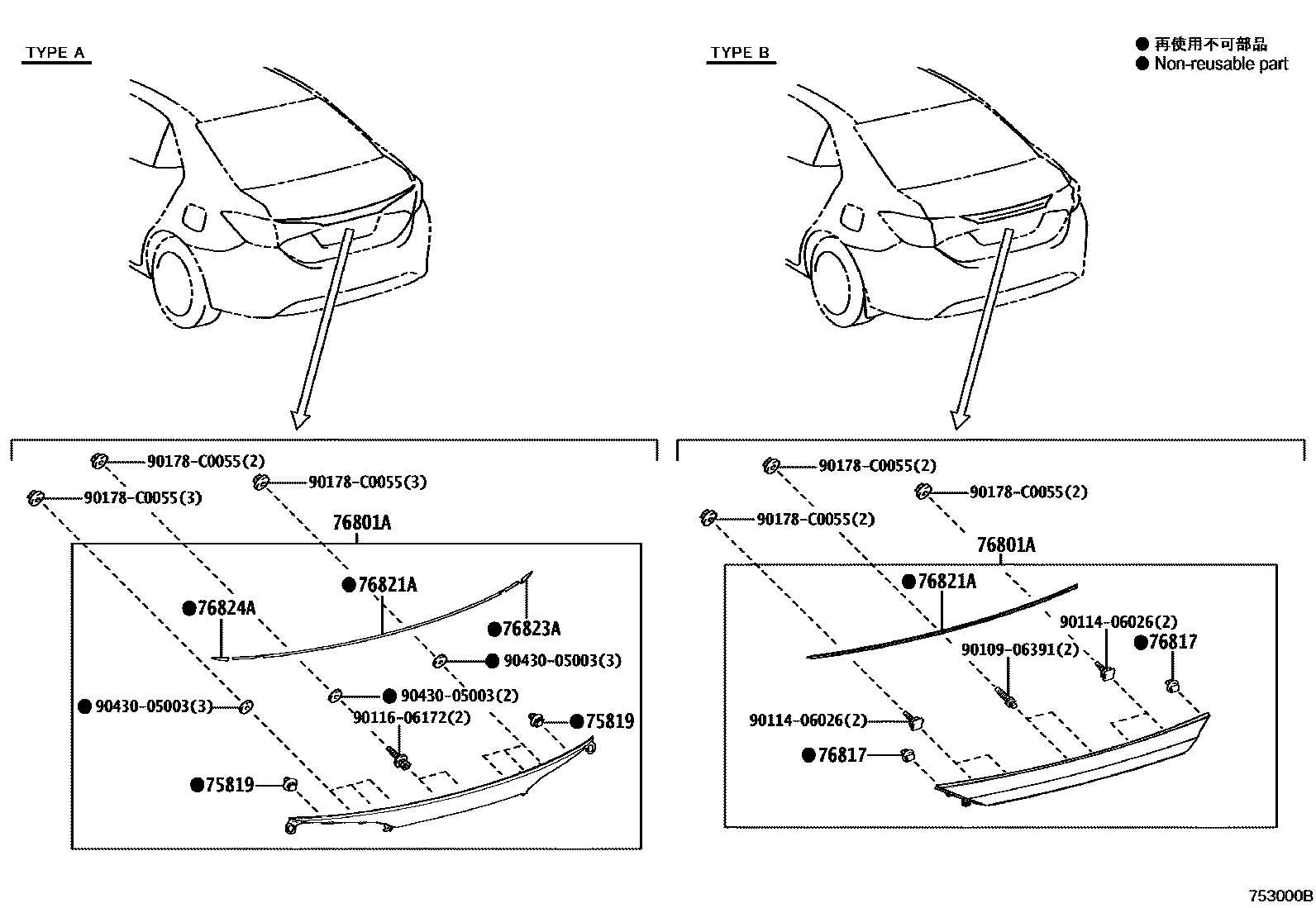

REAR MOULDING
75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
PLATED,TYPE A:REFER ILLUST.
PLATED,TYPE A:REFER ILLUST.
PLATED,TYPE B:REFER ILLUST.
PLATED,TYPE B:REFER ILLUST.
PLATED,TYPE B:REFER ILLUST.
PLATED,TYPE B:REFER ILLUST.
PLATED,LEATHER SEAT & 16INCH ALUMINUM WHEEL,TYPE B:REFER ILLUST.
PLATED,AUDIO-AVN(ACCESSORY) & 6SPEAKER,TYPE B:REFER ILLUST.; PLATED,LEATHER SEAT & 16INCH ALUMINUM WHEEL,TYPE B:REFER ILLUST.
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
9010906391
main90109-06391
9011406026
main90114-06026
9011606172
main90116-06172
90178C0055
main90178-C0055
9043005003
main90430-05003
11 parts on this diagram · 1 diagram in section
