64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D080i201706

main64127-33071i201408-201701

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02A80i201512-201706

main64401-02D30i201408-201411

main64401-02D31i201411-201706

main64401-02D40i201408-201411

main64401-02D41i201411-201706

main64401-02D70i201408-201411

main64401-02D71i201411-201706

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×4i201408-201611

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02240i201408-201611

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02200i201408-201503

main64503-02201i201503-201611

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02200i201408-201503

main64503-02201i201503-201611

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02360i201408-201503

main64531-02361i201503-201611

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02360i201408-201503

main64532-02361i201503-201611

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2i201408-201611

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02470i201408-201611

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02110i201408-201410

main64600-02111i201411-201611

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06070i201408-201611

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-02060×2i201408-201611

main67816-02061×2i201709

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506168

main90105-06168

90105C0219

main90105-C0219

90119C0337

main90119-C0337

90148C0006

main90148-C0006

90469C0006

main90469-C0006

9095001811

main90950-01811

9095901369

main90959-01369

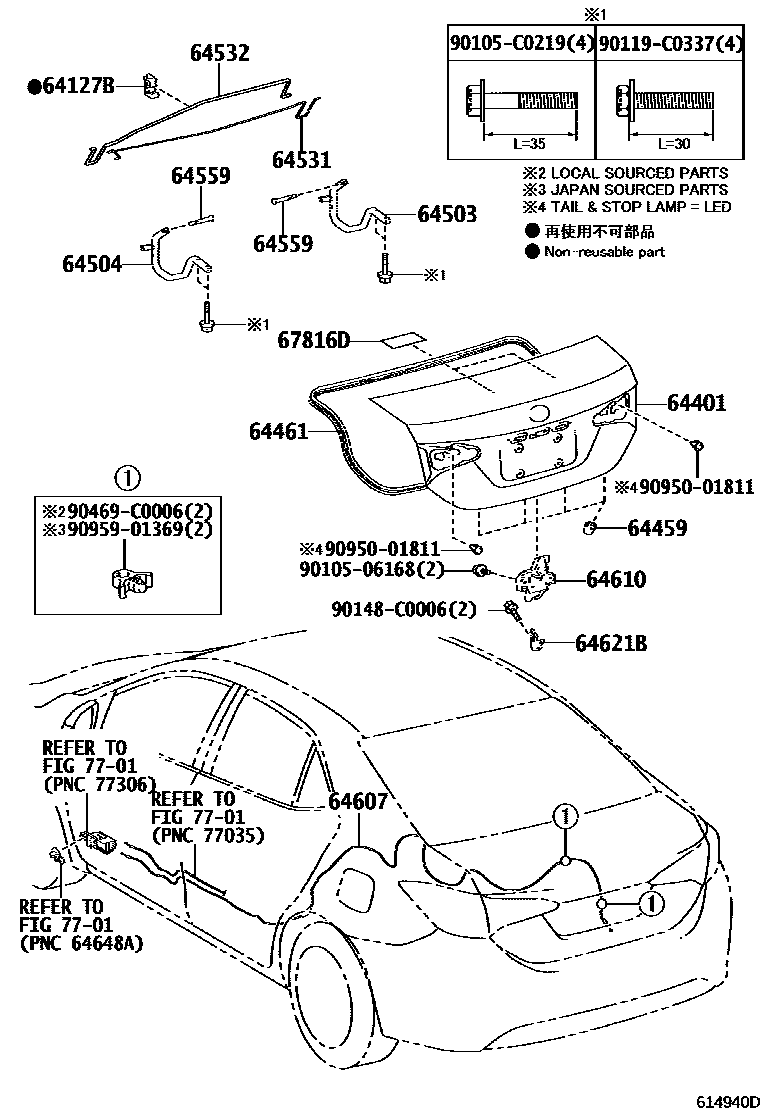

LUGGAGE COMPARTMENT DOOR & LOCK
