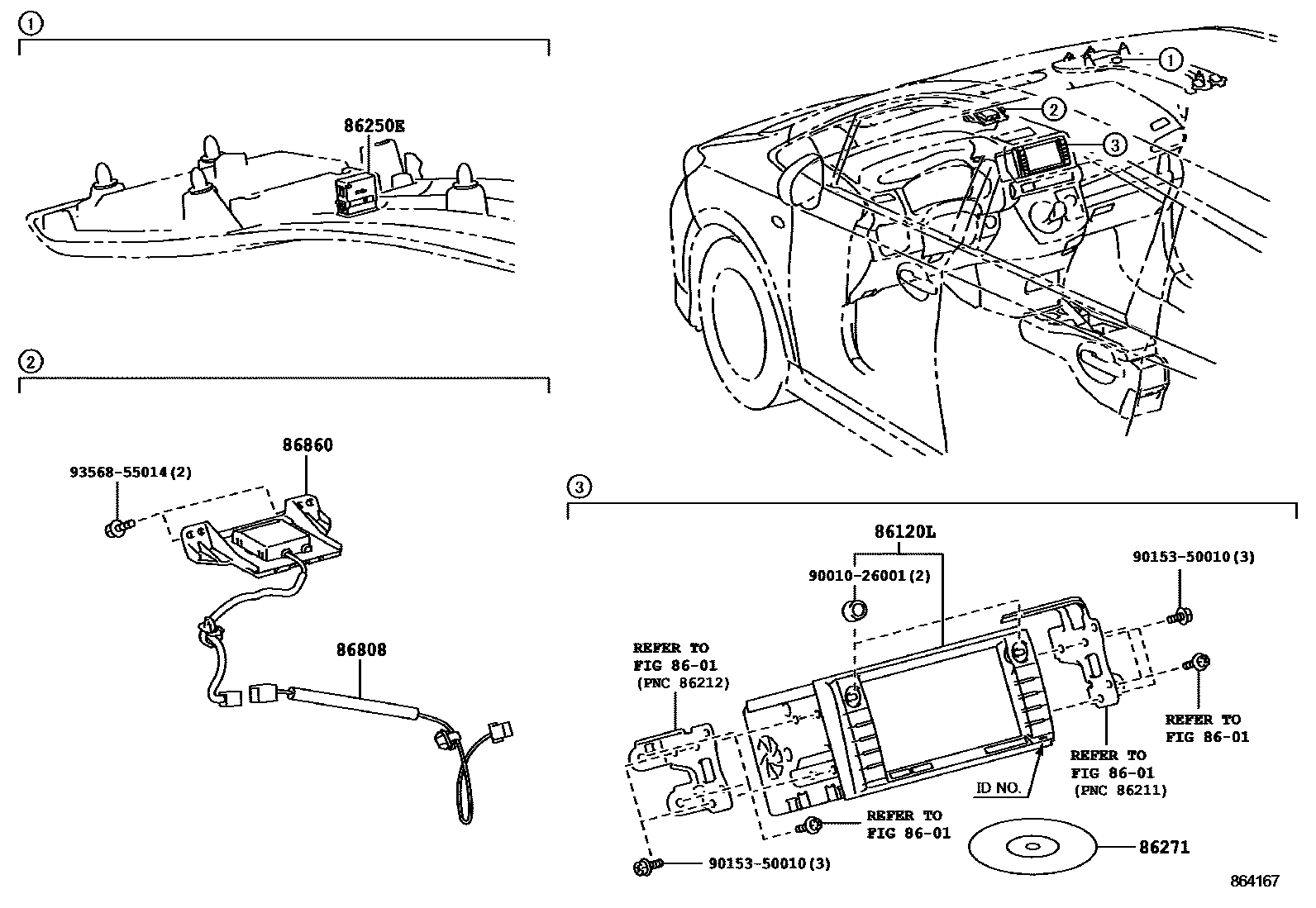

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-68110iZGE21..4FC..G200911-201112

DENSO,ID=E8018,2.0G-OPTION

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iZGE21..4FC..G200911-201112

2.0G-OPTION

86271DISC, DISC PLAYER

main86807-0W035iZGE21..4FC..G201009-201107

2.0G-OPTION

main86807-0W036iZGE21..4FC..G201108-201112

2.0G-OPTION

main86807-0W071iZGE21..4FC..G200911-201008

2.0G-OPTION

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-68010iZGE21..4FC..G200911-201112

2.0G-OPTION

86860ANTENNA ASSY, NAVIGATION

main86860-68020iZGE21..4FC..G200911-201112

2.0G-OPTION

9001026001

main90010-26001

9015350010

main90153-50010

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
