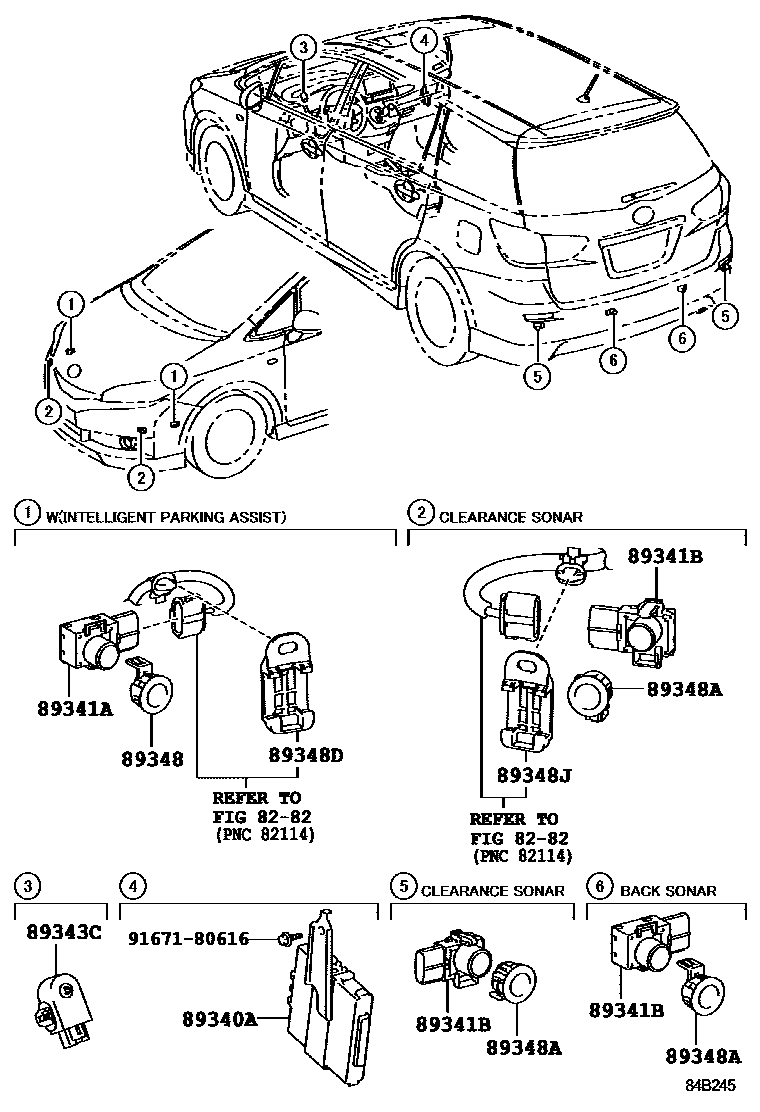

CLEARANCE & BACK SONAR

0001 1 0002 1

8282

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-68041iZGE21200911-201212

main89340-68050iZGE21201212-201402

main89340-68060iZGE21201402

main89340-68031iZGE21..G200911-201112

2.0G-OPTION

89341ASENSOR, ULTRASONIC, NO.1

main89341-68080-A0×2iZGE21..G200911-201112

2.0G-OPTION,WHITE PEARL CS.,040

main89341-68080-B0×2iZGE21..G200911-201112

2.0G-OPTION,SILVER ME.,1F7

main89341-68080-C0×2iZGE21..G200911-201112

2.0G-OPTION,DUMMY-MAT BLACK,1G3 ,209 ,8T7 ,9AH

89341BSENSOR, ULTRASONIC, NO.2

main89341-12100-A1×2iZGE21201402-201606

SUPER WHITE 2,040

main89341-12100-B3×2iZGE21201402-201606

GRAY ME.,1G3

main89341-12100-B4×2iZGE21201402-201606

SILVER ME.,1F7

main89341-12100-C0×2iZGE21201402-201606

BLACK MC.,209

main89341-12100-E3×2iZGE21201402-201606

ORANGE ME.,4R8

main89341-33190-B0×2iZGE21201212-201402

SILVER ME.,1F7

main89341-68070-A0×2iZGE21200911-201212

WHITE PEARL CS.,040

main89341-68070-B0×2iZGE21200911-201212

SILVER ME.,1F7

main89341-68070-C0×2iZGE21200911-201212

DUMMY-MAT BLACK,1G3 ,209 ,8T7 ,9AH

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iZGE21200911-201212

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33030-A0×2iZGE21..G200911-201112

2.0G-OPTION,WHITE PEARL CS.,040

main89348-33030-B3×2iZGE21..G200911-201112

2.0G-OPTION,SILVER ME.,1F7

main89348-33030-C0×2iZGE21..G200911-201112

2.0G-OPTION,DUMMY-MAT BLACK,1G3 ,209 ,8T7 ,9AH

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33080-A0×2iZGE21200911-201212

WHITE PEARL CS.,040

main89348-33080-B3×2iZGE21200911-201212

SILVER ME.,1F7

main89348-33080-C0×2iZGE21200911-201212

DUMMY-MAT BLACK,1G3 ,209 ,8T7 ,9AH

main89348-33100-B0×2iZGE21201212-201402

SILVER ME.,1F7

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2iZGE21..G200911-201112

2.0G-OPTION

89348JCLIP, ULTRASONIC SENSOR

main89348-33090×2iZGE21..G200911-201112

2.0G-OPTION

9167180616

main91671-80616

10 parts on this diagram · 2 diagrams in section
