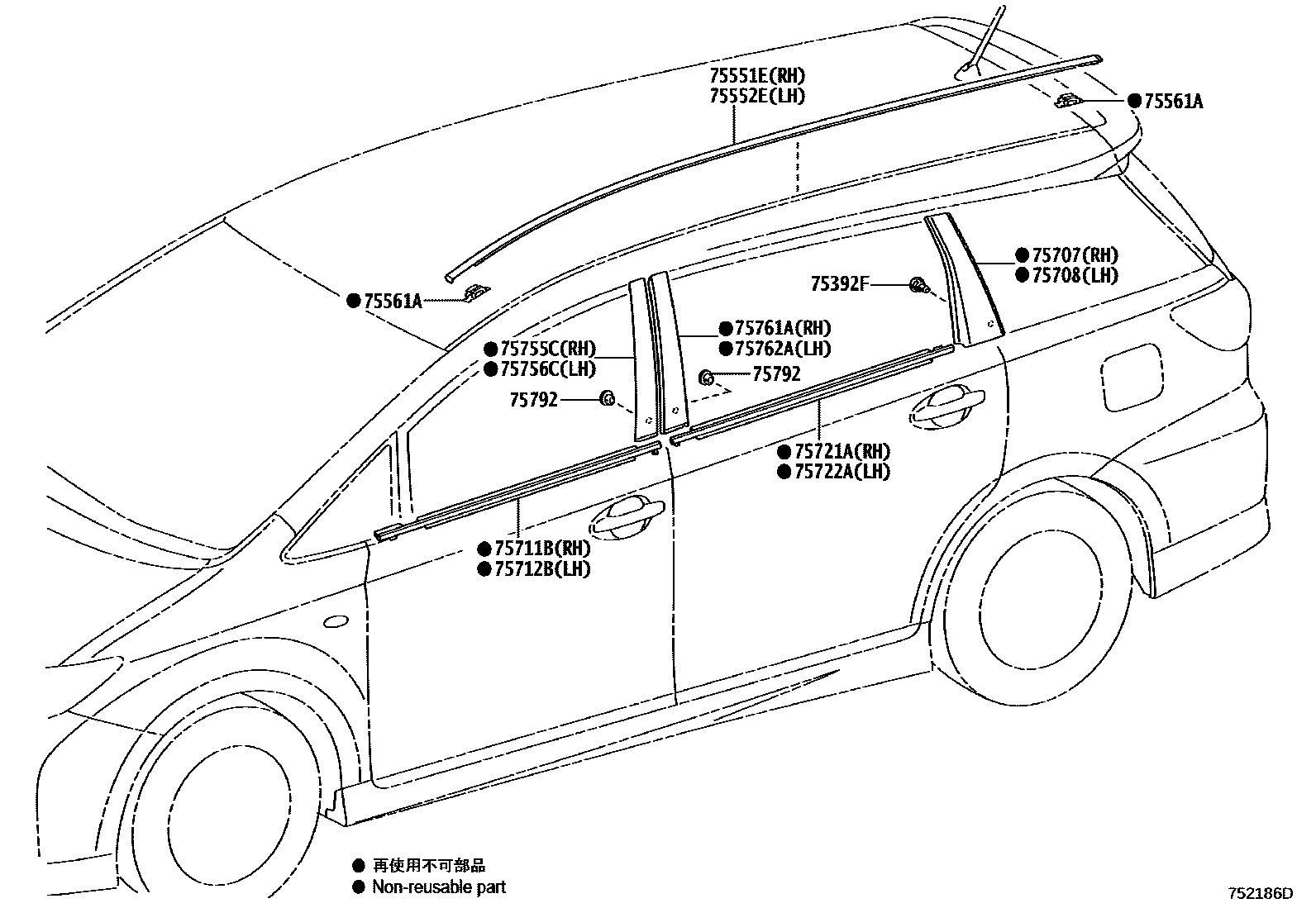

SIDE MOULDING

75392FRETAINER, OUTSIDE MOULDING

main75392-68030iZGE21200911-201212

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0M020iZGE21200911-201212

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0M020iZGE21200911-201212

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iZGE21200911-201212

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-0M020iZGE21200911-201208

main75707-0M021iZGE21201209-201212

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-0M020iZGE21200911-201208

main75708-0M021iZGE21201209-201212

75711BMOULDING, FRONT DOOR BELT, RH

main75711-0M010iZGE21200911-201212

75712BMOULDING, FRONT DOOR BELT, LH

main75712-0M010iZGE21200911-201212

75721AMOULDING, REAR DOOR BELT, RH

main75721-0M010iZGE21200911-201212

75722AMOULDING, REAR DOOR BELT, LH

main75722-0M010iZGE21200911-201212

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-0M010iZGE21200911-201212

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-0M010iZGE21200911-201212

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75075-0M010iZGE21200911-201606

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75076-0M010iZGE21200911-201606

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iZGE21200911-201212

15 parts on this diagram · 1 diagram in section
