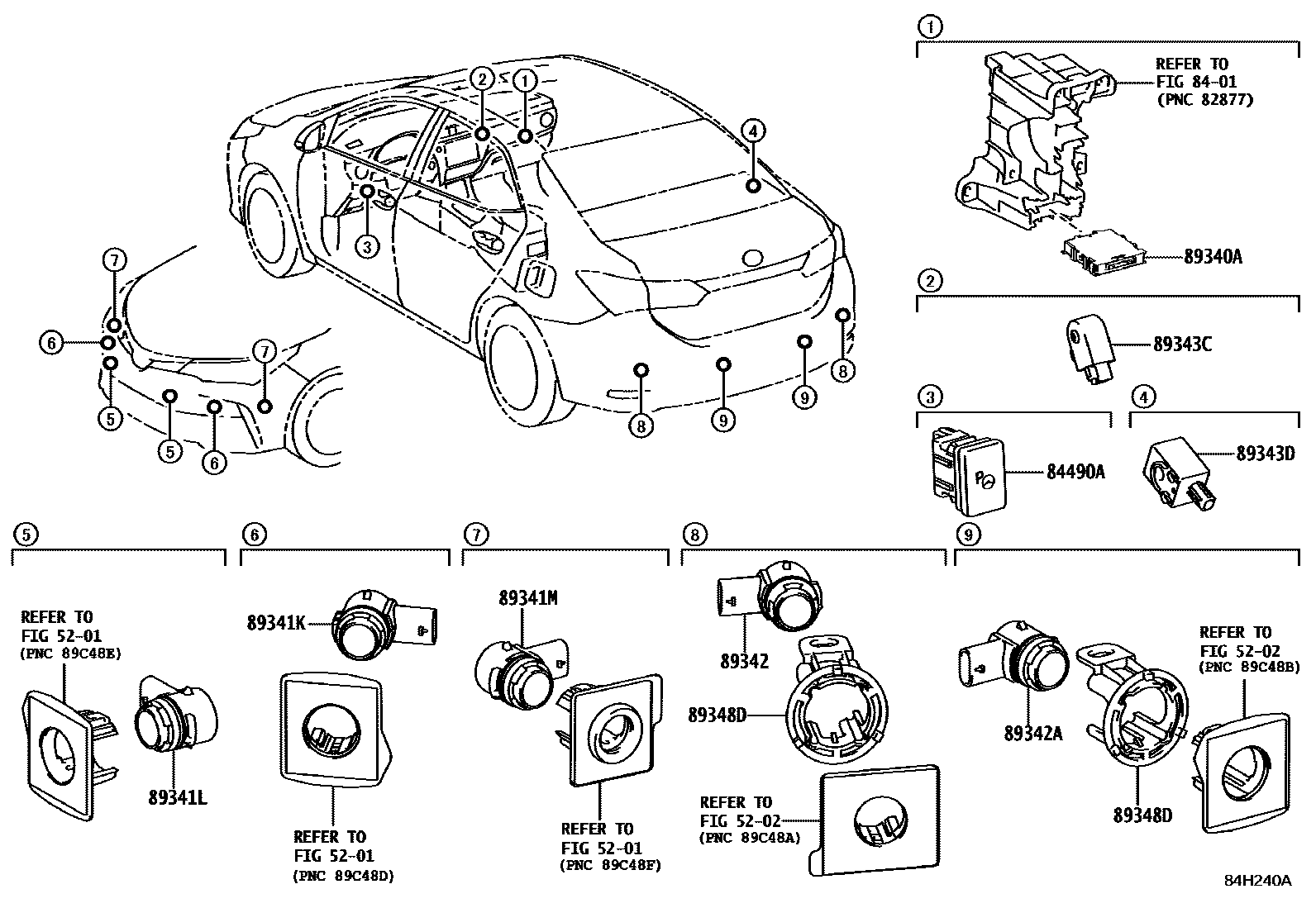

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89341MSENSOR, ULTRASONIC, FRONT SIDE

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-F4020

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89343DBUZZER, CLEARANCE WARNING, NO.2

89348DCLIP, ULTRASONIC SENSOR

13 parts on this diagram · 1 diagram in section
