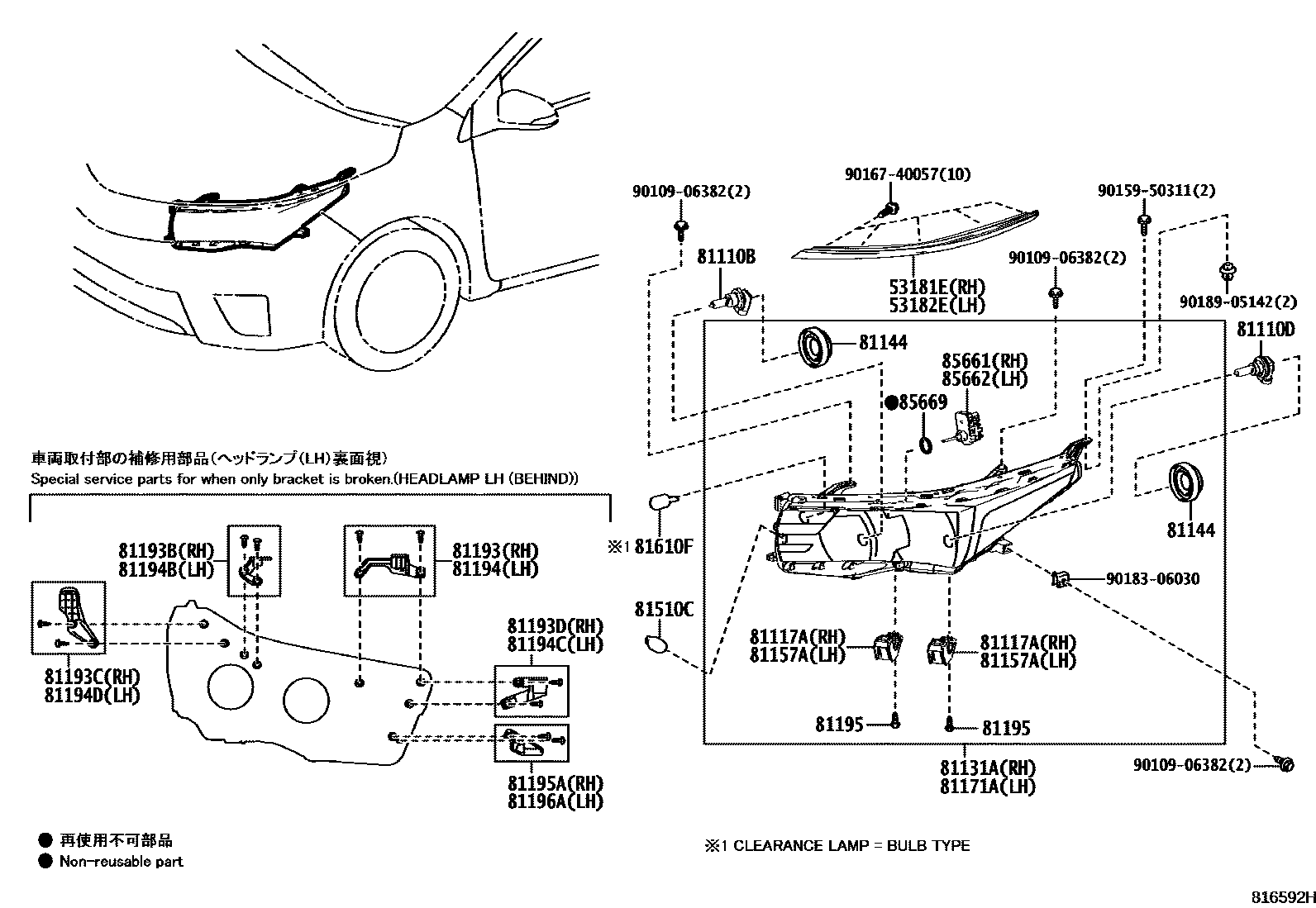

HEADLAMP
53181ECOVER, HEADLAMP, RH
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
53182ECOVER, HEADLAMP, LH
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81117ABRACKET, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
DAYTIME RUNNING LIGHT SYSTEM-WITH(LED)
81144COVER, HEADLAMP, NO.1
81157ABRACKET, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
DAYTIME RUNNING LIGHT SYSTEM-WITH(LED)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195SCREW, HEADLAMP
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010906382
main90109-06382
9015950311
main90159-50311
9016740057
main90167-40057
9018306030
main90183-06030
9018905142
main90189-05142
31 parts on this diagram · 3 diagrams in section
