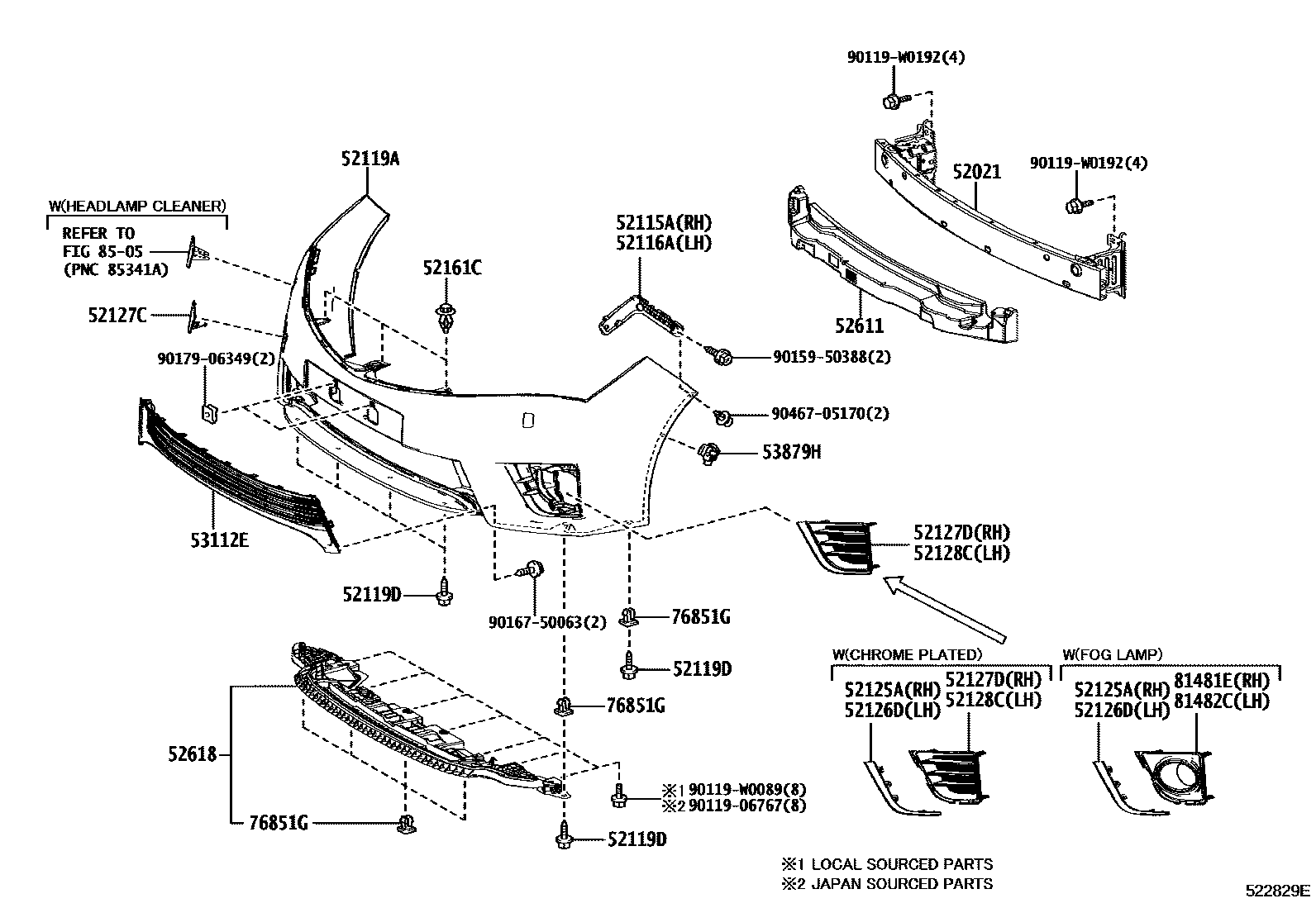

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
52126DBRACKET, FOG LAMP MOUNTING, LH
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
52128CCOVER, FRONT BUMPER HOLE, LH
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
OXIDE BRONZE ME.,6X1
BLUE ME.,8N0
52161CPIECE, FRONT BUMPER
(L)
(J)
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53879HRETAINER, FRONT FENDER LINER
76851GGROMMET, SCREW, NO.1
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
8505HEADLAMP CLEANER
9011906767
main90119-06767
90119W0089
main90119-W0089
90119W0192
main90119-W0192
9015950388
main90159-50388
9016750063
main90167-50063
9017906349
main90179-06349
9046705170
main90467-05170
26 parts on this diagram · 3 diagrams in section
