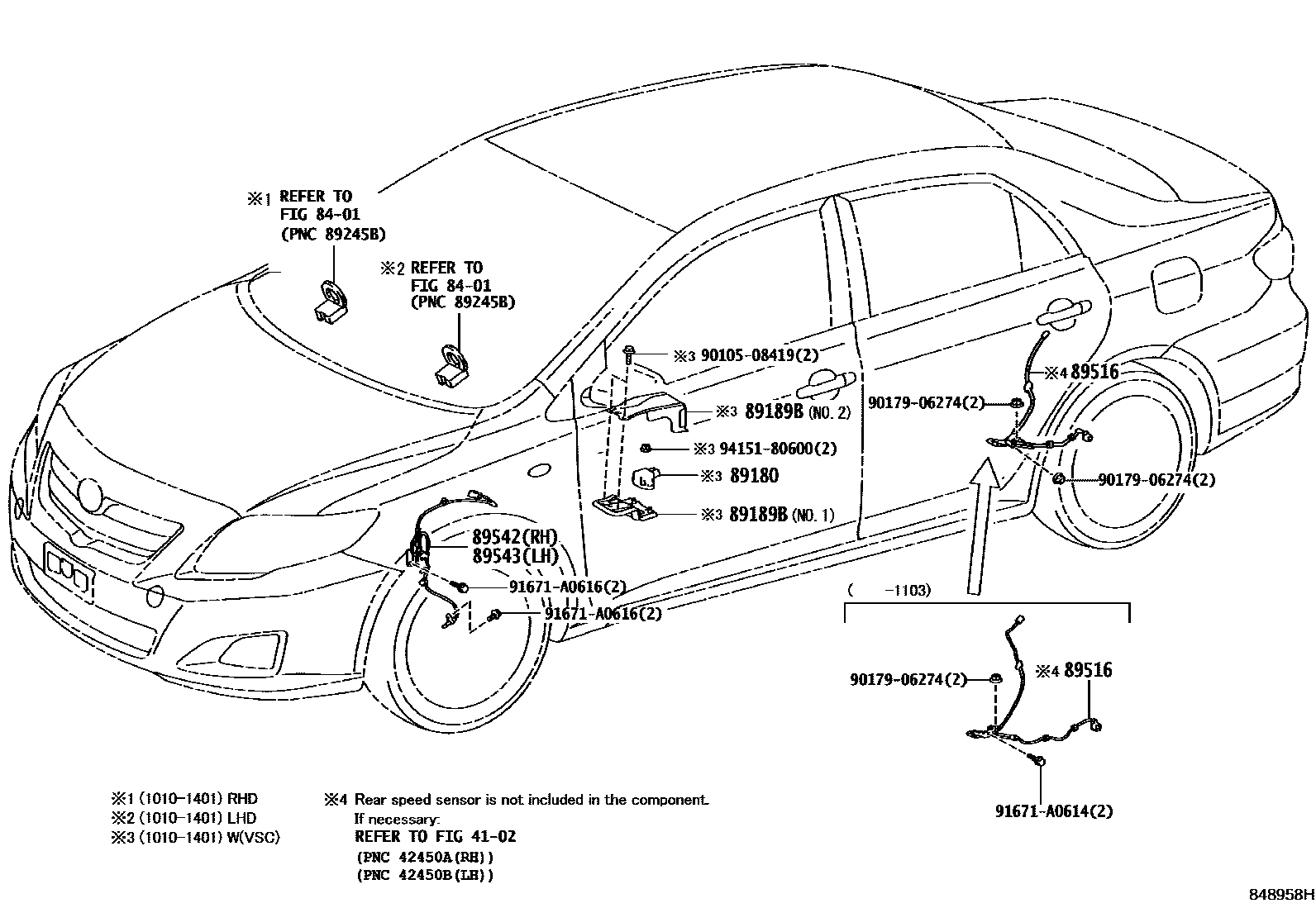

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89180SENSOR ASSY, YAWRATE

main89183-02030iZRE153201010-201401

VSC-WITH

89189BBRACKET, YAWRATE SENSOR

main89189-02050iZRE153201010-201401

VSC-WITH,NO.1

main89189-02060iZRE153201010-201401

VSC-WITH,NO.2

89516WIRE, SKID CONTROL SENSOR

main89516-02071iADE150,NDE150,NRE150,ZRE15#200910-201006

RH

main89516-02081iADE150,NDE150,NRE150,ZRE15#201006-201103

LH

main89516-02170iZRE151201404

RH

main89516-02180iNDE150..6FS201103-201204

LH

main89516-02190iADE150,NDE150,NRE150,ZRE15#200902-200909

RH

main89516-02200iADE150200707-200903

LH

89542SENSOR, SPEED, FRONT RH

main89542-02120iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

89543SENSOR, SPEED, FRONT LH

main89543-02120iNDE150,ZRE15#,ZZE150200707-200902

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
