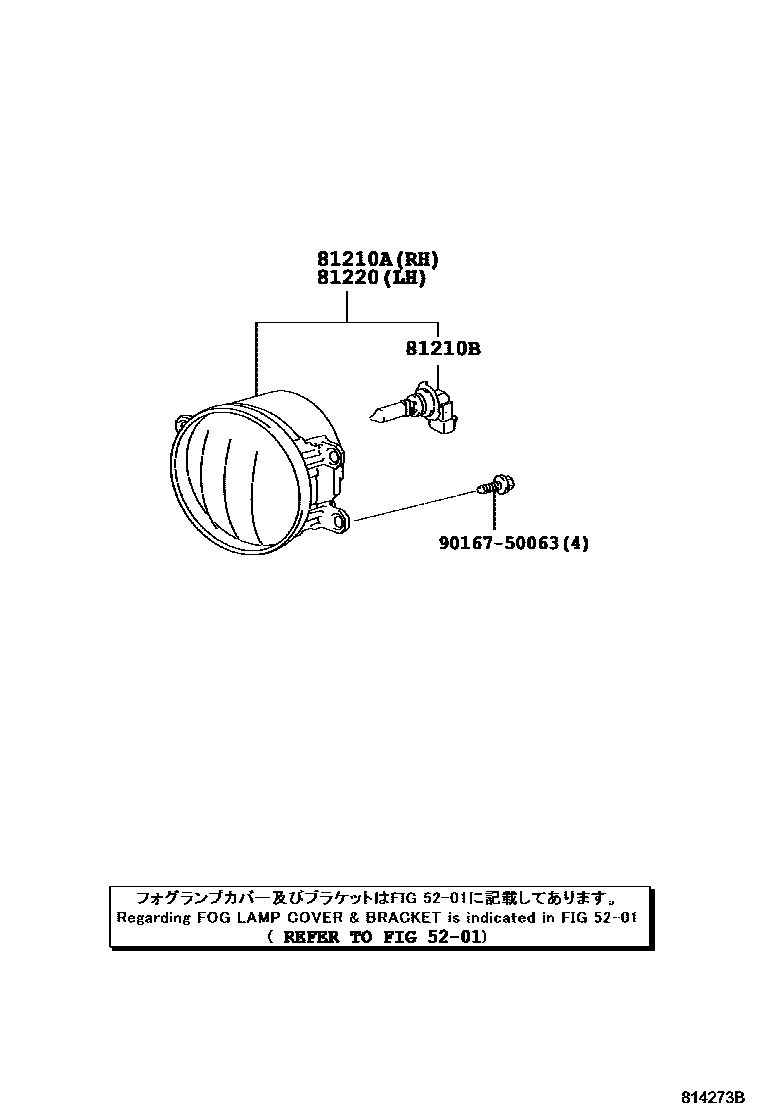

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

FOG LAMP-WITH

main81210-0D042iADE150,NDE150,NRE150,ZRE15#201005-201006

FRONT FOG LAMP-WITH

81210BBULB, FOG LAMP

main90981-13075×2iNDE150..6F201006-201304

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,PHILIPS

main90981-13081×2iNRE150..SA201006-201208

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D041iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

FOG LAMP-WITH

main81220-0D042iADE150,NDE150,NRE150,ZRE15#201005-201006

FRONT FOG LAMP-WITH

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
